Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | ET-46BLD |
|---|---|---|---|
| Application: | SMD Production Line | Board Loading: | Approx 10 Sec |
| Condition: | New | Weight: | 200kg |
| Dimension: | L600*W650*H1200 Mm | Process Height: | 900 ± 20 Mm |
| High Light: | LED Lights SMT Loader Machine,Stepper motor SMT Loader Machine,mechanical PCB Automatic Stacking Machine |
||

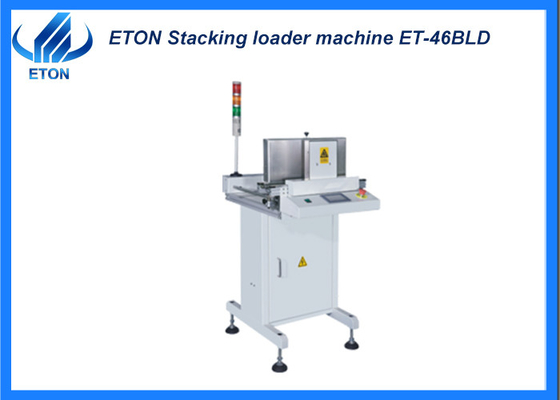

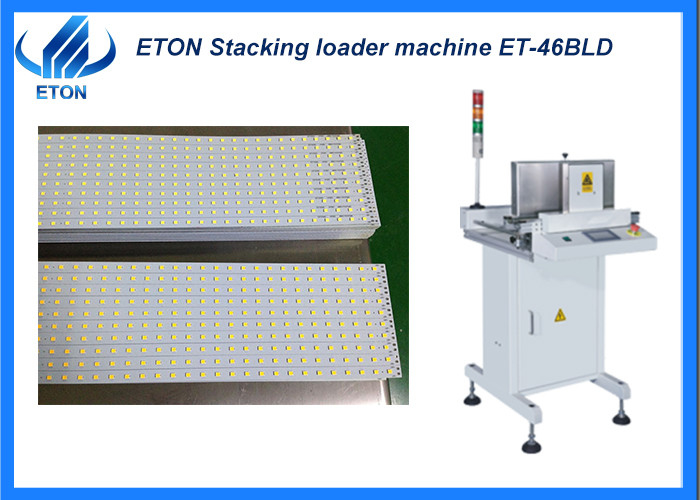

L600*W650*H1200 mm LED light SMT PCB stacking loader machine
Description
| Model | ET-46BLD |
| Dimension | L600*W650*H1200 mm |
| Board Size | 50*50-530*460 mm |
| Board loading | Approx 10 sec |
| Process height | 900 ± 20 mm |
| Flow direction | L→R or R→L |
| Board thickness | Min 0.6mm |
| Step distance | 20 mm or Customized |
| Board capacity | Customized |
| Weight | 200kg |
| Power requirement | 400pcs |
| Air requirement | 0.4-0.6 Mpa;Max 30L/min |
Features:
Our Exhibitions
Eton has participated in many exhibitions of foreign countries , such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc and trading with more than 30 countries. Furthermore, we have took part in our domestic large exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.
Packages
Our package step is follow the blowing:
STEP 1: Film packaging to prevent the dust and water;
STEP 2: Packing in a foam cotton stretch a film to protect the outside of the machine;
STEP 3: Vacuum paper package and moisture proof bag, to keep dry during the transportation;
STEP 4: Equip with sturdy wooden boxes to ensure the safety of the machine, then transportation by trucks to the specified port.
Delivery: by sea, air, land transport.
Service
Pre-sale service
Provide suitable production plan
Advise on plant electrical equipment and layout
Sale service
Report machine status in time
Follow up and send test machine video
After-sales service
Software lifetime upgrade
24 hours to deal with problems online
Engineers can arrive on site to teach operation and debug the machine
Regular visit (one year warranty period, spare parts repair free; Once or twice a year after warranty)
FAQ
Q. Is the machine easy to operate?
A. Yes, our machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
Q. Can you accept CIF as the quoted price?
A. We only accept EXW as the quoted price for it is convenient and lower cost for both sides.
Q. How many products can your machine make per day?
A. The capacity of our machine is according to the real products, and the number of components on your PCB board that is important factor to figure out the actual speed of our machine with your products.
