Product Details:
Payment & Shipping Terms:
|
| Name: | Stencil Printer | Brand: | ETON |
|---|---|---|---|
| Model: | ET-5235 | Dimension: | 1240*1450*1650MM |
| Weight: | Approx: 700KG | Product Changeover: | <5min |
| High Light: | LED Tube Automatic Stencil Printer,Lighting Tube SMT Stencil Printer,programmable SMT Stencil Printer |
||

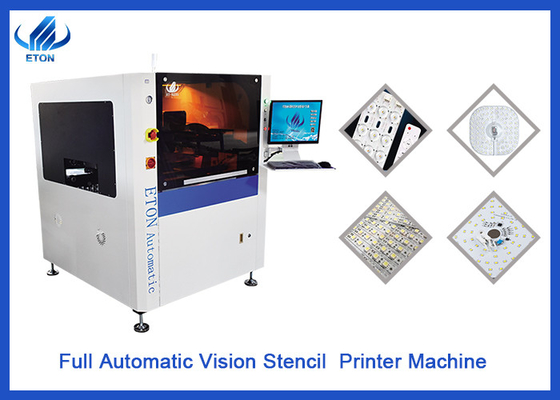

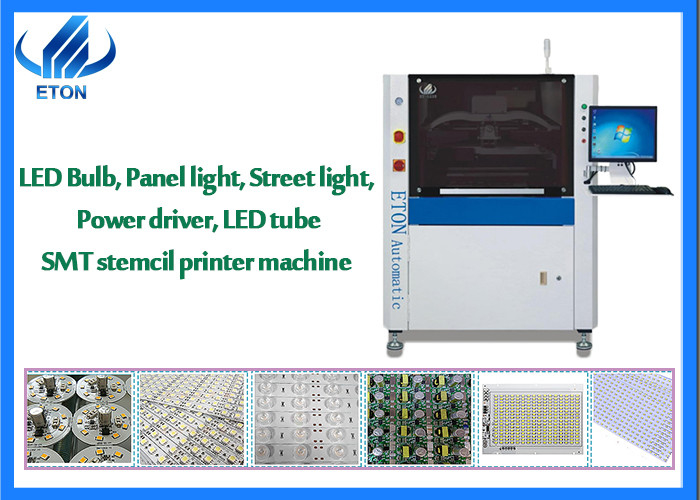

full automatic stencil printer for led lighting tube and bulb with high printing quality
The features
The technical parameter
| model | ET-5235 | |
| Dimension | 1240*1450*1650MM | |
| weight | Approx: 700KG | |
| Screen frames | Max size | 737mm |
| Min size | 470mm | |
| thickness | 25-40mm | |
| PCB size | Max: 520*350mm, min: 50*50mm | |
| PCB thickness | 0.6-6mm | |
| Transport height | 900±20mm | |
| Transport direction | Left-right, right-left, left-left,right-right | |
| Transport speed | Max 1200mm/s programmable | |
| Board location | Support system | Magnetic pin / up-down table adjusted by manual |
| Clamping system | Unique top flattened, side clamping | |
| Print head | Two independent direct connect motor driven print heads | |
| Squeegee pressure | 0-10kg/cm2 | |
| Squeegee angle | 55°(standard) | |
| Squeegee type | Steel scraper(standard), PV scraper( option) | |
| Stencil separation speed | 0.1-20mm/sec programmable | |
| Cleaning system | Dry, wet, vacuum (programmable) | |
| Printing accuracy | ±0.025MM | |
| Cycle time | ≦9s(exclude printing& cleaning) | |
| Product changeover | <5min | |
Company advantages
Since set up in 2011, ETON has more than 12 years experience. In 2020, intelligent industrial park in Jiangxi Province has set up. Also has more than 500 employees and 50 R&D team.
In 2022, ETON has developed highest mounting speed machine, the Optimal capacity can reach 500000CPH. And newest series-Honor series, the min component can mount 0201.
ETON has SMT high speed pick and place machine division, precision solder paste stencil printer division, high speed precision dispensing equipment division, and smt peripheral automation equipment division.
Related machine
We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
FAQ
1. What’s the terms of payment?
T/T is OK. You can choose FOB Shenzhen.
2. Why you choose ETON?
ETON has more than 11 years experience. ETON is in the leading position in the field of pick and place machine and commit to continuously providing the market with products and services that are “ more intelligent, more professional, more efficient, and lower consumption”.
3. Who are your main clients?
Our production have exported to more than 20 countries and regions, including South Korea, India, Egypt, Turkey, Russia etc.
4. Why choose us?
ETON is the famous brand for high-end pick and place machine. We have more than 10 years experience and professional R&D team, providing 24 hours quick response after-sales service.
5. What about the package of the machine?
We use wooden boxes and vacuum packaging to ensure that the machine is in good condition.
