Product Name: | Pick And Place Machine | PCB Size: | 250(±10)*any Length |
---|---|---|---|
PCB Thickness: | 0.1-0.5mm | No. Of Camera: | 10 Sets |
Components Range: | Led 3014/3020/2835/5050 And Resistor, Etc | Power Comsuption: | 9.6KW |
High Light: | LED 3020 Pick And Place Machine,5050 Pick And Place Machine,No Wire Strip SMT Mounter |
No-wire strip light pick and place machine machine 15 days can delivery

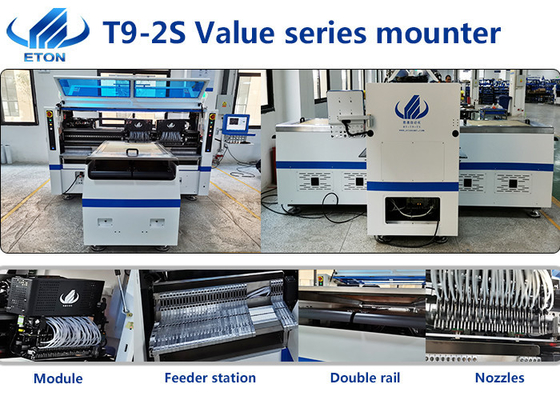

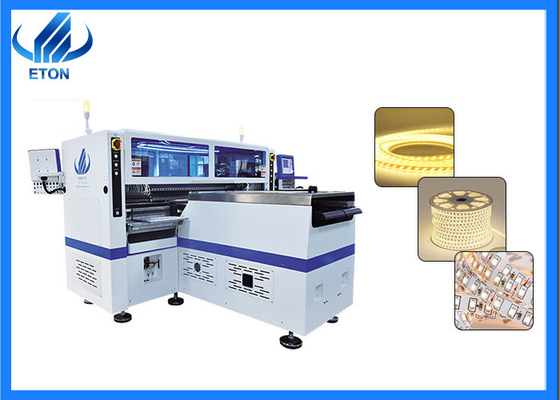

Details of T9-2S pick and place machine
T9-2S placement machine is an ultra-high-speed placement machine targeted at the upsurge of roll-to-roll and no-wire light strips in the current market. From the middle of 2022, it will be fully launched and sold. At present, the large domestic companies that make LED lights basically have at least one T9-2S, and foreign markets have also sold many T9-2S.
T9-2S with 136 heads, optimal speed can reach 500000CPH, actual speed can reach more than 400000cph; this machine can produce two type different products, like 2835 led chips strip light and rgb led chips strip light, with high efficiency and easy to operate.
Why choose T9-2S pick and place machine?
1. 136 heads, optimal speed can reach 500000cph, can help u seize the market in a short time and expand ur business;
2. Suitable for any length strip light, can meets ur clients any requirements and machine with the function of two time picking and one placing, high efficiency;
3. With unique design component leaking detection and individual component refill function, no speed labor to leak, more intelligent;
4. Electric feeder, make feeding more accurate.
Machine parameter
Dimension | 3454*3035*1777mm |
Weight | 3100kg |
PCB size(Width*Length) | 250(±10)mm*any length |
PCB clamping | Vacuum adsorption, cylinder clamping, track width adjustable |
Mounting mode | Double rail+four groups of placement heads |
No. Of heads | 136pcs |
No. Of feeder station | 136pcs |
Optimal speed | 500000cph |
What’s products of T9-2S chip mounter can make?
T9-2S pick and place machine can make low voltage strip light, like 1m, 5m, 10m, etc strip light; high voltage strip light, like 25m, 50m, 100m, etc strip light; neon led strip light.
If i buy your machine, which one can u provide?
FAQ
1. How many machines sell in India ?
A: So far, we have hundreds machine sell in India.
2. I don’t know how to operate machine and will it required experience?
A: Our machine is very easy for operate, usually several days for training is enough and not required experience. ETON engineer will teach online now and will visit your factory after corona.
3. I want to produce led bulb, do you have machine for that?
A: Yes, we could provide the whole SMT Machine for led bulb.
4. I want to produce 100 meters led strip light roll to roll, is F7S suitable ?
A: F7S suitable for one meter and half meter strip light, not suitable for 100 meters. But we have two modules suitable for Roll to roll strip light, if you want to know more details about these two modules, please contact me as soon as possible.
5 What kind of machine will provide besides pick and place machine ?
A: ETON as the largest manufacturer of SMT machine in China, we provide whole SMT line, such as reflow oven, stencil printer, conveyor, pick and place machine, Loader, Unloader, etc.
