| Model: | HT-F7S | Name: | Pick And Place Machine |
|---|---|---|---|
| Heads: | 34PCS | Feeder Station: | 68PCS |
| Feeding Way: | Electric Feeder With Double Motor | Mounting Mode: | Group Picking And Group Placing |
| Pcb Size: | Max: 1200*330mm Min: 100*100mm | ||
| High Light: | 68 Feeders LED Light Assembly Line,6kw LED Light Assembly Line,electric feeder led tube making machine |
||

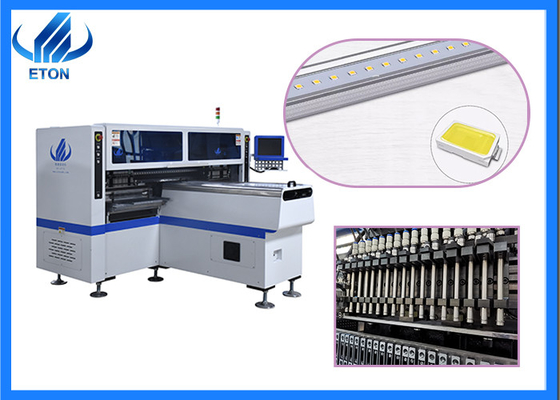

led light assembly line semi automatic machine for 1.2m tube light 6kw power and 68 feeders station
The parameter of Tube making machine
|
ETON High speed smt mounter for tube light
|
|
| PCB Length Width | Max:1200*330mm Min:100*100mm |
| PCB Thickness | 0.5-5mm |
| System | Windows7 |
| Software | R&D independently |
| Mounting Speed | 150000~180000 CPH |
| Components | LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Components Space | 0.5mm |
| Power | 380AC 50 HZ |
| Conveyor Transmission | Max Length :1200 mm |
| Transmission Speed | >500mm/sec |
| Positioning way | Optical |
| Air supply | 0.4-0.6mpa (4-6kgf/cm²) 150N/min |
| X,Y,Z Axis Drive way | High-end magnetic linear motor+ Servo motor |
| No. of Feeders Station | 68 PCS |
| No. of head | 34 PCS |
| Dimension | 2700*2300*1550mm |
| Total Weight | 1700kg |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting Mode | Group pick and group place |
| Mounting Precision | ±0.02mm(Repeat precision) |
| Mounting Height | ≦5mm |
| No. of Camera | 5 sets ( Digital camera) |
| Vision alignment, MARK correction | |
| Power Consumption | 6kw |
| Operating Environment | 23℃±3℃ |
| Transmission Direction | Single(left→ right or right→ left) |
| Transmission Mode | Online drive |
| Electrical control | Independent research and development by ETON |
| Motion control card module 1 set | Independent research and development by ETON |
| Feeding way | Electric feeder with double motor |
Feature

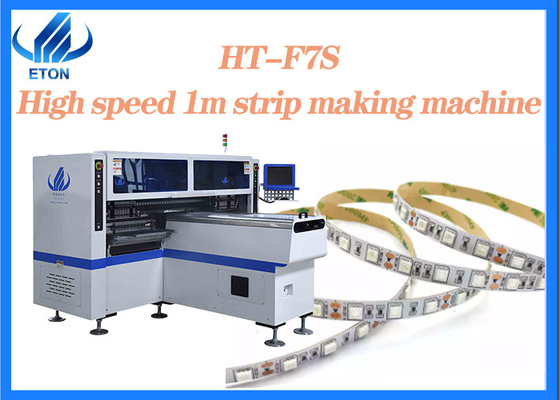

1. Apply to :0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip. Produce 2-4 kinds of materials at one time.
2. Mounting speed :150000- 180000 CPH
3. high productivity: The mounting modules each set of 18 nozzles , a total of 68pcs feeders station and 34 pcs heads
The production line for Led tube producing
We have full range of pick and place machine production line equipment , So we have the professional suggestions for you to build the production line.
Below are the suggestion of basic steps for the pick and place progress and equipment :
Certificates
ETON s not only in the leading position in the field of photoelectric high speed placement machines, but also has made breakthrough progress in the field of smt high speed placement machine, it has successfully developed a variety of cost effective smt high speed universal placement machines.
ETON has obtained a number of intellectual property technologies,total 133 patents, including 9 invention patents, 112 practical patents, 12 software copyrights, also earned the oversea certificates as CE, CCC, SIRA,etc.
Our Exhibitions
Participate in various exhibitions in China and abroad every year.
Domestic exhibitions: Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED Light Exhibition, etc.
Foreign exhibitions: India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, Thailand Exhibition, etc.
Market
Our products had exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc. And here are some of our big customers:
SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.
