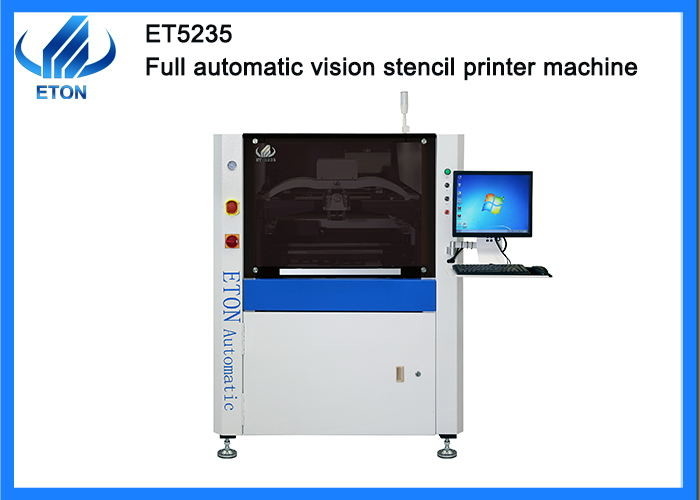

LED Bulb SMT Automatic Stencil Printer 2 Indepent Direct High Efficiency

LED Bulb SMT Automatic Stencil Printer 2 Indepent Direct High Efficiency
LED Bulb SMT Automatic Stencil Printer 2 Indepent Direct High Efficiency LED Bulb SMT Automatic Stencil Printer 2 Indepent Direct High Efficiency LED Bulb SMT Automatic Stencil Printer 2 Indepent Direct High Efficiency LED Bulb SMT Automatic Stencil Printer 2 Indepent Direct High Efficiency

Large Image :  LED Bulb SMT Automatic Stencil Printer 2 Indepent Direct High Efficiency

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CCC, CE, SIRA
Model Number: ET5235
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: vacuum package, wooden case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 50 sets/month
Detailed Product Description
Weight: 700KG Usage: Tube Printer
Condition: 100% Original Plate Type: Screen Printer
After-sales Service Provided: Engineers Available To Service Machinery Overseas Automatic Grade: Automatic
Warranty: 1 Year Name: Automatic SMT Stencil Printer
High Light:

High Efficiency Automatic Stencil Printer

,

High Efficiency SMT Stencil Printer

,

LED bulb SMT Stencil Printer

Features

  1. The direction of PCB loading can be freely selected and combined
  2. Adopt Arch bridge-shaped suspension hanging direct-connect scraper
  3. Cast aluminum scraper beam, running of scraper is smoother
  4. suspension self-adjusting stepper motor drives print head is Programmable.
  5. The fully closed-loop scraper pressure feedback device monitor the scraper pressure at all times, making the printing more full.
  6. scale is Embedded and never fall off.



Technical parameter

Screen Frames max size 737mm
Screen Frames min size 470mm
Screen Frames thickness 25~40mm
PCB size(L* W)

Max size:520mm*350mm

Min size:50mm*50mm

PCB Thickness 0.6-6mm
PCB warpage <1%(Max PCB diagonal)
Transport height 900±20mm
Transport direction Left-Right; Right-Left; Left-Left; Right-Right
Transport speed Max 1200mm/s Programmable
Squeegee pressure 0~10kg/cm
Squeegee angle 55℃Standard
Squeegee type Steel scraper(Standard),PV scraper(Option)
Stencil separation speed 0.1~20mm/sec Programmable
Cleaning system Dry,Wet,Vacuum (Programmable)



Company

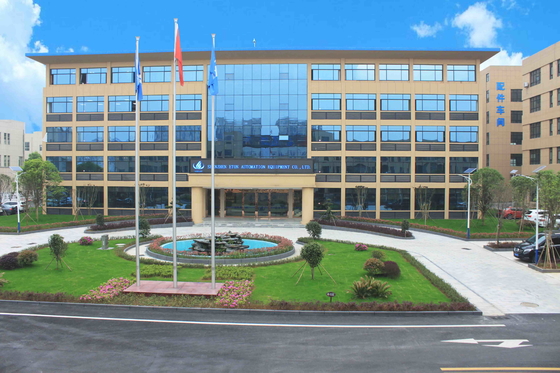

Shenzhen Eton Automation Equipment co., LTD.is a professional manufacturer of pick and place machine.Our company independently research, development, design and manufacturer a set of high -speed good quality SMT pick and place machine.Eton also has its own industrial park in Jiangxi. We are a powerful company with our own R & D production and sales.And we received a number of patents issued by the state certificate and support. Nowadays, we have served many factories and enjoyed good reputation.

LED Bulb SMT Automatic Stencil Printer 2 Indepent Direct High Efficiency 0



Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA, etc.

LED Bulb SMT Automatic Stencil Printer 2 Indepent Direct High Efficiency 1



Shipping Way

  • By air, for sample and small package
  • By sea, for large package and quantity;
  • Other ways as customer requested.
