| Warranty: | 1 Year | Condition: | New |
|---|---|---|---|
| Mounting Speed: | 45000 CPH | Applicable Components: | 0402 Components |
| Application: | SMT Production Line | Feeders: | 28 |
| Local Service: | India, Egypt, Vietnam | ||
| High Light: | 28 Feeders Pick And Place Machine,Pick And Place Machine 45k CPH,0402 components SMT Mounter |
||

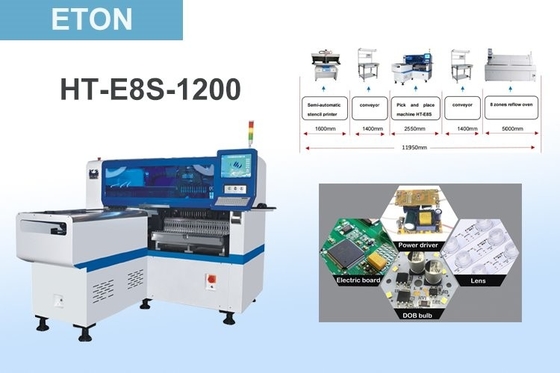

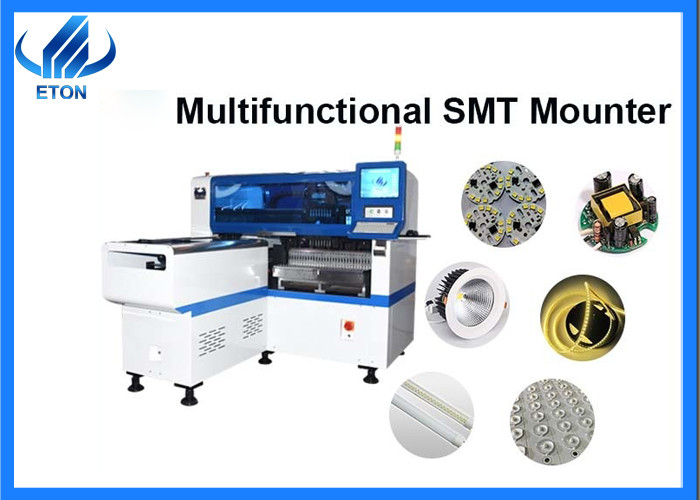

Multifunctional led tube chip mounter
Product introduction
PCB length width: max 600*500mm min 100*100mm
2 sets of imported camera , with vision for the flight identification, Mark correction
XYZ Axis drive way:high-end magnetic linear motor and servo motor
High-speed pick and place machine
Software independent research and development by ETON
Product feature
Single module magnetic linear motor multifunctional pick and place machine
Mounting components: LED chip, capacitors, resistors, lens, IC, shaped components,etc
Component: Min.size 0402 Max.height 15mm
Machine parameter
| Total weight | 1700kg |
| PCB thickness | 0.5-5mm |
| No.of camera | 2sets |
| Mounting precision | ±0.04mm |
| Mounting height | <15mm |
| Component space | 0.2mm |
| Power consumption | 4kw |
| Feeder | 28pcs |
Machine details
| Multifunctional | HT-E8S-1200 is very multifunctional , suitable for mounting all kinds of SMD components, such as the LED Chip, Resistor, Capacitor, IC, shaped components, Transformer, etc. |
| Big PCB customized | HT-E8S-1200 normal max PCB size is 1200*500mm, Also could customized for 1500mm length if client need. ETON is strong for machine customized with a good experience technology team |
| High precision | HT-E8S-1200 is high precision mounting (Pick and place )machine, the X, Y axis is using high-end magnetic linear motor, compared with the servo motor, it is higher precision and lifetime. Also using high precision vision camera and blue scan for lens mounting |
| Economy | HT-E8S-1200 is economy with 12 mounting heads compared with other brand 10 heads, it is cheaper with higher mounting speed and very suitable for the client who is inquiry for middle speed manufacturing at the first time! |
Machine application
Machine widely apply to mounting all kind of SMD components, like led bulb/panel/ down-light/street light/dob /driver/flood light/etc
1. All kinds of LED Lighting board: Bulb, Tube, Lens panel, Solar street light, Strip light, etc
2.Most of driver board: widely apply to mounting MOV, capacitor, 0603/0805/0402 resistor, SOP4/SOP6, Transformer, Terminal, etc
SMT Line
If you are interested in the whole SMT line, we also support whole SMT line, like : Stencil printer-Conveyor-Pick and place machine-Reflow oven machine
Or: Automatic line: Loader-Conveyor-Printer-Conveyor-Pick and place machine-Conveyor-Reflow oven-Conveyor-Unloader
What is the advantage of these two line s? How to choose? Pls contact us for more details!
How to guarantee the product quality ?
In SMT Line, our machine need professional operating, that is why we will sent engineer for visit, also worker could check by eye for the obvious problem. Besides, usually many factory will using AOI test machine!
Optical detector: Automatic optical inspection is a device that detects common defects encountered in welding production based on optical principles. AOI is a new type of testing technology that has only emerged in recent years, but it has developed rapidly. At present, many manufacturers have launched AOI testing equipment. When automatic detection, the machine automatically scans the PCB through the camera, collects the image, compares the solder joints tested with the qualified parameters in the database, after image processing, checks out the defects on the PCB, and displays / marks the defects through the display or automatic sign Come out for repair by maintenance personnel.
RFQ
1. What kind of raw material should I need to buy ?
A: For SMT Line, mainly need prepared the SMD Components, PCB, Solder paste
2.What about the after sales service ?
A: We support free machine install and training service, will sent engineer for visit after you buy our machine, also any parts need to be repaired and replaced will be free during machine warranty!
