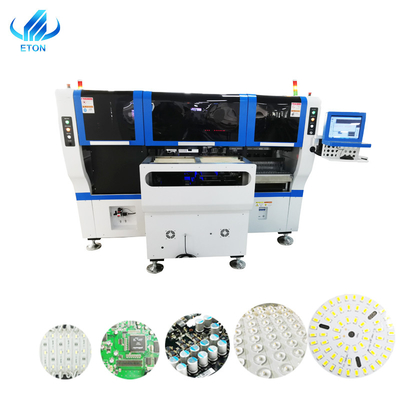

Multi Functional LED Bulb Making Machine 90000CPH 24 Heads Double Module

Multi Functional LED Bulb Making Machine 90000CPH 24 Heads Double Module
Multi Functional LED Bulb Making Machine 90000CPH 24 Heads Double Module Multi Functional LED Bulb Making Machine 90000CPH 24 Heads Double Module Multi Functional LED Bulb Making Machine 90000CPH 24 Heads Double Module Multi Functional LED Bulb Making Machine 90000CPH 24 Heads Double Module

Large Image :  Multi Functional LED Bulb Making Machine 90000CPH 24 Heads Double Module

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CCC, CE, SIRA
Model Number: HT-E8D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: vacuum package, wooden case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 50 sets/month
Detailed Product Description
Warranty: 1 Year Applicable Components: 0402
Name: SMT Pick And Place Machine Application: SMT Production Line
Condition: New Weight: 2500KG
Mounting Speed: 90000cph Dimension: 3150*2250*1650mm
Pcb Thickness: 0.5-5 Mm
High Light:

Multi Functional LED Bulb Making Machine

,

24 Heads LED Bulb Making Machine

,

Double Module LED Bulb Making Machine

Features

  1. Dual system, dual module multifunctional mounter. To produce two different products at same time
  2. Mounting components:LED chip,capacitors, resistors,lens,IC,shaped components.etc.
  3. component-MIN size 0404,MAX height 15mm.
  4. Application:power driver,electric board, lens, DOB bulb, linear bulb, household.
  5. Exclusive patented technology:Group picking and separately placing,separately picking and separately placing.



Technical parameter

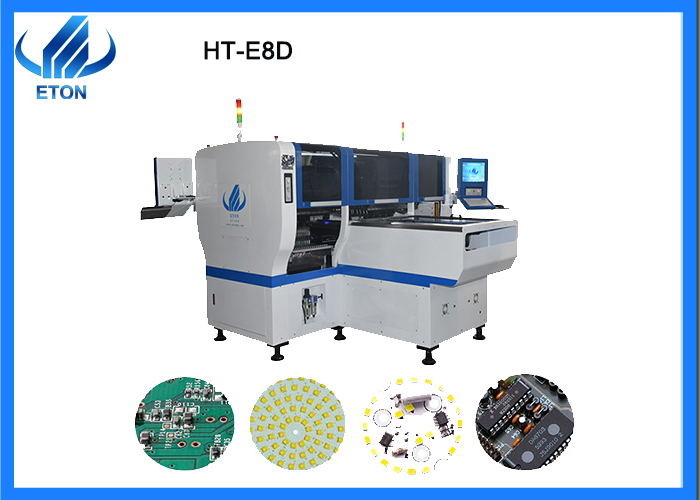

Model HT-E8D
Length 3150mm
Width 2250mm
Height 1650mm
Total Weight 2500kg
PCB size(L* W) Max:1200*300mm Min;100*100mm
PCB Thickness 05-5mm
PCB Clamping Adjustable pressure pneumatic
Mounting mode Group picking and separately placing,separately picking and separately placing
System Windows7
Software R&D Independently
Display Touch screen monitor
Input Device Keyboard, mouse
No.of camera 2setsDigital camera(Digital camera)
Components LED chip,capacitors,resistors,IC,shaped components,etc.
No.of feeders station 28PCS
No.of nozzles 12PCS
Conveyor transmission Max Length:1200mm
Electrical control Independent research and development by ETON
X,Y,Z Axis drive way High-end magnetic linear motor +Servo motor
Feeding way Electric feeder with double motor


Our Service

Trade show and sales service

We will provide the sales service though e-mail and exhibitions to communicate face to face , let you feel the real competitive products.



After sales service

  • Maintenance period:1 year.
  • Visit customers regularly and gather information.

Provide latest information about technology and equipment.





ETON Company

  • A leading manufacturer of automatic high - speed pick and place machine
  • The largest high - tech LED light making machine manufacturer in China
  • Obtained a number of intellectual property technologies , including 9 invention patents ,112 practical patents ,12 software copyrights

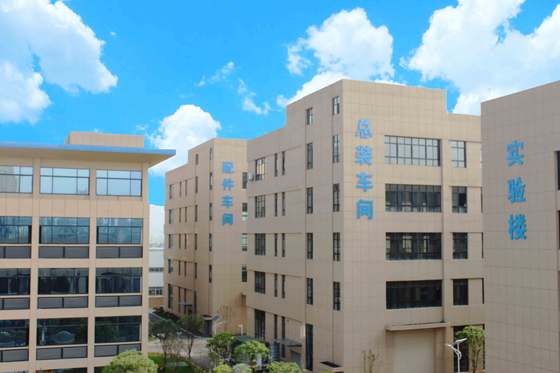

  • ETON Industrial Park
  • There is 50000 square meters modern intelligent Industrial parks , equipped with an advanced processing and manufacturing center
  • There are various types of machines , the fastest capacity reach 250000CPH, which is the fastest machine mounting speed in the world
  • ETON Team
  • High service efficiency , there is service office in India .
  • Quality First , Client - oriented , Continuous Improvement .
  • 24 hours online for you to answer

Multi Functional LED Bulb Making Machine 90000CPH 24 Heads Double Module 0



FQA

Q1:Do you provide software updates?

For customers who buy our machine, we can offer free upgraded software for you.



Q2:Does our machine need air supply?

Yes, E8D needs air supply.





Q3:This is the first time I use this kind of machine, is it easy to operate?

We have English user manual and guide video to teach you how to use the machine. If you still have question, pls contact us by email/WhatsApp/phone etc for online service.



Q4:How about the warranty?

We have 1 years warranty for E8D with lifetime after-sale support.



Q5:How can I buy machine from you?

(1)Consult us on line or by e-mail;

(2)Negotiate and confirm the final price, shipping, payment method and other terms;

(3)Send you the proforma invoice and confirm your order;

(4)Make the payment according to the method put on proforma invoice;
