Product Details:
Payment & Shipping Terms:
|
Warranty: | 1 Year | Applicable Components: | 0402 |
---|---|---|---|
Name: | SMT Pick And Place Machine | Power Supply: | 380AC 50HZ |
Condition: | 100% Original | Weight: | 1700kg |
Mounting Speed: | 250000CPH | Dimension: | 2700*2300*1550mm |
Pcb Thickness: | 0.5-5 Mm | ||
High Light: | CE LED Strip Pick And Place Machine,CCC LED Strip Pick And Place Machine,Strips High Speed Pick And Place Machine |
Product Features
Technical parameter

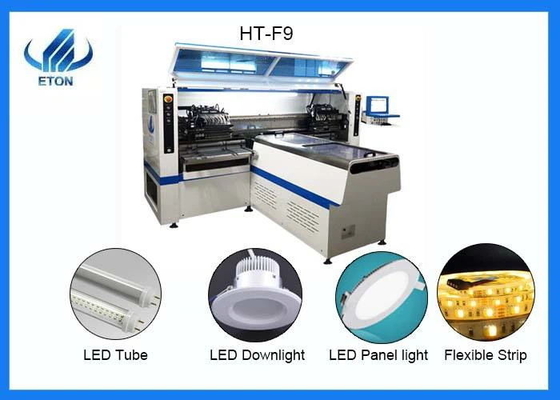

Model | HT-F9 |
Length | 2700mm |
Width | 2300mm |
Height | 1550mm |
Total Weight | 1700kg |
PCB size(L* W) | Max:1200*300mm Min;100*100mm |
PCB Thickness | 05-5mm |
PCB Clamping | Adjustable pressure pneumatic |
Mounting mode | Group to take and group to mount |
System | Windows7 |
Software | R&D Independently |
Display | Touch screen monitor |
Input Device | Keyboard, mouse |
No.of camera | 5sets(Digital camera) |
Components | LED3014/3020/3528/5050,capacitors,resistors,bridge rectifiers etc. |
No.of feeders station | 68PCS |
No.of nozzles | 68PCS |
Conveyor transmission | Max Length:1200mm |
Electrical control | Independent research and development by ETON |
X,Y,Z Axis drive way | High-end magnetic linear motor +Servo motor |
Feeding way | Electric feeder with double motor |

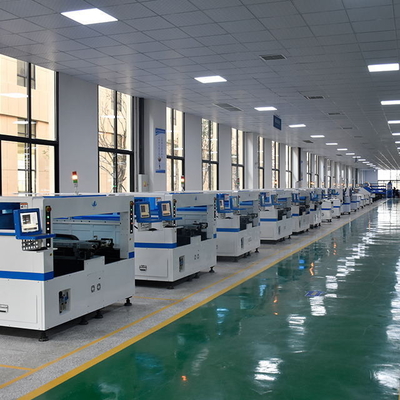

Company Profile
Shenzhen ETON Automation Equipment Co.,Ltd. was founded in 2011. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation equipment. The company has SMT high-speed pick and place machine division, precision solder paste stencil printer division, high-speed precision dispensing equipment division, and SMT peripheral automation equipment division.
Company Advantage
FQA
Q1:Do you provide software updates?
For customers who buy our machine, we can offer free upgraded software for you.
Q2:Does our machine need air supply?
Yes, F9 needs air supply.
Q3:This is the first time I use this kind of machine, is it easy to operate?
We have English user manual and guide video to teach you how to use the machine. If you still have question, pls contact us by email/WhatsApp/phone etc for online service.
Q4:How about the warranty?
We have 1 years warranty for F9 with lifetime after-sale support.
Q5:How can I buy machine from you?
(1)Consult us on line or by e-mail;
(2)Negotiate and confirm the final price, shipping, payment method and other terms;
(3)Send you the proforma invoice and confirm your order;
(4)Make the payment according to the method put on proforma invoice;
(5)We prepare your order in terms of the proforma invoice after confirming your full payment . And 100% quality check before shipping;
(6)Send your order via express or by air or by sea.
