Product Details:
Payment & Shipping Terms:
|
| Weight: | 700KG | Usage: | Tube Printer |
|---|---|---|---|
| Condition: | 100% Original | Plate Type: | Screen Printer |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Automatic Grade: | Automatic |
| Warranty: | 1 Year | Product Name: | SMT Stencil Printer |
| Pcb Thickness: | 0.6~6 | ||
| High Light: | LED Assembly Stencil Printer,LED Assembly Automatic Stencil Printer,Full Automatic Stencil Printer |
||

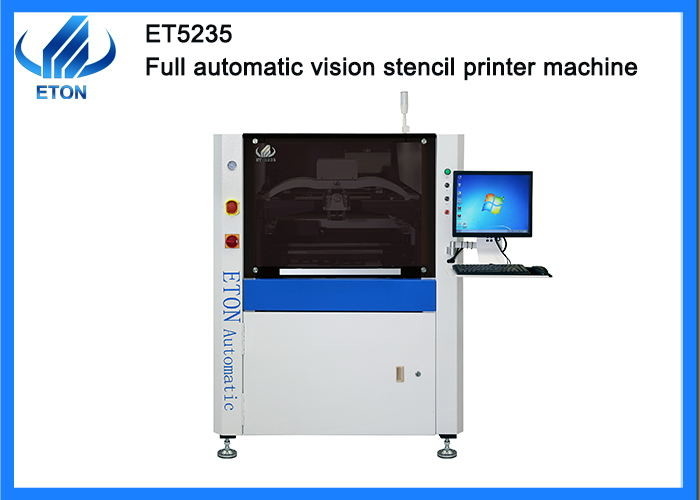

Features
Technical parameter
| Screen Frames max size | 737mm |
| Screen Frames min size | 470mm |
| Screen Frames thickness | 25~40mm |
| PCB size(L* W) |
Max size:520mm*350mm Min size:50mm*50mm |
| PCB Thickness | 0.6-6mm |
| PCB warpage | ＜1%(Max PCB diagonal) |
| Transport height | 900±20mm |
| Transport direction | Left-Right; Right-Left; Left-Left; Right-Right |
| Transport speed | Max 1200mm/s Programmable |
| Squeegee pressure | 0~10kg/cm |
| Squeegee angle | 55℃Standard |
| Squeegee type | Steel scraper(Standard),PV scraper(Option) |
| Stencil separation speed | 0.1~20mm/sec Programmable |
| Cleaning system | Dry,Wet,Vacuum (Programmable) |
| Table adjustment ranges | X:±5mm;Y:±5mm;θ:±2 |
| Printing accuracy | ±0.025mm |
| Cycle time | ≤9s (Exclude printing & cleaning) |
| Product changeover | <5Min |
| Air required | 2 |
| Power input | 4.5~6kg/cm |
| Control method | AC:220±10%,50/60HZ 1Φ3KW |
| Dimension | PC control |
| Weight | 1240(L)×1450(W)×1650(H)mm |

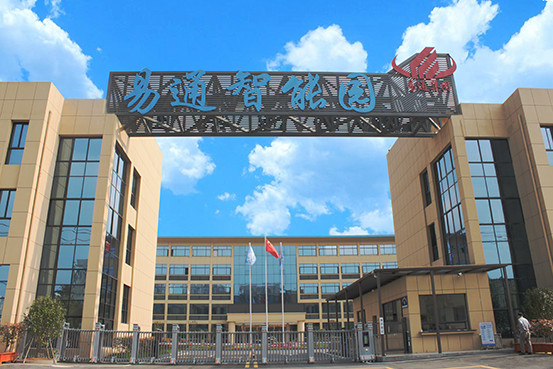

ETON Profile
Shenzhen ETON Automation Equipment CO., LTD. is one of very few high-tech manufacturers committed to provide "professional, high efficiency, low consumption" automatic high-speed SMT pick and place machine for customers,combining product development,production,sales and service as one. At present,as for the series "HT" high-speed and multi-functional machine,speed is the world's fastest. "Speed" and "Stability" are the core competencies of ETON,technology innovation and strict quality management principles coupled with excellent service , to enable us provide better professional full SMT solution continously and create superior value for our customers.
Certification
ETON obtains a number of intellectual property technologies, including 9 invention patents, 112 Practical patents, 12 software copyrights.ETON is rated as"Shenzhen high-tech enterprise" "Guangdong high-tech enterprise" "China high- tech enterprise""Shenzhen TOP Brand" "2015 LED Technology Innovation Award" "The 4th China LED First Innovation Award" "Industry Special Contribution Award" etc.
FAQ
Q. What is your actual speed of your products?
A. For the actual speed of the machine which is constrained by many factors, that related to the number of the components, the time to send PCB board and receive the board, etc. And is decide for the actual products and needs.
Q.What is your merits of the machine to others production?
A. Initially, we have a strong R&D department for studying our productions, and our clients can enjoy free up-grade of the machine to get latest information about technology and equipment, besides, we have a 52000 square meters industrial park to serve the production, assembly, and commissioning of our machines.
