| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Power Supply: | 380AC 50HZ |
| Condition: | 100% Original | Weight: | 2500KG |
| Mounting Speed: | 90000cph | Dimension: | 3150*2250*1650mm |
| Pcb Thickness: | 0.5~5mm |

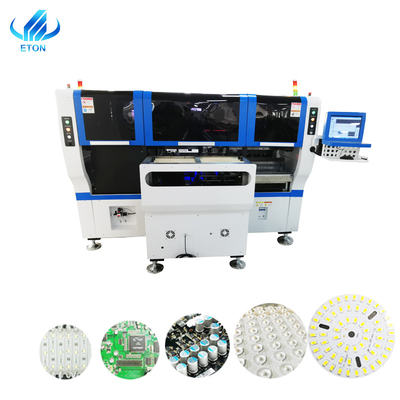

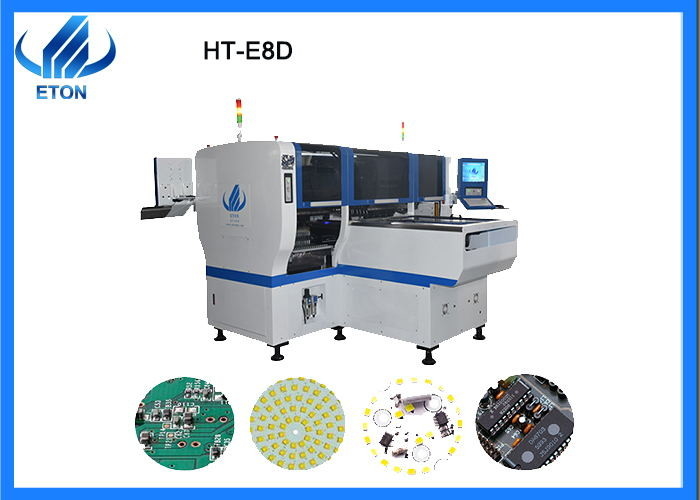

HT-E8D:24 heads 0402 single module multifunctional pick and place machine
Product Description
HT-E8D-1200 is big machine for producing two pcb at the same time with 90000 CPH. Specially, it is suitable for max pcb size is 1200*300mm, suitcable for led tube/panel/led strip/bulb/lens/etc.
ETON tech adjustable placement head. Component picking position can be adjusted. According to PCB pad.Apply to LED chip,capacitors, resistors,lens,IC,shaped components.etc and component-MIN size 0404,MAX height 15mm. The placement head adopt the method of two times picking and once placing. The placement time greatly minimized with the improved placement way, excellent optimum capacity reach 90000CPH.
Technical parameter
| Model | HT-E8D |
| Length | 3150mm |
| Width | 2250mm |
| Height | 1650mm |
| Total Weight | 2500kg |
| PCB size(L* W) | Max:1200*300mm Min；100*100mm |
| PCB Thickness | 05-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting mode | Group picking and separately placing,separately picking and separately placing |
| System | Windows7 |
| Software | R&D Independently |
| Display | Touch screen monitor |
| Input Device | Keyboard, mouse |
| No.of camera | 2setsDigital camera(Digital camera) |
| Components | LED chip,capacitors,resistors,IC,shaped components,etc. |
| No.of feeders station | 28PCS |
| No.of nozzles | 12PCS |
ETON Profile
Shenzhen ETON Automation Equipment CO., LTD. is one of very few high-tech manufacturers committed to provide "professional, high efficiency, low consumption" automatic high-speed SMT pick and place machine for customers,combining product development,production,sales and service as one. At present,as for the series "HT" high-speed and multi-functional machine,speed is the world's fastest. "Speed" and "Stability" are the core competencies of ETON,technology innovation and strict quality management principles coupled with excellent service , to enable us provide better professional full SMT solution continously and create superior value for our customers.
Our Service
Trade show and sales service
We will provide the sales service though e-mail and exhibitions to communicate face to face , let you feel the real competitive products.
After sales service
FAQ
1. do you provide engineers service?
Yes, of course. We have local engineers and office in India, Egypt etc, Who can provide free training, debug and installation door to door timely.
2. How long is the warranty period ?
Provide one year warranty period shall be replaced free of charge when All parts damaged
3. Is the cost of feeders being included the machine cost?
Feeders need to be purchased separately according to the size of the components, which is not included in the price of the machine.
4. Do you provide personal customization?
Yes, of course. contact the sales specialist to customize the equipment for you.
5. How about the software ?
Our software is R&D independently by ourselves.
