Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | SMT Conveyor |
|---|---|---|---|
| Application: | SMT Production Line | Condition: | New |
| Product Name: | ET-C1400 | Steel Frame Structure, Rail Length: | L=1400 Mm |
| Transmission Height: | 920±20 Mm | Control: | Industrial Control Panel |

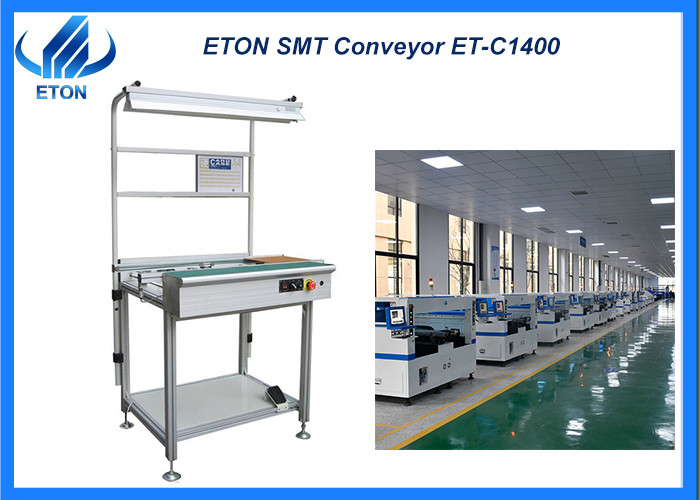

SMT LED flexible strip 1m 1.4m manual insertion conveyor
Description
The conveyor is used for connection between SMT production lines, and can also be used for PCB buffering, inspection, testing or manual insertion of electronic components.
Conveyor generally includes: a rack, two conveyor belts that rotate in parallel on the rack, the circuit board is placed on the two conveyor belts for transportation, and the existing conveyor belts are generally fixed on the rack, so that the two The width of the circuit boards conveyed on the conveyor belt is limited, so that it is not convenient to convey circuit boards of different sizes, so that the applicability of conveyor is low.
| Model | ET-C1400 |
| Steel frame structure, rail length | L=1400 mm |
| Width adjustment range | 50～350 mm |
| Max PCB size | 1400*350 mm |
| Transmission height | 920±20 mm |
| Transmission | 5MM flat belt conveyor |
| Speed | Adjustable from 0.5 to 9 m/min |
| Motor | One set of 40 W stepper motor |
| Control | Industrial control panel |
| Transmission Direction | Single(left → right or right → left) |
| One section of control, two Sensors | |

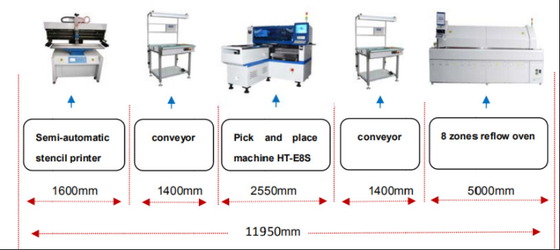

SMT Line solution
A whole semi automatic line which needs several devices for a whole semi production, as semi auto stencil printer machine, conveyor, pick and place machine and reflow oven etc.
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,
etc.
Packages
Our package step is follow the blowing:
STEP 1: Film packaging to prevent the dust and water;
STEP 2: Packing in a foam cotton stretch a film to protect the outside of the machine;
STEP 3: Vacuum paper package and moisture proof bag, to keep dry during the transportation;
STEP 4: Equip with sturdy wooden boxes to ensure the safety of the machine, then transportation by trucks to the specified port.
Delivery: by sea, air, land transport.
Service
High service efficiency, there is service office in India. Besides India, we also have local engineers in Egypt, Turkey. Can provide you with timely services.
Chinese engineers provide online services. If necessary, Chinese engineers will come to your factory for free install and training.
Quality First, Client-oriented, Continuous Improvement.
FAQ
Q. If I need a perfect line of the machine can you supply?
A. Yes, for the requirements of a whole line for production, we have professional equipment to make up for a perfect production line for your products, on account of we have a 50000 square meters of industrial park and excellent R&D staff, which can produce 50 sets of machine per month.
Q. How was your services?
A. We ensure our clients to enjoy an optimal experience of the service of communication and relevant needs of the machine for installation, maintenance and free up- grade.
Q. Can you accept D/P or D/A as the payment term?
A. For our regular payment terms, we usually use T/T.
