Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | SMT Pick And Place Machine |
|---|---|---|---|
| Power Supply: | 380AC 50HZ | Condition: | 100% Original |
| Weight: | 1700kg | Mounting Speed: | 250000CPH |
| Dimension: | 3100*2300*1550mm | Feeders: | 68 |
| Pcb Thickness: | 0.5~1.5mm |
Product description

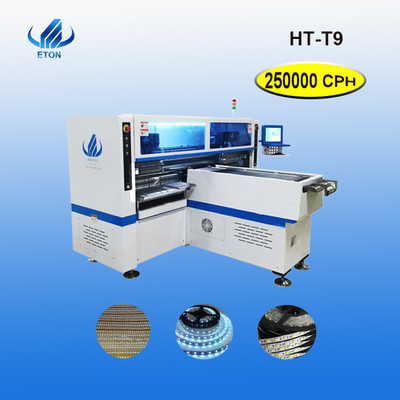

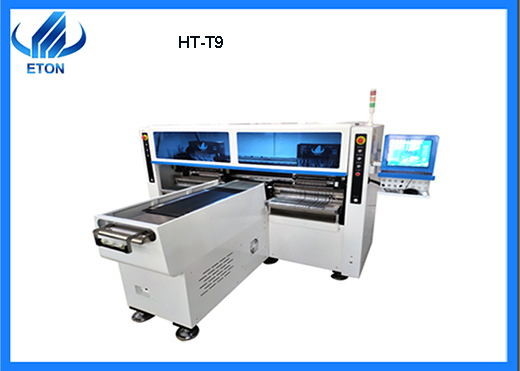

Mounting machine HT-T9 with dual arm magnetic linear,producing 4 types materials at the same time capacity reach 250000CPH. Able to produce flexible light belt products of any length at ultra high speed and roll to roll, such as 0.5m, 1m, 5m, 10m, 50m, 100m, 500m, etc.
Feature Description
1,Mounting machine is dual arm four module,17 nozzles for each mounting part,part A or part B can be mounted separately or synchronously.
2,Calibration automatically,high precision,available for RGB.
3,Unique design components leaking detection and individual component refill function.
4,Intelligent electric feeder,supporting high speed mounting machine series
5,Flight recognition camera,no pause to detect the presence and absence of component,component adsorption state,prevent placement errors.
6,The clamping rod is driven by the air cylinder to correct the material taken by mounting head.
Parameter
| Product name | Mounting machine |
| Model | HT-T9 |
| PCB size(mm) | Max:250*any length |
| PCB thickness | 0.5-1.5mm |
| Mounting component height | ＜＝ 5 mm |
| Mounting precision | ± 0.02 mm |
| No.of camera | 5 PCS |
| No.of nozzles | 68 PCS |
| No.of feeders station | 68 PCS |
| Components | LED 3014/3020/3528/5050 and resistor, capacitors,bridge rectifiers. |
| Feeding way | Electric feeder with double motor |
More details
1,ETON tech adjustable mounting machine placement head,can be mounting a variety of different materials.
2,Flexibly adjust the distance between feeder station.
3,Unique design components leaking detection and individual component refill function.
Cooperative customers
As a leading brand of global high-speed mounting machine manufacturer, ETON has an absolute leading market share in the LED industry. Its products are exported to more than 20 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt, Türkiye, etc.
FAQ
1. do you provide engineers service?
Yes, of course. We have local engineers and office in India, Egypt etc, Who can provide free training, debug and installation door to door timely.
2. How long is the warranty period ?
Provide one year warranty period shall be replaced free of charge when All parts damaged
3. Is the cost of feeders being included the machine cost?
Feeders need to be purchased separately according to the size of the components, which is not included in the price of the machine.
4. Do you provide personal customization?
Yes, of course. contact the sales specialist to customize the equipment for you.
5. How about the software ?
Our software is R&D independently by ourselves.
