Product Details:
Payment & Shipping Terms:
|
Warranty: | 1 Year | Name: | SMT Conveyor |
---|---|---|---|
Application: | SMT Production Line | Condition: | New |

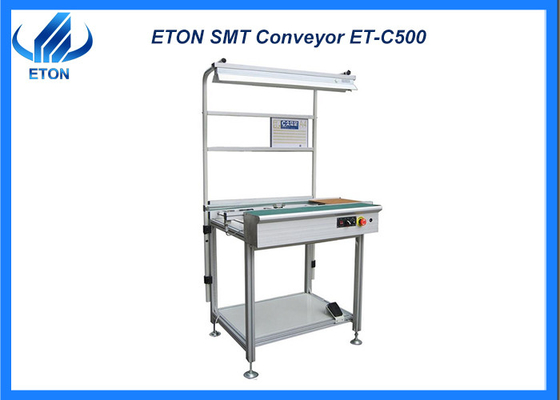

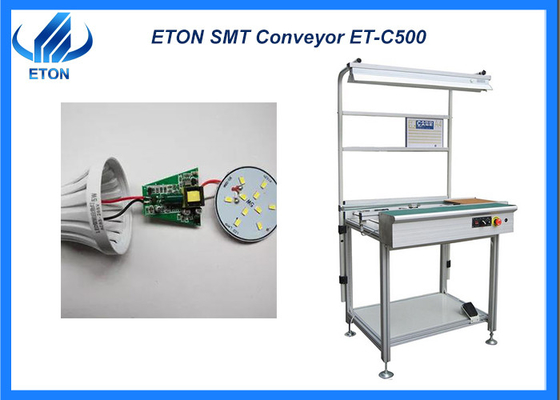

Product Name: | ET-C500 | Usage: | Circuit Board Assembly |
Control: | Industrial Control Panel | Transmission: | 5MM Flat Belt Conveyor |
SMT production line Adjustable from 0.5 to 9 m/min 500mm conveyor
Specification
Conveyor generally includes: a rack, two conveyor belts that rotate in parallel on the rack, the circuit board is placed on the two conveyor belts for transportation, and the existing conveyor belts are generally fixed on the rack, so that the two The width of the circuit boards conveyed on the conveyor belt is limited, so that it is not convenient to convey circuit boards of different sizes, so that the applicability of conveyor is low.
Model | ET-C500 |
Steel frame structure, rail length | L=500 |
Width adjustment range | 50~350 mm |
PCB size | 500*350 mm |
Transmission height | 920±20 |
Transmission | 5MM flat belt conveyor |
Speed | Adjustable from 0.5 to 9 m/min |
Motor | One set of 25 W stepper motor |
Control | Industrial control panel |
Transmission Direction | Single (left → right ) |
One section of control, two Sensors |
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,
etc.
Our Exhibitions
Domestic exhibitions: Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED Light Exhibition, etc.
Foreign exhibitions: India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, Thailand Exhibition, etc.
Packages
As for the package of the machine, we put it in film packing and foam cotton, to prevent the dust and water of protecting the machine and keep dry of the machine during transportation, and equip with wooden boxes to transport to the specified port.
FAQ
Q. What is your actual speed of your products?
A. For the actual speed of the machine which is constrained by many factors, that related to the number of the components, the time to send PCB board and receive the board, etc. And is decide for the actual products and needs.
Q. How many components can your pick and place machine mount in a PCB board?
A. While this is for our clients needs and the size of the PCB board.
Q. If I need a perfect line of the machine can you supply?
A. Yes, for the requirements of a whole line for production, we have professional equipment to make up for a perfect production line for your products, on account of we have a 50000 square meters of industrial park and excellent R&D staff, which can produce 50 sets of machine per month.
