Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Condition: | New | Weight: | 1700KG |
| Mounting Speed: | 45000 CPH | Driver Way: | Magnetic Linear Motor |
| Mounting Height: | ＜15mm | Industrial Park: | 52,000 Square Meter |

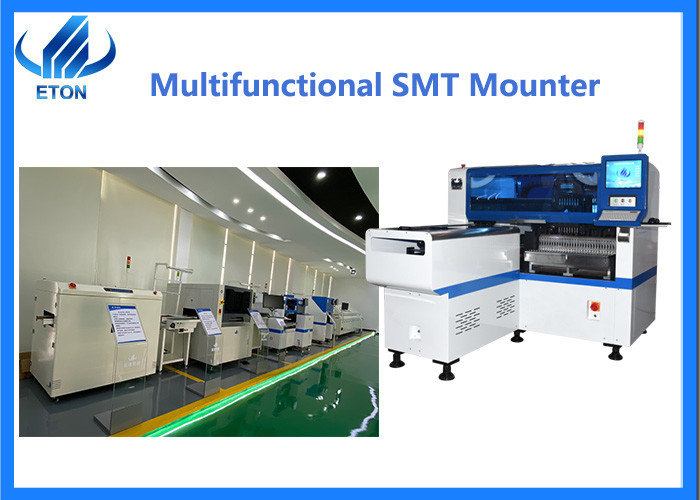

Single module magnetic linear motor pick and place machine for led lighting making machine
Description of Pick and Place Machine HT-E8S
The main function of SMT machine HT-E8S: Used for SMT production process to accurately mount components on PCB board fixed position.
The SMT machine uses the suction nozzle on the head to absorb various components from feeders and mount them on the PCB board.
SMT pick and place machine is the main equipment in SMT production process, which can not be replaced by other equipment.
SMT production process is the solder paste coating, component mounting, reflow welding, it is the most major process in the SMT production process. In order to get good mounting quality, SMT pick and place machine should have good mounting process in addition to good equipment.
Technical parameter of HT-E8S-1200
| Dimension | 2550*1650*1550mm |
| PCB length width |
Max:1200*500mm Min:100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| No.of camera | 2 sets of imported camera |
| Feature of camera | Vision for the flight identification,Mark correction |
| Mounting precision | ±0.04mm |
| Mounting height | <15mm |
| Mounting speed | 45000CPH |
| Power consumption | 4KW |
| Component Space | 0.2mm |
| Component | LED,resistors,capacitors,shaped components,etc |
Feeding system
| No.of feeders station | 28 PCS single module |
| No.of nozzles | 12 PCS single module |
| Feeding way | Electric feeder with double motor |
| X,Y,Z Axis drive way | High-end magnetic linear motor+servo motor |
Application
Our machine E8S-1200 suitable for mounting many kind of led lighting,such as led bulb,panel,DOB,strip light,tube,display,down-light,streetlight,etc.One module meet all your need.

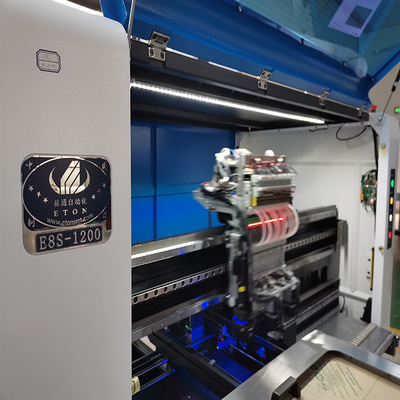

Introducing machine details
Introducing company
Our company set up 2011.High efficiency High quality and High Stable are the technology of ETON,strong technology innovation and strict pursuit of quality control,with excellent service,ETON has created superior value for customers as the outstanding worldwide brand of highspeed SMT machine with good reputation.
Industrial Park
Our company’s industrial park was successfully completed,equipped with an advanced processing and manufacturing center,strict quality control,and standardize production,streamline production production,and has invented the fastest automatic pick and place machine with speed 250000 CPH,which save much labors and space of production.
Our client
In the market,around 80% of large LED factory are our client.and we got large market share in USA,KOREA,INDIA,GERMANY,EGYPT,VIETNAM,TUNISIA,TURKEY more than 20 countries.
FAQ
Q1: What is the application scope of your product?
A:Our products have great advantages in the production of LED lamp drivers and light source. If you are an LED lamp manufacturer or are transferred to this industry, we can provide you with more information.
Q2: Have you obtained any certificates for your products?
A:Yes,Our machine has won many certificates, such as CCC, CE, Sira, and our enterprise has won the national high-tech award because of its strong R & D strength.
Q3: What are the advantages of R&D independently software?
A:Customizable in different languages, lifetime free upgrades, and a complete after-sales service system.
