Warranty: | 1 Year | Applicable Cc: | Power Drive Bulb Lens |
---|---|---|---|
Name: | SMT Mounter Machine | Power Supply: | 380AC 50HZ |
Condition: | 100% Original | Weight: | 2500 KG |
Mounting Speed: | 90000CPH | Demansion: | 3150*2250*1650mm |
Feeders: | 48 PCS |
NON-Stop material re-loading
Double-module Multifunctional pick and place machine

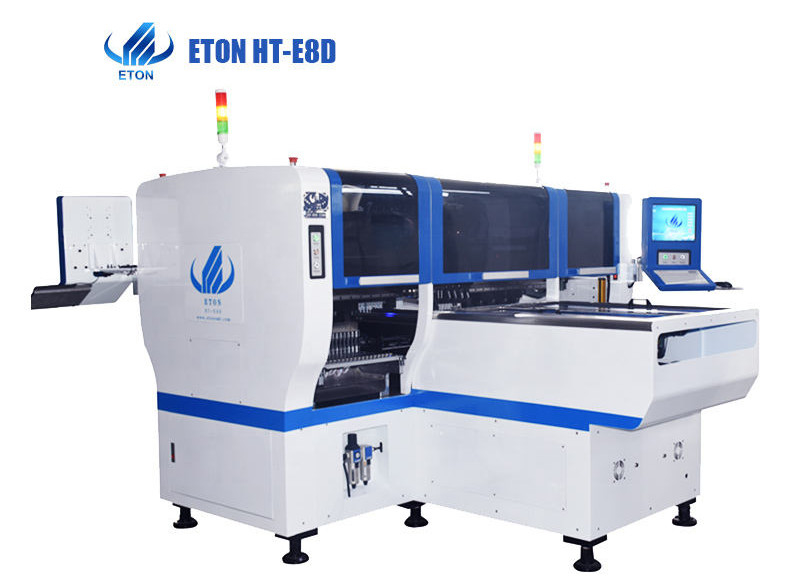

HT-E8D is Double module magnetic linear motor multifunctional pick and place machine.
Possess Electronic feeder feeding system,Vision alignment flight identification,MARK correction,Non-stop material re-loading function and Auto-optimization after coordinates generated.
Machine Highlights
Application
POWER DRIVE
BULB
LENS
Mounting appliance

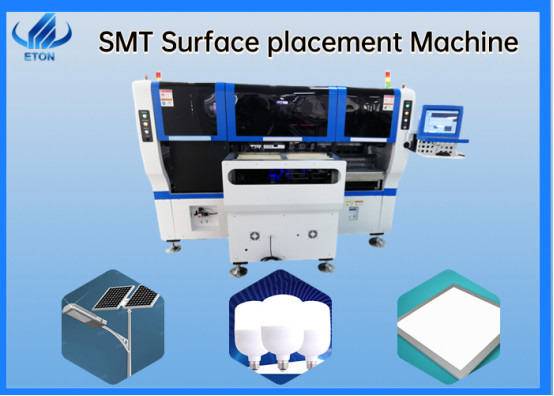

SMT surface placement machine mounting components: LED chips, capacitors, resistors , IC, shaped components, etc.
Appliance: power driver, electric board, lens, DOB, bulb linear bulb, household appliance, etc.
The details
About our machine outline dimension
length | 3150mm |
Width | 2250mm |
Height | 1650mm |
Total weight | 2500kg |

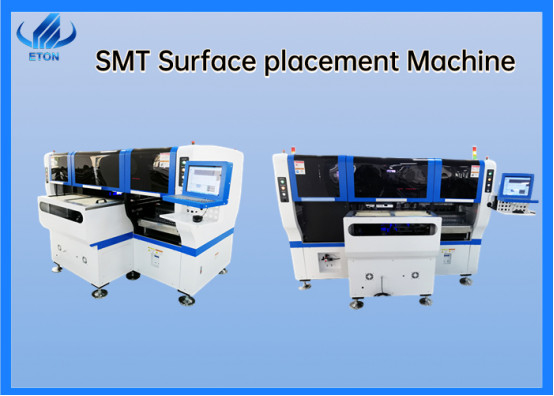

Our machine of HT-E8D is Double module
Size |
Max size: 1200mm*300mm Min size: 100*100mm |
Thickness | 0.5--5mm |
Mounting Clamping | Adjustable pressure pneumatic |
Mounting mode | Group picking and separately placing,Separately picking and separately placing |
Mounting height | <15mm(Automatic Changing) |
Mounting speed | 90000 CPH |
About the System
O.S. | |
System | Windows 7 |
Display | Touch screen monitor |
Input device | Keyboard, mouse |
Feeding system | |
No. Of feeders station | 48 PCS |
No. of head | 24 PCS |
About Transmission
Conveyor transmission | Max length:1200mm |
Transmission speed | >1000mm/sec |
Transmission direction | Both direction(option) |
Transmission mode | Auto Online drive |
Feature
1.SMT surface placement machine equipped two separate computers control two systems respectively. This model is a dual-mode multi-functional mounter, which can produce two products at the same time.
2.Fix the PCB board with adjustable pneumatic pressure. The patch method is to take it together and paste it separately or take it separately and paste it separately.
3.Four sets of cameras, two for each module, the accuracy range is ± 0.04mm, and the optimal production capacity is 90000cph.
4.In addition to light beads, resistors, capacitors and other components that can be mounted, there are also lenses, large special-shaped components and so on.
SHIPPING
PAYMENT
AFTER SALES SERVICE
Global Service Office: India ·Turkey · Vietnam ·Egypt · Pakistan
Provide professional SMT Full line solutions.
One-year warranty factory service. All parts damaged within the warranty period shall be replaced free of charge.
