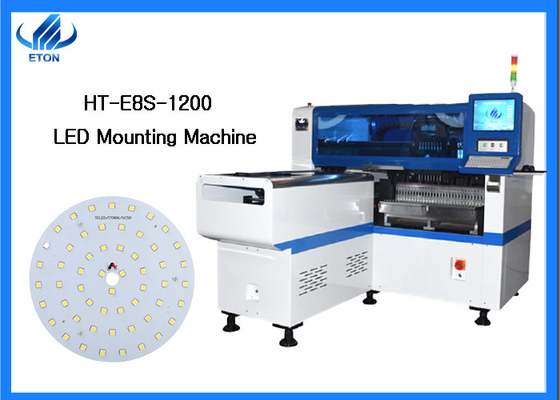

45000 CPH NON-Stop material re-loading Multifunctional pick and place machine

45000 CPH NON-Stop material re-loading Multifunctional pick and place machine
45000 CPH NON-Stop material re-loading Multifunctional pick and place machine 45000 CPH NON-Stop material re-loading Multifunctional pick and place machine

Large Image :  45000 CPH NON-Stop material re-loading Multifunctional pick and place machine

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CCC CE SIRA
Model Number: HT-E8S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: vacuum package,wooden case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 50 sets/month
Contact Now
Detailed Product Description
Warranty: 1 Year Name: SMT Mounter Machine
Power Supply: 380AC 50HZ Application: Power Driver、DOB Bulbs、 Lens 、electric Board
Condition: 100% Original Weight: 1700KG
Mounting Speed: 45000CPH Demension: 2550*1650*1550
Feeders: 28

NON-Stop material re-loading

Multifunctional pick and place machine

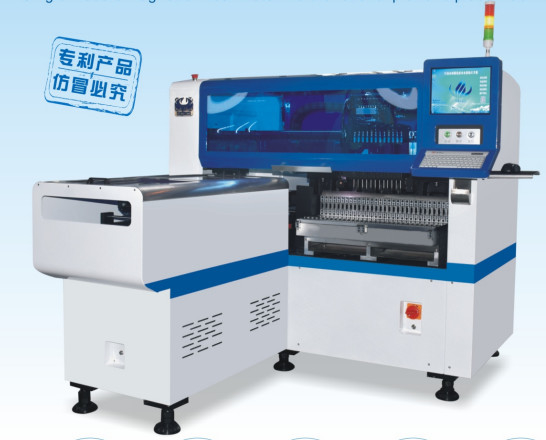

 HT-E8S is Single module magnetic linear motor multifunctional pick and place machine.



Possess Electronic feeder feeding system,Vision alignment flight identification,MARK correction,Non-stop material re-loading function and Auto-optimization after coordinates generated.





Application



45000 CPH NON-Stop material re-loading Multifunctional pick and place machine 0        45000 CPH NON-Stop material re-loading Multifunctional pick and place machine 1    45000 CPH NON-Stop material re-loading Multifunctional pick and place machine 2





POWER DRIVE





45000 CPH NON-Stop material re-loading Multifunctional pick and place machine 3       45000 CPH NON-Stop material re-loading Multifunctional pick and place machine 4       45000 CPH NON-Stop material re-loading Multifunctional pick and place machine 5





BULB







45000 CPH NON-Stop material re-loading Multifunctional pick and place machine 6     45000 CPH NON-Stop material re-loading Multifunctional pick and place machine 7     45000 CPH NON-Stop material re-loading Multifunctional pick and place machine 8





LENS







Machine Highlights





  • l Mounting components: LED chips,capacitors,resistors,lens,IC,shaped components,etc (Component space:0.2mm

45000 CPH NON-Stop material re-loading Multifunctional pick and place machine 9

  • l Component:Min. Size 0402 Max.height 15 mm

45000 CPH NON-Stop material re-loading Multifunctional pick and place machine 10           45000 CPH NON-Stop material re-loading Multifunctional pick and place machine 11

  • Imported Camera 2 sets :    Vision for the flight identification,MARK correction

The details



About our machine outline dimension



length 2550mm
Width 1650mm
Height 1550mm
Total weight 1700kg



Our machine of HT-E8S is Single module



Size

Max size: 1200mm*500mm

Min size: 100*100mm
Thickness 0.5--5mm
Mounting Clamping Adjustable pressure pneumatic
Mounting mode Group picking and separately placing,Separately picking and separately placing
Mounting height <15mm(Automatic Changing)
Mounting speed 45000 CPH





PAYMENT





  • Standard payment terms: 100% T/T before shipping



  • Online trade assurance order, all is up to you.



  • More payment terms could be provided (T/T, PAYPAL, western UNION)

OUR COMPANY



We have a history for more than ten years



ETON is a manufacturing and process solution provider focusing on R&D,production,sales and service of SMT high-speed pick and place machine.ETON specializing in this industry for 12 years.



We enjoy many honors





ETON is the leading manufacturer of global optoelectronic high speed pick and place machine , the products are exported to more than 20 countries and regions , including South Korea , India , Vietnam , Tunisia , Egypt , Turkey , Russia , Brazil etc . ETON obtains a number of intellectual property technologies , including 9 invention patents ,112 practical patents ,12 software copyrights . ETON is rated as " Shenzhen high - tech enterprise "" Guangdong high - tech enterprise "" China high - tech enterprise "" Shenzhen TOP Brand ""2015 LED Technology Innovation Award " “The 4th China LED First Innovation Award" “Industry Special Contribution Award "etc .





45000 CPH NON-Stop material re-loading Multifunctional pick and place machine 12



45000 CPH NON-Stop material re-loading Multifunctional pick and place machine 13



45000 CPH NON-Stop material re-loading Multifunctional pick and place machine 14
