Product Details:
Payment & Shipping Terms:
|
Warranty: | 1 Year | Applicable Components: | LED3014/3020/3528/5050、 Capacitors、 Resistor,IC,linear Bulb |
---|---|---|---|
Name: | SMT Pick And Place Machine | Mounting Speed: | 90000CPH |
Mounting Precision: | ±0.04mm | Feeders: | 48PCS |
Nozzles: | 24PCS | Condition: | 100% Original |

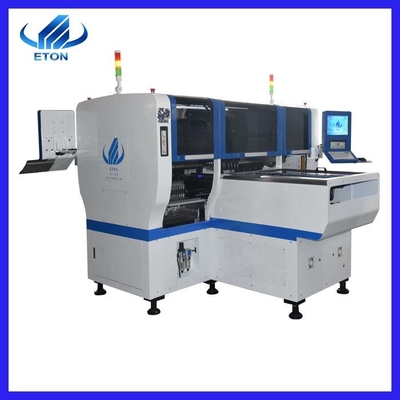

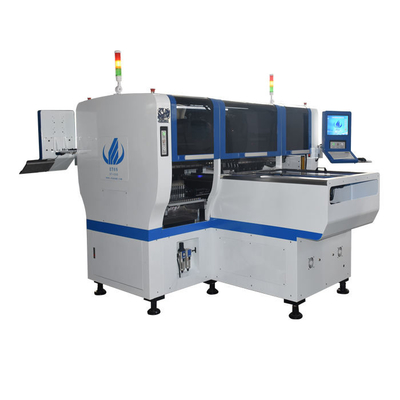

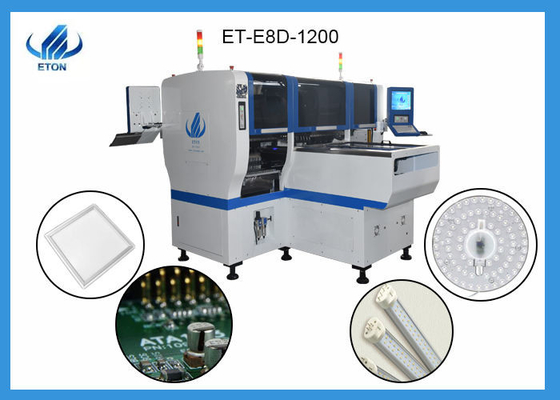

HT-E8D-1200
double magnetic linear motor multifunctional pick and place machine
HT-E8D can mount wide components, encompassing LED chip, capacitor ,resistor, IC, shaped components, etc.
It can mounte wide products, including drive motor, electric board, lens, DOB bulb, linear bulb etc.
Brand | Eton |
Model name | HT-E8D-1200 |
Length*width*height | 3150*2250*1650 |
Weight | 2500 |
PCB size | MAX1200*300 MIN 100*100 |
PCB thickness | 0.5~5mm |
PCB clamping | Adjustable pressure pneumic |
Capacity | 90000CPH |
Voltage | AC380V,50Hz |
Transmission speed | >1000mm/sec |
Mounting height | <15mm |
No. of camera | 4sets of imported camera |
No. of head | 48pcs |
No. of feeder station | 24pcs |
Drive motor | High-end magnetic linear motor+Dervo motor |
Warranty | 1 year |
Place of origin | Guangdong, China |
LED Pick & Place Machine adopts high -end magnetic linear Motor+servo motor , imported |
|
2, X.Y axis adopts magnetic linear Motor Drive, cooperated with imported liner railway ensures its accuracy and speed. | |
3, Dual system ,dual module multifunctional mounter to producing two different products at same time. | |
5, Application : Power driver. electric board. lens .DOB bulb linear bulb.household appliance etc. | |
6, Mounting components:LED chip, capacitor, resistor, IC, shaped components,etc. |
.
a. Electronic feeder feeding system.
b.Vision alignment flight identifications, Mark correction.
c. Non-stop material re-loading function
d. Auto-optimization after coordinates generated, etc
Pre-sale:
A. Provide professional advice on SMT production line.
B. Recommend the most suitable model according to the product.
C. Provide the best quotation at ex-factory price
After-sales:
A. Before shipment, the machine will be tested.
B. Provide machine-free installation training, video training and online training.
C. Professional after-sales team, solve problems in the first time.
