Product Details:
Payment & Shipping Terms:
|
| Application: | For Any Length Low/high Voltage, Neon Flexible Strip Light | No. Of Heads: | 136pcs |
|---|---|---|---|
| No. Of Feeder Station: | 136pcs | Optimal Speed: | 500000cph |
| No. Of Camera: | 10 Sets | PCB Size: | 250(±10)mm* Any Length |

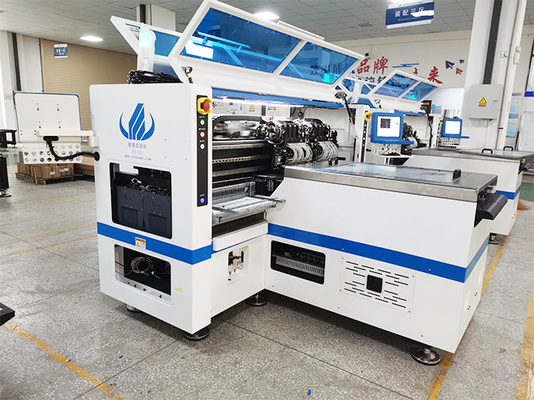

Machine details

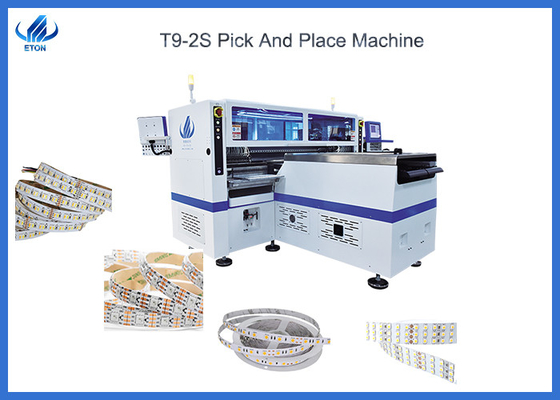

Name: ETON No-wire Strip Light Pick And Place Machine
Brand:ETON

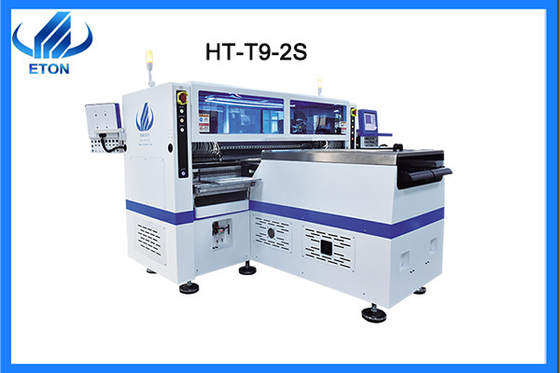

Model: T9-2S
Specification:SMT PICK AND PLACE MACHINE
Condition:original
Quality:top qualiy
Stock:large
Payment:T/T before shipment
Shipment:on-time shipment
Warranty: 1 year
Delivery:By sea, by land, by air, etc. according to your requirments
Package:wooden case.
Features:
1. It is suitable for 5M to infinitely long flexible light strips and light strips. The machine with double rail+ four groups of placement head, and each group has 17 suction nozzles.
2. The machine is driven by high-end magnetic linear motor+ imported servo motor, with high precision and fast speed.
3. Low maintenance cost and simple operation. Operators only need to undergo simple training to start production.
4. The machine adopts intelligent electric feeder with double motor for feeding.
Pick and place machine specification
| Dimension | 3454*3035*1777mm |
| PCB size | 250(±10)mm* any length |
| PCB thickness | 0.1-0.5mm |
| Mounting way | Group picking and group placing |
| Mounting mode | Double rail+four groups of placement heads |
| Mounting height | Less or equal 5mm |
| No. Of head | 136pcs |
| No. Of feeder station | 136pcs |
| Optimal speed | 500000cph |
| Power consumption | 9.6kw |
| PCB clamping | Vacuum adsorption, cylinder clamping, track width adjustable |
| Feature of camera | Vision alignment+ mark correction |
Why choose us?
FAQ
Q1:Does your company provide complete smt lines ,printer +pick&place + reflow oven ?
A1 : yes , our company can provide complete smt line machine , printer and pick and place machine and reflow oven.
Q2.: What is the max sizes board/pcb can the machine work for ?
A3 : We have many model machine, according to your products we'll provide you suitable machine.
Q3: Can your machine work for led drivers and other electronics ?
A4:Yes, our universal mounter can work for smd pcb for led drivers and also can work for battery charges , mobile display ,e-cigarette control device ,appliance control board etc .
Q4:How is your after-sales services ?
A5: ETON have more than 15 years experiences on machines after-sales services ,we have engineer for overseas installation and training services in India, Egypt, Turkey, Vietnam, etc
Q5: Is this machine easy for operation ? i afraid i can not run it well by myself .
A6: It does not matter, we can train you step by step until you get it and can independently production smooth.
