Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Nozzles: | 68 PCS |
|---|---|---|---|
| Feeders: | 68 PCS | Mounting Mode: | Group Picking And Separately Placing |
| Speed: | 250000CPH | PCB Size: | 250mm*any Length |
| No Of Camera: | 5 Sets,digital Camera | Components: | LED 3014/3020/3528/5050 Resistor Capacitors |
| Power: | 380AC,50 HZ | Air Supply: | Optical |
HT-T9 250000CPH smd led mounting machine surface mounting machine for soft lamp
Features of SMT pick and place machine
1,Soft lamp tape special high-speed mounter
2,High Precision: Five sets of imported cameras are equipped with visual alignment, mark correction technology and optical positioning technology to accurately identify the position of PCB board and quickly and accurately mount components.
3,High Speed: Applying the exclusive patented technology of group-based and group-based pasting, the pasting speed is 200000 CPH, 68 feeders station and 68 nozzles. It can automatically transmit on-line. And It can produce 2-4 kinds of materials at the same time, which greatly improves the efficiency.
4,Strong durability: The quality of hardware equipment is guaranteed by certificate, the quality of dual motor electronic flying and guide rail and screw is guaranteed, which can support 24-hour operation.
5,Simple operation: Windows 7 system can be used to switch the Chinese-English interface, usually 3 to 5 days training of operation is enough.
6,Components:LED 3014/3020/3528/5050 and resistors,capacitors,bridge rectifiers.
Technical parameter of Pick and place machine
| HT-T9 pick and place machine | ||
| PCB | PCB length width | 250mm*any length |
| PCB thickness | 0.5~1.5mm | |
| PCB clamping | Adjustable pressure pneumatic | |
| Mounting mode | Group to take and group to mount | |
| software | R&D independently | |
| display | LED monitor | |
| Input device | Keyboard , mouse | |
|
Vision system |
No.of camera |
5 sets of imported camera Vision alignment,mark correction |
| Mounting height | <5mm | |
| Mounting speed | 200000CPH | |
| Components | LED 3014/3020/3528/5050 and resistors,capacitors ,bridge rectifiers. | |
| Components space | 0.5mm | |
| No.of feeders station | 68PCS | |
| No.of nozzles | 68PCS | |
| Power | 380AC 50HZ | |
| Power consumption | 6KW | |
| Transmission direction | Single (left to right or right or left) | |
| Transmission mode | Auto online drive | |
| X,Y,X axis drive way | Servo motor + High-end magnetic linear | |
| Feeding way | Electric feeder with double motor | |

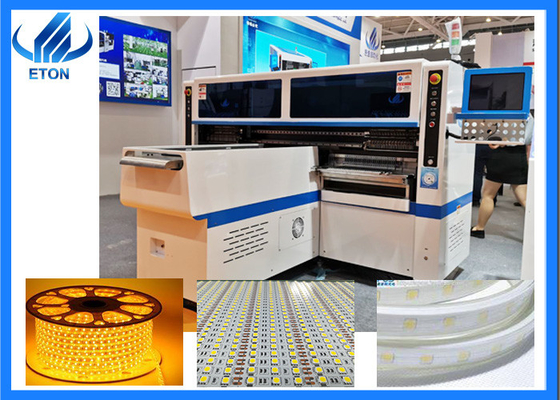

Application of HT-T9 production line
this production line suitable for roll to roll,soft lamp with 100meter strip light,etc
Market
ETON as the leading manufacturer of global optoelectronic high speed pick and place machine, the products are exported more than 20 countries and regions, including India, Vietnam, Tunisia, Egypt, Turkey, Russia, Thailand, etc.
After-sale Service
What service you can enjoy if you purchase LED SMT pick and place machine from us:
1) Professional sales manager of LED SMT machine, provide professional suggestion and service to you !
2) 24 hours online service and technical support, solve your questions quickly!
3) Sound company organisation and working system, guarantee you a fast delivery!
4) Supply you all the SMT proecssing related machines and devices with best prices!
