Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | SMT Pick And Place Machine |
|---|---|---|---|
| Power Supply: | 380AC 50HZ | Condition: | 100% Original |
| Weight: | 1700kg | Mounting Speed: | 250000CPH |
| Dimension: | 2700*2300*1550mm | Feeders: | 68 |
| Pcb Thickness: | 0.5-5 Mm |
Product description

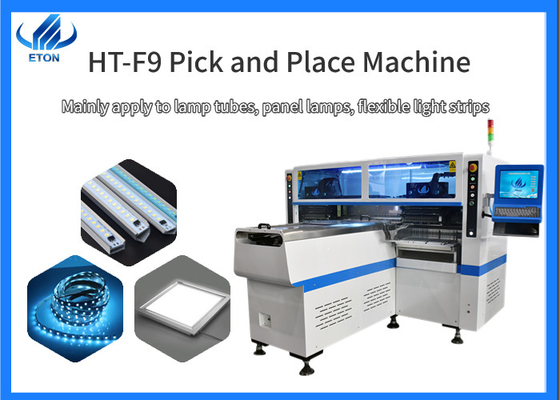

HT-F9,dual arm magnetic linear LED high-speed pick and place machine
1. Exclusive patented technology, group picking and group sticking, saving the time of suction nozzles picking up materials
2. 68 nozzles, 68 feeders, four different materials can be patched at the same time
3. The ideal production capacity can reach 250000CPH
4. X,Y Axis drive by high-end magnetic linear motor and servo motor
Parameter
| Product name | pick and place machine |
| Model | HT-F9 |
| PCB Length&Width | Max:1200*330mm Min:100*100mm |
| PCB Thickness | 0.5-5mm |
| Software | Window 7 |
| Display | LED touch screen monitor |
| Repeat Mounting Precision | ±0.02mm (Repeat precision) |
| Mounting Height | ≦5mm |
| Mounting Speed | 200000~250000 CPH |
| Components | LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
Explanation of some functions
The PCB board is fixed by means of adjustable pneumatic pressure, using an air cylinder for fixation. First, the positioning air cylinder works to make the PCB board stop at the set position, and then the side clamp air cylinder works to make the PCB board adhere to the fixed rail edge to ensure that it is perpendicular to the movement direction of the mounting head. Then, the top plate air cylinder works to make the PCB board horizontal, ensuring that the PCB does not move during mounting, and is always parallel to the suction nozzle plane as much as possible, Different PCB boards can be fixed by adjusting the height and position of the ejector pin.
The pick and place machine HT-F9 is equipped with five cameras, each of which is a camera for adjusting the nozzle spacing by photographing the center of the nozzle; Two feeder adjusted cameras adjust the feeder spacing by shooting the center scale line of the feeder seat; A mark camera is used to perform the mounting procedure of the PCB board by scanning the mark point as a reference. The nozzle debugging camera and feeder debugging camera are used for debugging before use, and the mark camera and nozzle debugging camera are used in production.
Applicable PCB board

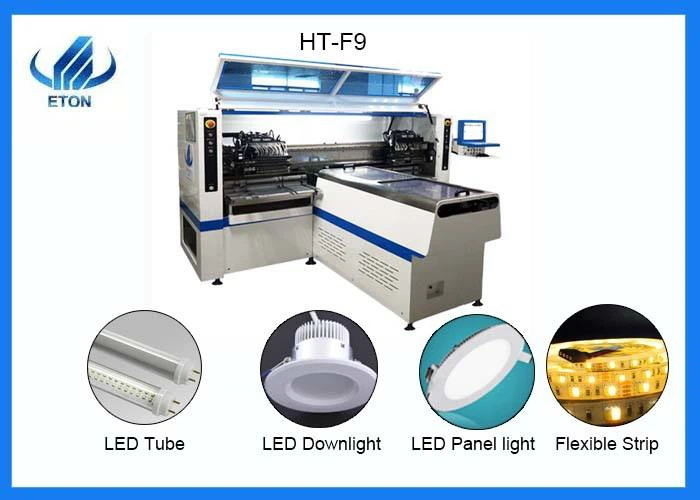

1. Rigid PCB: F9 can accommodate a PCB board with a length of 1200 * 330mm, and can be used to make rigid boards, such as panel lamps and lamp tubes.
2.Flexible PCB: In addition to hard boards, one of the biggest features of this machine is that it can also make soft boards, such as flexible light strips, which are used for outdoor decoration.
Company

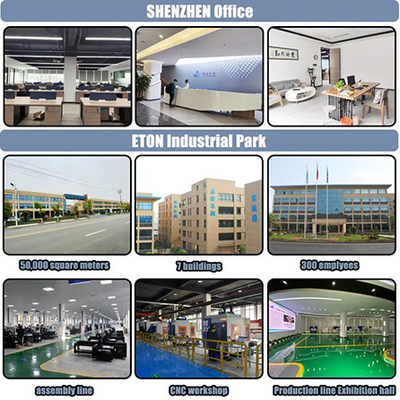

Shenzhen Eton Automation Equipment co., LTD.is a professional manufacturer of pick and place machine.Our company independently research, development, design and manufacturer a set of high -speed good quality SMT pick and place machine.Eton also has its own industrial park in Jiangxi. We are a powerful company with our own R & D production and sales.And we received a number of patents issued by the state certificate and support. Nowadays, we have served many factories and enjoyed good reputation.
Our Service
Global Service Office: India·Turkey·Vietnam·Egypt·Pakistan
Professional solutions: Provide professional SMT Full line solutions
Free Warranty: One-year warranty factory service. All parts damaged within the warranty period shall be replaced free of charge
Free Installation: On-site free installation to ensure smooth production.
Free Technical Training: Professional training of operating and maintenance.
Free Technical Support: 7 * 24 technical online support.
Free Software Upgrade: Offer free software upgrade whole lifetime
FAQ
Q1:Will your product be safe to use?
A: Of course, we have imported limit sensors. If someone gets too close, they will stop working to ensure human safety.
Q2: How long is the warranty period for your product?
A: Effective after installation, with a one-year warranty period
