Product Details:
Payment & Shipping Terms:
|
Warranty: | 1 Year | Application: | 0.5M ,1M,5M,10M,50M,100M,500Mstrip Light |
---|---|---|---|
Name: | SMT Mounter Machine | Power Supply: | 380AC 50HZ |
Condition: | 100% Original | Weight: | 3100KG |
Dimension: | 3454*3035*1770mm | Feeders: | 136PCS |
High Light: | 136 Feeders SMT Placement Machine,Flexible LED SMT Placement Machine,500000CPH SMT Placement Machine |

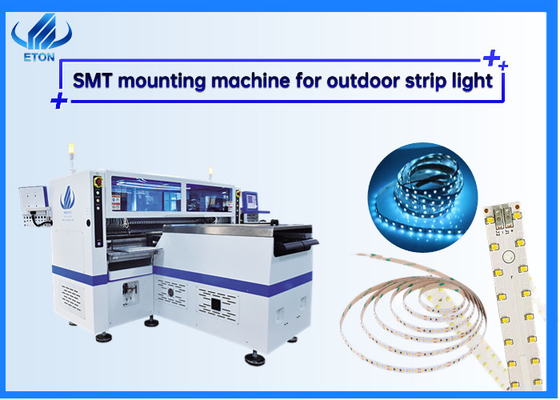

SMT placement machine for LED flexible strip light

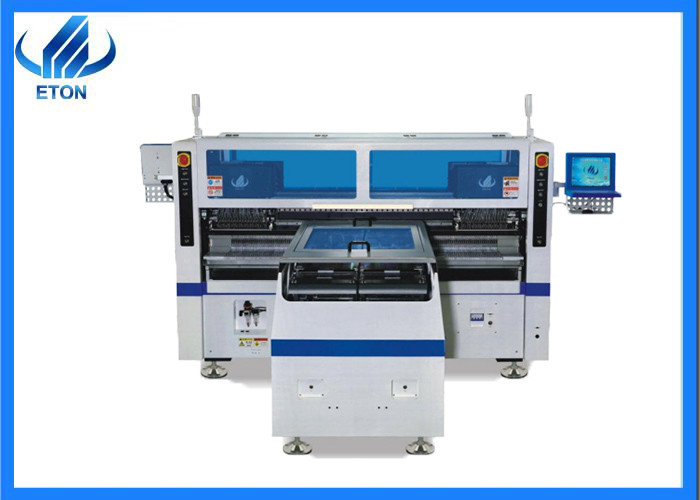

T9-2S is the professional high-speed mounter
T9-2S can mount any length strip light with double arm
Application
0.5M ,1M,5M,10M,50M,100M,500M Strip light
Main process flow of SMT
What are the elements of the SMT placement machine placing process?
The details
We can customize the production management MES system including your requirements.
About our machine outline dimension
length | 3454mm |
Width | 3035mm |
Height | 1777mm |
Total weight | 3100kg |
Our machine of T9-2S is
group picking and group placing
Size | 250(±10)mm * any length |
Thickness | 0.1--0.5mm |
Mounting Clamping |
Vacuum adsorption,cylinder clamping, track width adjustable |
Mounting mode | Double rail+Four groups of placement heads |
Mounting height | ≤5mm |
About the System
O.S. | |
System | Windows 7 |
Display | LED display |
Feeding system | |
No. Of feeders station |
Double side:136 PCS Single side:68 PCS |
No. of head |
Double side:136 PCS Single side:68 PCS |
Feed way | Intelligent electric feeder with double motor |
About Transmission
Conveyor transmission | Max length:1000mm |
Transmission speed | >500 mm/sec |
Transmission direction |
Single (left→right/right→left) |
Transmission mode | Online drive |
Position way | Optical |
Other
Operating environment | 23℃±3℃ |
Air supply | 0.4-0.6mpa (4-6kgf/cm²)150N/min |
FAQ
OUR COMPANY
We have a history for more than ten years
ETON is a manufacturing and process solution provider focusing on R&D,production,sales and service of SMT high-speed pick and place machine.ETON specializing in this industry for 12 years.
We enjoy many honors
ETON is the leading manufacturer of global optoelectronic high speed pick and place machine , the products are exported to more than 20 countries and regions , including South Korea , India , Vietnam , Tunisia , Egypt , Turkey , Russia , Brazil etc . ETON obtains a number of intellectual property technologies , including 9 invention patents ,112 practical patents ,12 software copyrights . ETON is rated as " Shenzhen high - tech enterprise "" Guangdong high - tech enterprise "" China high - tech enterprise "" Shenzhen TOP Brand ""2015 LED Technology Innovation Award " “The 4th China LED First Innovation Award" “Industry Special Contribution Award "etc .
