| Warranty: | 1 Year | Application: | Available For 5M, 50M Or Any Length Of Flexible Strip And Roll To Roll. |
|---|---|---|---|
| Name: | SMT Mounter Machine | Power Supply: | 380AC 50HZ |
| Condition: | 100% Original | Weight: | 1700KG |
| Mounting Speed: | 250000CPH | Demension: | 3100*2300*1550mm |
| Feeders: | 68PCS | ||
| High Light: | 68 Pcs Feeders SMT Chip Mounter,250000 CPH Chip Mounter machine,Dual Arm Chip Mounter machine |
||

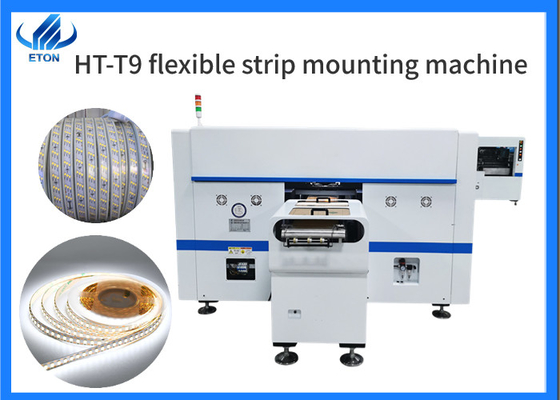

250000 CPH Dual arm magnetic linear high-speed mounter
HT-T9 is the professional high-speed mounter in our company.
Capacity reach 250000 CPH,
Realize Efficient production
THREE HIGH:
Producing with Producing 4 types materials at the same time with high capacity.Capacity reach 250000CPH
It’s repeat precision is ±0.02mm(Repeat precision).
Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
Application
Available for 5M, 50M or any length of Flexible strip and Roll to roll.
Machine highlights:
Vision for the flight identification,MARK correction
Exclusive patented technology:
The details
About our machine outline dimension
| length | 3100mm |
| Width | 2300mm |
| Height | 1550mm |
| Total weight | 1700kg |

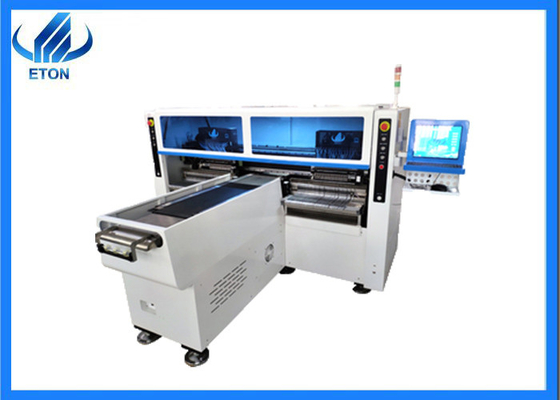

Our machine of HT-T9 is Double arm
| PCB Size | 250* any length |
| PCB Thickness | 0.1--0.5mm |
| Mounting Clamping |
Vacuum adsorption,cylinder clamping, track width adjustable |
| Mounting height | ≤5mm |
About the System
| O.S. | |
| System | Windows 7 |
| Display | Touch screen monitor |
| Feeding system | |
| No. Of feeders station | 68 PCS |
| No. of head | 68 PCS |
About Transmission
| Conveyor transmission | Max length:1000mm |
| Transmission speed | >500 mm/sec |
| Transmission direction |
Single (left→right/right→left) |
| Transmission mode | Online drive |
| Position way | Optical |
Other
| Operating environment | 23℃±3℃ |
| Air supply | 0.4-0.6mpa (4-6kgf/cm²)150N/min |
