Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Condition: | New |
|---|---|---|---|
| Applicable Components: | 0402 | Application: | SMT Mounting Shooter Machine,SMT Production Line,for SMT Machine |
| Name: | SMT Chip Mounter | Mounting Speed: | 45000 CPH |
| Feeders: | 28 | ||
| High Light: | LED Chip Mounter CCC,1200*500mm LED Lens SMT Mounter,Panel Light SMT Mounter |
||
LED Lens production for Panel light
Technical parameter
HT-E8S-1200 is a smt machine specially designed for lens production with an optimal capacity of 45000CPH.
| 1 | Components | LED chip,capacitors,resistors,IC,RGB,shaped components etc. |
| 2 | Total Weight | 1700kg |
| 3 | Mounting Height | <15mm |
| 4 | PCB Thickness | 0.5-5mm |
| 5 | Display | Touch screen |
| 6 | Mounting Mode | Group picking and separate placing,separate picking and separate placing |
| 7 | Software | R&D independently |
| 8 | Position Camera | Vision for the flight identification + MARK correction |
| 9 | Input Device | Keyboard,Mouse |
| 10 | No. of Camera | 2 sets of imported camera |
| 11 | PCB Length Width | Max:1200*350mm Min:100*100mm |
| 12 | Mounting repeat Precision | ±0.04mm chip |
| 13 | Length*Width*Height | 2550mm*1650mm *1550mm |
| 14 | Mounting Speed | 45000 CPH(optimum) |
| 15 | PCB Clamping | Adjustable pressure pneumatic |

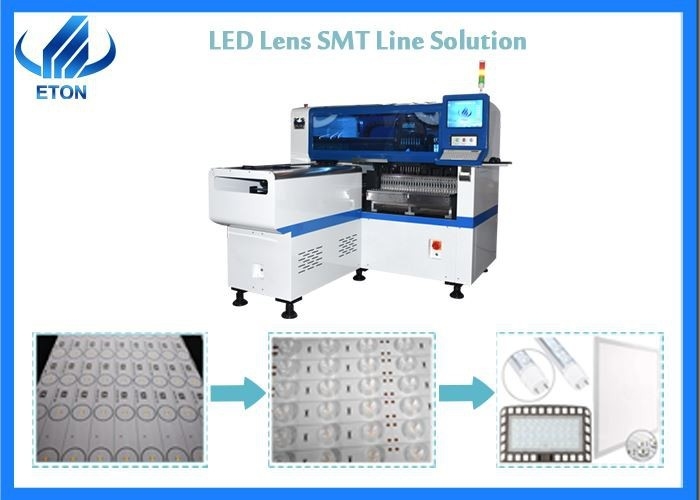

Lens SMT line solution
Step one——Mounting led chip: semi auto stencil printer-conveyor-pick and place machine-conveyor-reflow oven
Step two——mounting the lens: automatic glue dispenser-conveyor-pick and place machine-conveyor-reflow oven
Here are the automatic SMT line solution layout:
The applications and components
Applications: all kinds of led lights LED bulbs, DOB, lens, led tube, led strip, down light, table light, spot light, ceiling light, panel light, electric board, power driver etc.
Components: led chips, resistor, capacitor, bridge rectifiers, IC, lens, shaped components etc.
Company profiles
ETON over 10 years experience in SMT machines, so we are very professional to provide whole line solution.
ETON got large market share in USA, KOREA,INDIA, GERMANY,TURKEY more than 20 countries, also expanded our plant and built a new bigger industrial park in Jiangxi Province.
ETON have modern self-owned industrial park with 52,000 square meters. More than 500 employees , The annual sales scaled over 800 million yuan.
Packing
Packaging: standard is plastic film wrap the LED SMT machine, then load into one 20" container; Wooden box packing can be customized.
Delivery: 35-40 days after 30% T/T prepayment, buyer should come to inspect when we do test running, after testing, pay the 70% balance before delivery
FAQ
Q:What is the delivery date?
We will deliver the goods after 30 days' deposit.
Q: How is the training?
A: After purchasing our products, you can send your engineers to study in our factory, or we can send our engineers to yourfactory to train your staff for you .
Q:Can you support the test board?
A:Of course, we have our own special test board factory. You can send your PCB and components to us. We will test them for you, and we will video with you in real time to determine the effect of mounting.
