Product Description

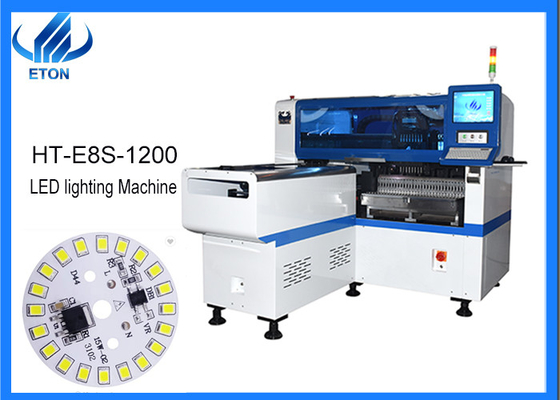

The HT-E8D-1200 is a multifunctional pick and place machine independently developed and produced by ETON, with dual modules and dual systems. It can simultaneously mount two different products, with an optimal production capacity of 90000 CPH. It is mainly applicable to various products such as drivers, power supplies, circuit boards, lenses, linear balloons, and home appliance control boards.
Feature
1,Dual system,dual module multi-functional mounter.To produce two different products at same time.
2,Mounting components:LED,capacitors,resistors,IC,shaped components,etc.
3,Component:min.size 0402； max. Height 15mm

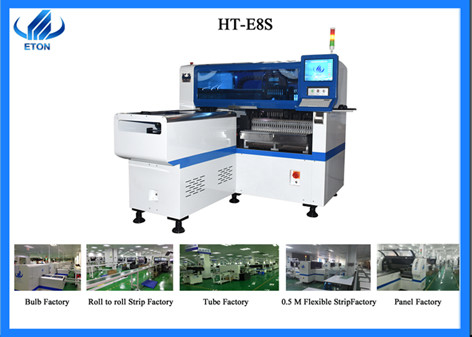

4,Application:power driver. Electric board.lens.linear bulb.household appliance ,street light etc.
Exclusive patented technology
1,Electronic feeder feeding system
2,Vision alignment flight identification,Mark correction
3,Non-stop material re-loading function
4,Auto-optimization after coordinates generated,etc
Parameter
| Product name |
pick and place machine |
| Product model |
HT-E8D-1200 |
| PCB size |
Max:1200*300mm
Min: 100*100mm
|
| PCB thickness |
0.5-5mm |
| PCB clamping |
Adjustable pressure pneumatic |
| Mounting mode |
Group picking and separate placing ,separate to pick and separate to stick |
| Mounting height |
＜15mm |
| Mounting precision |
±0.04mm |
| Mounting speed |
90000CPH |
| Components space |
0.2mm |
| Feeding way |
Electric feeder with double motor |
| X,Y,Z Axis drive way |
High-end magnetic linear motor and servo motor |
| Operating environment |
23℃±3℃ |
| Power |
380 AC 50 HZ |
| Power consumption |
8 KW |
Feeder type
Divided according to the width of the material belt
|
8mm
|
3014, 3528, 2835, 0603, small resistance, capacitance, etc |
| 12mm |
5050, 5630, 4014, 7020, small IC, small resistance, capacitance, etc |
| 16mm |
IC, heterogeneous components, large resistance, capacitance, etc |
| 24mm |
abnormal components, large capacitance, resistance, etc |
Our service
Our service can be divided into three parts: pre sales service, in-sales service and after-sales service:
1)Pre sales service can be called professional product consultation. If you are particularly familiar with the pick and place machine industry, we have special technical consultants to answer the technical questions you want. If you want to move into this industry, we also have special personnel who can provide some information about the pick and place machine to make you more familiar with the pick and place machine
2)Service in sales refers to that you have paid a deposit in advance, and after the production of your products, we will regularly share the progress of product production with you. Of course, if you have other requirements during this period, you can also say it, and then we will make your expectations for the products.
3)After sales service refers to all the services we provide when you receive the products. We have a special after-sales department to serve you, such as guiding installation, training employees, regular follow-up, sharing industry information and so on.
