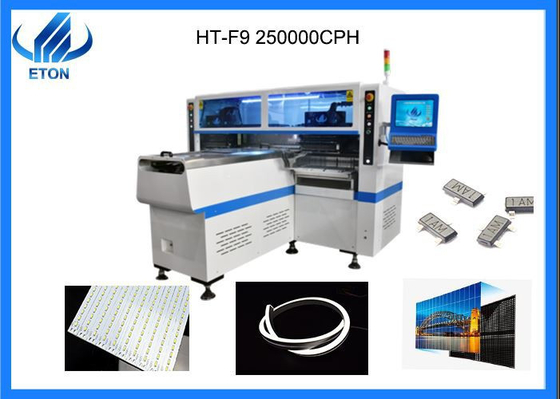

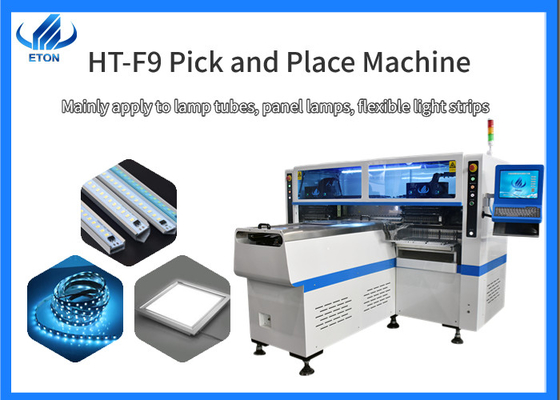

Dual Arm Magnetic Linear LED
High-speed Pick and Place Machine
HT-F9 is the professional high-speed mounter in our company.
HT-F9 has Dual arm magnetic linear LED high speed pick and place machine,
Producing 4 types materials at the same time,
capacity reach 250000 CPH,
realize Efficient production
THREE HIGH
- High-Productivity:Producing with 4 types of materials at the same time
- Capacity reach 250000 CPH
- High-intelligence: Dual arm four module,17 nozzles for each mounting part,part A/B/C/D can be mounted separately or synchronously.
- High-precision : Repeat Mounting precision :±0.02 mm (Repeat precision)
Application
0.6 m, 0.9 m, 1.2 m rigid PCB and
0.5 M, 1 M LED flexible strip.
Machine highlights:
- Calibration automatically,high precision,available for RGB
- Digital Camera 10 sets :
- Vision alignment , MARK correction
- Adopt High-end magnetic linear motor,servo motor
Exclusive patented technology
- R&D Independently Electronic control
- R&D Independently software
- R&D Independently Motion control card module 1 set
- R&D Independently Group to take and group to mount
The details
About our machine outline dimension
| length |
2700mm |
| Width |
2300mm |
| Height |
1550mm |
| Total weight |
1700kg |
Our machine of HT-F9 is
group picking and group placing
| Size |
Max size: 1200mm*330mm
Min size: 100*100mmh
|
| Thickness |
0.5--5mm |
| Mounting Clamping |
Adjustable pressure pneumatic |
| Mounting height |
≤5mm |
About the System
| O.S. |
| System |
Windows 7 |
| Display |
Touch screen monitor |
| Feeding system |
| No. Of feeders station |
68 PCS |
| No. of head |
68 PCS |
| Feeding way |
Electric feeder with double motor |
