一. Product Description

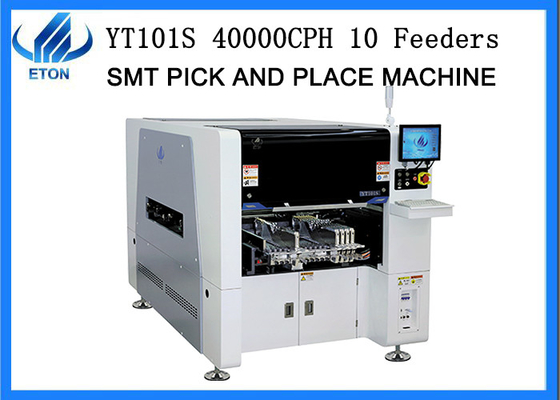

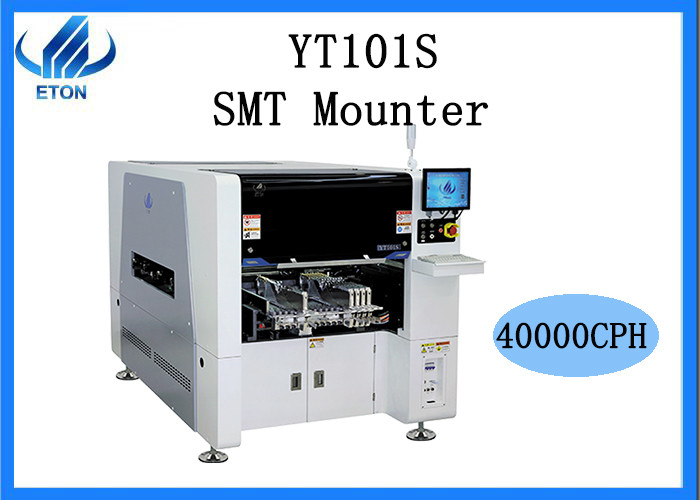

YT101S ranks in eton honor series.
Support component 0201-40*40mm tape reel package Such as BGA, CSP, QFP, etc.
Suitable for various home appliance driver boards, TV displays and various LED lights
二. Parameter
| Brand Name |
Eton |
| Model Name |
YT101 |
| Length*width*height |
2317*1376*1762 |
| Weight |
1700kg |
| capacity |
80000CPH |
| voltage |
AC380V 50Hz |
| No of camera |
2sets (digital camera)
Vision alignment+ Mark correction
|
| No. of head |
10 |
| No. of feeder station |
16 |
| Drive motor |
High-end magnetic linear motor＋ servo motor |
| Warranty |
1 year |
| Place of orgin |
Guangdong, China |
|
三. Features
machine advantages
High-speed multi-module magnetic head: suitable for ultra-small chips 0201~40*40mm, and wider component range.
Brand New Flight Vision Camera
Improve recognition performance,size up to 40mm*40mm,apply to BGA or CSP etc.
Vacuum Sensing Device Each placement head with independent detection function, which improves the stability of the equipment and the
reliability of the product. Adopt High-end magnetic linear motor, servo system and multi function modular head, the capacity increased by 25% compared with traditional machine,optimum placement speed reach 40000 CPH.
Intelligent Electric Feeder
Support YT series double head intelligent electric tape reel feeder ,by optically correcting the feeding position of the component ,it can achieve stable , accurate and high-speed feeding.
四. Company Profile
Since its establishment in 2011, ETON has become one of the leaders in the global photoelectric high-speed Mounter after nearly ten years of development. The high-speed machine developed by ETON has changed the market price of LED lamps, obtained various certificates and applied for more than 100 invention patents.
a. ETON sits in Baoan District, Shenzhen city, a prosperous and potential place, full of opportunities.
b. We own our own industrial area, total 5w m²,equipped with production centre, R&D center and quality inspection center, which can assure you by powerful company ability.
c. We account 90% market share in China, and our products have exporeted to various countries, encompassing India, the United States, Eygpt, etc.
d. We provide various premium various products for your multiple needs.
五. Package and Delivery
Packaging: standard export packaging or customized packaging.
Step 1. Pack the machine with foam cotton and then strech the film to protect the outside of the machine
step 2. Put the desiccant in the vacuum trag to prevent moisture
Step 3. Professional wooden box packging
