High Speed SMT Placement Machine SMT Production Line For Flexible Strip

一. Product Description

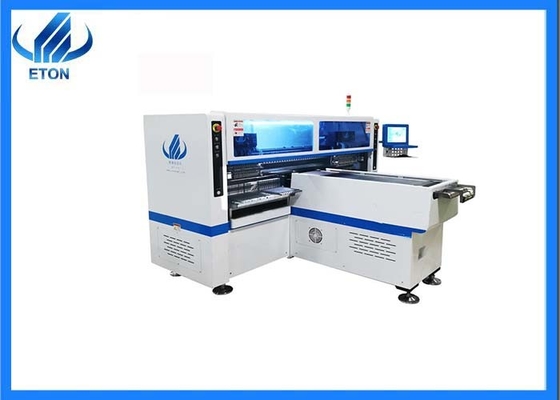

Dual arm magnetic linear highspeed mounter for flexible strip (no wire). It can mount wide components, including LED3014,3020,2835,5050 and suitable resistors,capacitors, bridge rectifier etc. Then products, like LED strip, can be achieved.

二. Parameters table

三. Feature

High productivity

ETON tech adjustable placement head.

Component picking position can be adjusted according to PCB pad pitch, min 6.5mm. unique design component leaking detection and indivisual component refill function: recognition camera record the component leaking position of PCB, and fill the missing component accordingly.

Ultra high speed capacity

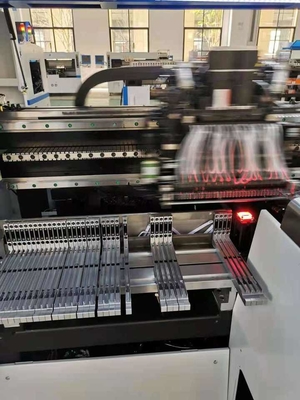

The placement head adopt the measure of two times picking and once placing and thus the placement head is greatly minimized with the improved placement way, excellent optimunm capacity reach 500000CPH.

Flexible production

Adjust the conveying platform according to roll to roll strip.range 250(±10mm), the max length range is 1M per cycle. The distance of feeder station can be adjusted to achieve group picking and group placing, so as to realize the function of two times picking and once placing.

The range of feeder station is double of placement head, producing four kinds of material at the same time. Intelligent electric feeder, supporting high-speed machine series.

四.Company belief

Eton just took 10 years to be the top smt machine supplier in China, which attest the ability of eton in the smt field. The domestic market share and our exports to more than 30 countries again corroborate the credibility of eton to make you satisfied.

Eton is not only in the leading position in the photoelectric high-speed smt machine, but also has made breakthrough progress in the field of high-speed placement machines, which are widely used in lighting, LED display, electronics field, power deriver, home appliance, new energy and other industries.

Eton aims to "build a world- class enterprise, and is committed to continuously providing the market with products and services that are "more intelligent, more professional, more efficient, and lower consumption. "

五. Package and Delivery

Packaging: standard export packaging or customized packaging.

Step 1. Pack the machine with foam cotton and then strech the film to protect the outside of the machine

step 2. Put the desiccant in the vacuum trag to prevent moisture

Step 3. Professional wooden box packging

六. service

Pre-sale:

A. Provide professional advice on SMT production line.

B. Recommend the most suitable model according to the product.

C. Provide the best quotation at ex-factory price

After-sales:

A. Before shipment, the machine will be tested.

B. Provide machine-free installation training, video training and online training.

C. Professional after-sales team, solve problems in the first time.
