Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Application: | SMT Production Line |
| Power Supply: | 380AC 50HZ | Condition: | 100% Original |
| Weight: | 1700kg | Mounting Speed: | 45000cph |
| Dimension: | 2550*1650*1550mm | Feeders: | 12 |
| Pcb Thickness: | 0.5~5mm | ||
| High Light: | 12pcs Head LED Bulb Making Machine,Multifunctional Mounting Machine,12pcs Head SMT Pick Place Machine |
||
Product introduce

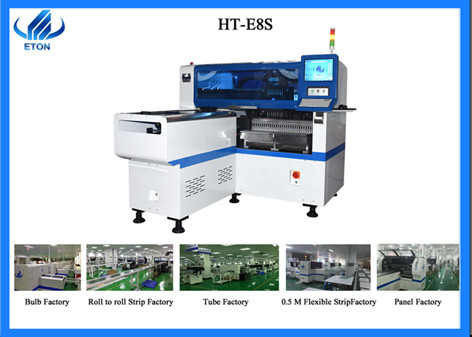

HT-E8S is a multifunctional mounting machine independently developed and produced by ETON, with an optimal production capacity of 45000 CPH. This machine can be installed with large shaped components such as lamp beads, lenses, capacitors, resistors, IC, and is equipped with imported high-precision linear magnetic levitation motors and servo motors.
Parameter
| Product name | mounting machine |

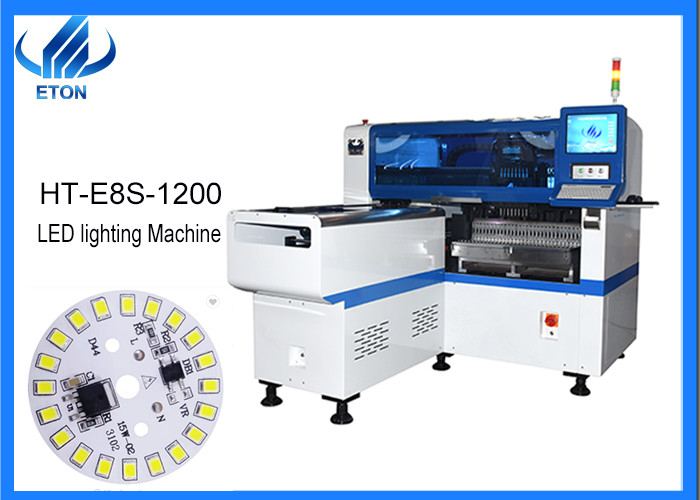

| Product model | HT-E8S-1200 |
| Length | 2550mm |
| Width | 1650mm |
| Height | 1550mm |
| Total weight | 1700kg |
| PCB thickness | 0.5-5mm |
| PCB clamping | Adjustable pressure pneumatic |
| Systems | Windows 7 |
| Input device | Keyboard,mouse |
| Software | R&D independently |
| Mounting mode | Group picking and separate placing ,separate to pick and separate to stick |
Feature
1,The mounting machine x-axis enters and exits the PCB board and is pasted while entering and leaving. It adopts linear motor, servo motor and stepping motor, which has higher precision and longer service life.
2,Mark camera identification, scan the reference point of PCB board to prepare for the preparation of mounting program, and flight identification camera identifies whether there is material leakage, so as to ensure the high accuracy of mounting.
3,While producing a variety of PCBA, it can also mount lenses, IC and various special-shaped components.The minimum mounting components range is 0402, the maximum mounting components range is 15mm, and the maximum width span of the components is 17mm,The production capacity can reach 45000 CPH (The optimum conditions).
Our advantages
Rich experience in SMT Industry Line. ETON set up more than 10 years, we are leading manufacturer of SMT machine in China.
Our machines are of better quality, more accurate and faster to mount. We also have our own exclusive patented technology such as dual motor electronic Feeder feeding system, flight identification visual alignment, group picking and group placing and so on.
Related machine

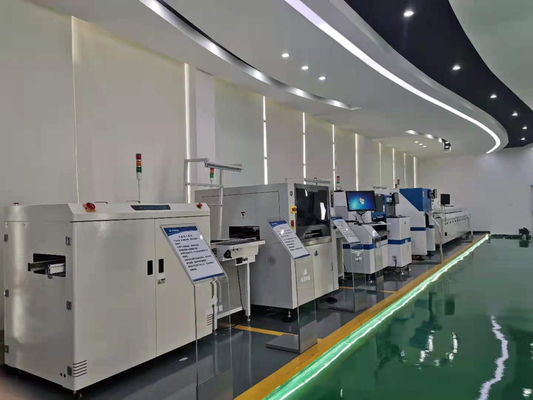

We not only provide the pick and place machine, also provide the smt peripleral equipment, such as Loader machine, Conveyor machine, Stencil printer machine, Reflow oven machine, Unloader machine, Solder paste mixer, Roll to roll led strip light assembly machine ,AOI, SPI, etc.
FAQ
Q1: What is the application scope of your product?
A:Our products have great advantages in the production of LED lamp drivers and light source. If you are an LED lamp manufacturer or are transferred to this industry, we can provide you with more information.
Q2: Have you obtained any certificates for your products?
A:Yes,Our machine has won many certificates, such as CCC, CE, Sira, and our enterprise has won the national high-tech award because of its strong R & D strength.
Q3: What are the advantages of R&D independently software?
A:Customizable in different languages, lifetime free upgrades, and a complete after-sales service system.
