一.Product Description

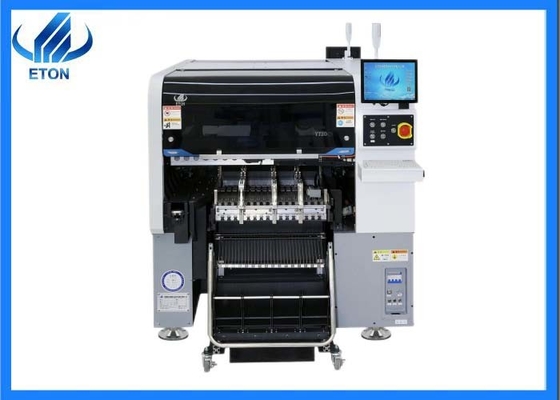

ETON brand YT20 belongs to ETON HONOR SERIES. Different from the other non-honor series, YT20 can mount wider components, ranging from 0201 to 40*40mm.
Besides, the mounting height range is wide, suitable for any components equal or under 20mm. Honor series can really satisfy your multiple needs.
Wanna know more infomation? Please scan the following.
二. Parameter table
| Model Name |
YT20 |
| Length*width*height |
2788*1688*1375 |
| Weight |
1700kg |
| capacity |
80000CPH |
| voltage |
AC380V 50Hz |
| No of camera |
6 sets (digital camera)
Bottom camera vision recognition/ Flight identificatiuon camera
Vision alignment+ Mark correction
|
| No. of head |
Double sides:20pcs(single side 10pcs) |
| No. of feeder station |
Double side docking cart slot 32PCS, tape reel packages 64PCS (single side docking cart slot 16 PCS, tape reel packages 32PCS) freely switching between doking cart and IC tray feeder) |
| Drive motor |
High-end magnetic linear motor＋ servo motor |
| Warranty |
1 year |
| Place of orgin |
Guangdong, China |
三. Details showing
1. grating rule imported from Germany
Utilizing the optical theory of grating, it can measure and feedback devices with high precision and high speed, determining the high precision of the mounting process of module
2. feeder
YT20 has two module, and each module has 10 heads.
| Double side docking cart slot 32PCS, tape reel packages 64PCS (single side docking cart slot 16 PCS, tape reel packages 32PCS) freely switching between doking cart and IC tray feeder) |
Wanna see more details? --just quick to contact Regina, whatsapp:+8613632793382.
四. About us
Shenzhen ETON Automation Equipment Co.,Ltd. was established in 2011while successfully reseached and produced the first machine in 2007. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripherial automation equipment. ETON has SMT high-speed pick and place machine division, precision solder paste stencil printer division, high-speed precision dispensing equipment division and SMT peripherial automation equipment division.
Eton is not only in the leading position in the photoelectric high-speed smt machine, but also has made breakthrough progress in the field of high-speed placement machines, which are widely used in lighting, LED display, electronics field, power deriver, home appliance, new energy and other industries.
Eton aims to "build a world- class enterprise, and is committed to continuously providing the market with products and services that are "more intelligent, more professional, more efficient, and lower consumption. "
五. Package and Delivery
Packaging: standard export packaging or customized packaging.
Step 1. Pack the machine with foam cotton and then strech the film to protect the outside of the machine
step 2. Put the desiccant in the vacuum trag to prevent moisture
Step 3. Professional wooden box packging
六. Premium service
Pre-sale:
A. Provide professional advice on SMT production line.
B. Recommend the most suitable model according to the product.
C. Provide the best quotation at ex-factory price
After-sales:
A. Before shipment, the machine will be tested.
B. Provide machine-free installation training, video training and online training.
C. Professional after-sales team, solve problems in the first time.
七. Exhibition
We have attented many exhibitions home and abroad like Guangya Exhibition, Shanghai Munich Exhibition and so on. Next month we are going to Eygpt and India. Wanna more information ,contact Regina for convenience. Whatsapp: +8613632793382 Or e-mail: Regina@eton-mounter.com
