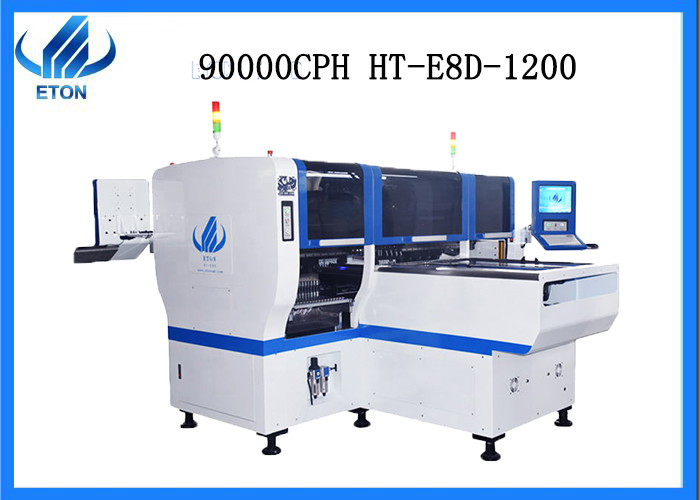

Multifunctional Pick And Place Machine 90000 CPH 24 Heads For LED Light

Multifunctional Pick And Place Machine 90000 CPH 24 Heads For LED Light
Multifunctional Pick And Place Machine 90000 CPH 24 Heads For LED Light Multifunctional Pick And Place Machine 90000 CPH 24 Heads For LED Light

Large Image :  Multifunctional Pick And Place Machine 90000 CPH 24 Heads For LED Light

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CCC CE SIRA
Model Number: HT-E8D
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: vacuum package,wooden case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 50 sets/month
Contact Now
Detailed Product Description

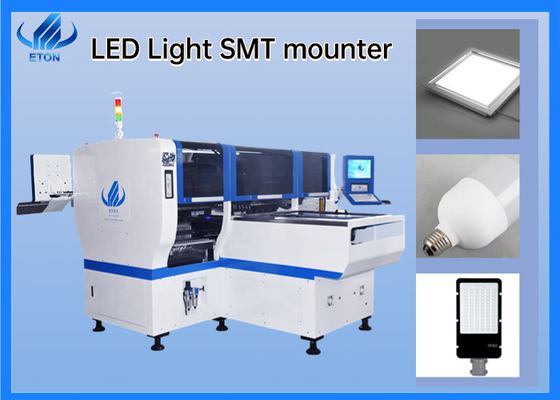

Warranty: 1 Year Application: Downlight, LED Bulbs,street Light,power Drive
Condition: 100% Original Feeders: 48 PCS
Dimension: 3150*2250*1650mm Mounting Speed: 90000CPH
Power Supply: 380AC 50HZ Weight: 2500 KG
Highlight:

Multifunctional Pick And Place Machine CCC

,

24 Heads Pick Place Machine

,

downlight Pick Place Machine





Multifunctional pick and place machine LED light





Machine Highlights

  • Mounting components: LED chips,capacitors,resistors,lens,IC,shaped components,etc
  • Component:Min. Size 0402 Max.height 15 mm
  • Imported Camera 4 sets :   Vision for the flight identifica
  • Adopt High-end magnetic linear motor and servo system
  • The feeding way : Electric feeder with double motor





The details



About our machine outline dimension



length 3150mm
Width 2250mm
Height 1650mm
Total weight 2500kg





Our machine of HT-E8D is Double module



Size

Max size: 1200mm*300mm

Min size: 100*100mm
Thickness 0.5--5mm
Mounting Clamping Adjustable pressure pneumatic
Mounting mode Group picking and separately placing,Separately picking and separately placing
Mounting height <15mm(Automatic Changing)
Mounting speed 90000 CPH





About the System



O.S.
System Windows 7
Display Touch screen monitor
Input device Keyboard, mouse
Feeding system
No. Of feeders station 48 PCS
No. of head 24 PCS



About Transmission



Conveyor transmission Max length:1200mm
Transmission speed >1000mm/sec
Transmission direction Both direction(option)
Transmission mode Auto Online drive





PAYMENT





  • Standard payment terms: 100% T/T before shipping



  • Online trade assurance order, all is up to you.



  • More payment terms could be provided (T/T, PAYPAL, western UNION)







SHIPPING

  • It takes about 3 working days to arrive your address by DHL, TNT, FEDEX. And it take about 25-35 workdays to arrive your address by sea.



  • Professional goods shipping forwarder.





AFTER SALES SERVICE



Global Service Office: India ·Turkey · Vietnam ·Egypt · Pakistan

  • Professional solutions :

Provide professional SMT Full line solutions.

  • Free Warranty:

One-year warranty factory service. All parts damaged within the warranty period shall be replaced free of charge.

  • Free installation-On-site free installation to ensure smooth production.
  • Free Technical Training: Professional training of operating and maintenance.
  • Free Technical Support: 7 *24 technical online support.
  • Free Software Upgrade: Offer free software upgrade whole lifetime







Packaging and Transportation

  • Packaging method:
  • Standard production packaging or customized packaging
  • Port of shipment:Shenzhen
  • Production period:
  • 30 days (≤50days) If it is more than 50, it will be discussed again



Multifunctional Pick And Place Machine 90000 CPH 24 Heads For LED Light 0
