Machine main parameter
|
No. of Camera
|
4 sets of imported camera |
| Vision for the flight identification, MARK correction |
| Mounting Precision |
±0.04mm |
| Mounting Height |
<15mm (Automatic Changing) |
| Mounting Speed |
90000 CPH |
| Components |
LED , capacitors, resistors, IC,shaped components, etc. |
| Components Space |
0.2mm |
| No. of Feeders Station |
48 PCS |
| No. of nozzles |
24 PCS |
| Power |
380AC 50HZ |
| Power Consumption |
8 KW |
| Operating Environment |
23℃±3℃ |
| Conveyor transmission |
Max length :1200 mm |
| Transmission Speed |
＞1000mm/sec |
| Transmission Direction |
Both direction (option) |
| Transmission Mode |
Auto online drive |
| Air supply |
0.4-0.6mpa (4-6kgf/cm2)300N/min |
| Electrical control |
Independent research and development by ETON |
| Motion control card module 2 set |
Independent research and development by ETON |
| X,Y,Z Axis Drive way |
High-end magnetic linear motor + Servo motor |
| Feeding way |
Electric feeder with double motor |

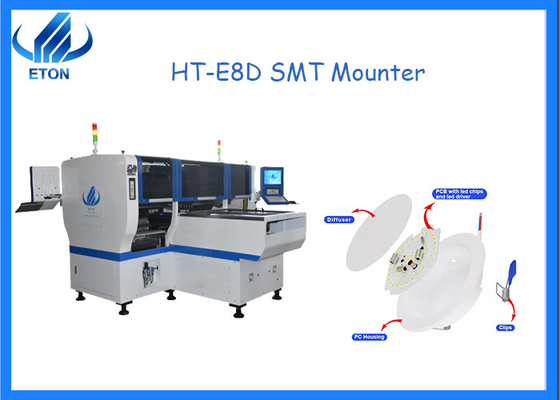

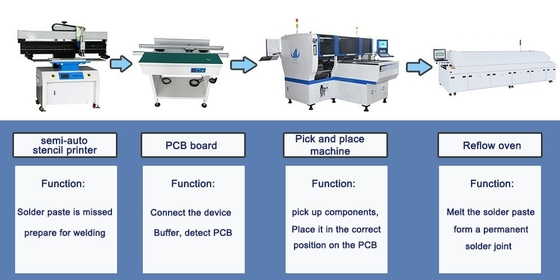

HT-E8D is a dual-mode multi-function machine. Each module has a set of programs to control independently.
HT-E8D-600 and HT-E8D-1200 two kinds of module, suitable for most factories’ needs.
The speed reaches 90000cph,24 PCS Mounting heads.
Feature of HT-E8D
- PCB Max size:1200*300mm
- Non-stop material re-loading function
- Automatic optimization after coordinate generation
- Two different products can be installed at the same time
- Support customization, such as the number of heads, PCB board size, etc

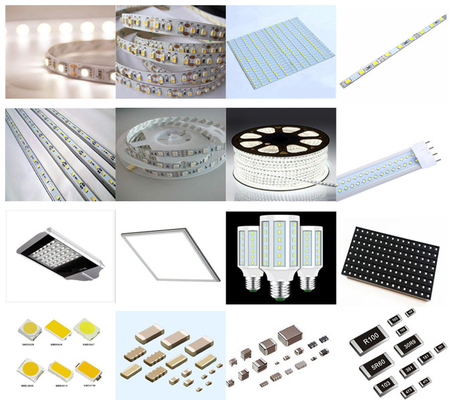

Applicable to a variety of production scenarios:
It can mount capacitors,resistors,LED3014/3020/3528/5050,IC and shaped components. It applies to power driver,electric board,lens,linear bulb,household appliance and etc.
With such high speed, applicability, practicability and versatility, it has become one of the most popular machines.
Maintenance period 1 year
One year warranty, during warranty, any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.
Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients.
Five test methods of PCBA
PCBA process is complex. In the production and processing process, various problems may occur due to improper equipment or operation, which can not guarantee that the products produced are qualified. Therefore, PCBA test is required to ensure that each product will not have quality problems.
PCBA test mainly includes five forms: ICT test, FCT test, aging test, fatigue test and test in harsh environment.
- ICT test: including on-off, voltage and current values, fluctuation curve, amplitude, noise, etc.
- FCT test: it is necessary to burn ic program, simulate the function of the whole PCBA board, find problems in hardware and software, and equip necessary production fixtures and test racks. This test requires the functional description provided by the customer and the support of the customer tester to complete this test
- Fatigue test: sample the PCBA board, operate the function at high frequency and for a long time, observe whether there is failure, and judge the probability of failure in the test, so as to feed back the working performance of Printed Circuits Board in electronic products.
- Testing in harsh environment: the PCBA board is exposed to the temperature, humidity, drop, splash and vibration of the limit value to obtain the test results of random samples, so as to infer the reliability of the whole batch of PCBA board products.
- Aging test: power on PCBA board and electronic products for a long time, keep them working, and observe whether there are any failure faults. Electronic products after aging test can be sold in batches.
