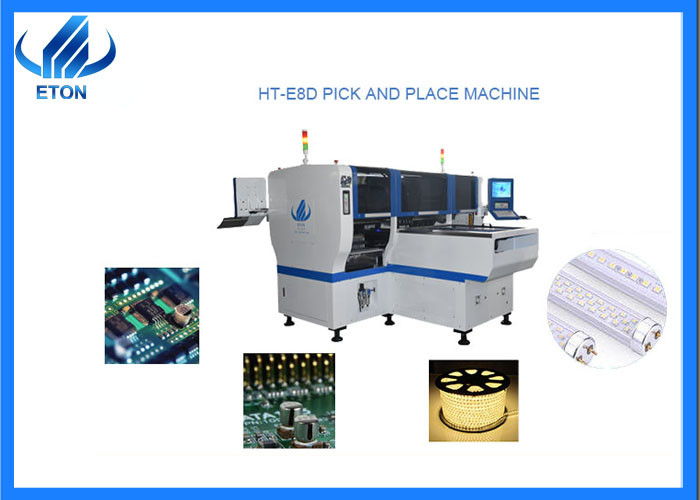

Dual arm ETON HT-E8D-1200 magnetic linear motor 90000CPH pick and place machine
Machine main parameter
|
No. of Camera
|
4 sets of imported camera |
| Vision for the flight identification, MARK correction |
| Mounting Precision |
±0.04mm |
| Mounting Height |
<15mm (Automatic Changing) |
| Mounting Speed |
90000 CPH |
| Components |
LED , capacitors, resistors, IC,shaped components, etc. |
| Components Space |
0.2mm |
| No. of Feeders Station |
48 PCS |
| No. of nozzles |
24 PCS |
| Power |
380AC 50HZ |
| Power Consumption |
8 KW |
| Operating Environment |
23℃±3℃ |
| Conveyor transmission |
Max length :1200 mm |
| Transmission Speed |
＞1000mm/sec |
| Transmission Direction |
Both direction (option) |
| Transmission Mode |
Auto online drive |
| Air supply |
0.4-0.6mpa (4-6kgf/cm2)300N/min |
| Electrical control |
Independent research and development by ETON |
| Motion control card module 2 set |
Independent research and development by ETON |
| X,Y,Z Axis Drive way |
High-end magnetic linear motor + Servo motor |
| Feeding way |
Electric feeder with double motor |
HT-E8D is a dual-mode multi-function machine. Each module has a set of programs to control independently.
HT-E8D-600 and HT-E8D-1200 two kinds of module, suitable for most factories’ needs.
The speed reaches 90000cph,24 PCS Mounting heads.
Feature of HT-E8D
- PCB Max size:1200*300mm
- Non-stop material re-loading function
- Automatic optimization after coordinate generation
- Two different products can be installed at the same time
- Support customization, such as the number of heads, PCB board size, etc
