Warranty: | 1 Year | Name: | SMT Pick And Place Machine |
---|---|---|---|
Weight: | 1700kg | Power Supply: | 380AC 50HZ |
Dimension: | 3100*2300*1550mm | Speed: | 250000CHP |
Feeder: | 68pcs | Program Method: | Online And Offline Ways |
Condition: | Brand-new | ||
High Light: | LED Pick And Place Machine 250000CPH,Strip LED Pick And Place Machine,68 Heads Pick Place Machine |
Product description
1,The SMT high speed mounter HT-T9 is designed with 68 suction nozzles and 68 feeding stations. It is controlled by two arms, with 34 suction nozzles controlled by one arm each. Among them, 34 suction nozzles are divided into two groups, each with 17 nozzles, and each group is jointly controlled by a servo motor and a corner motor.
2,The four different materials of a product can be pasted simultaneously, which can accelerate product production without affecting high productivity.
3,The mounter HT-T9 is suitable for one-time mounting of soft light strips with a length of 5 meters, 20 meters, 50 meters, or even more.
4,During mounting, a single plate of material can be attached separately, and the same plate of material is always attached to the same light bar.
5,Calibration automatically,high precision,available for RGB.
6,Exclusive patent technology:group to take and group to mount.
Equipment Details
The stator itself is a permanent magnet, and the interaction between the moving stator and the magnetic pole causes repeated movement of the mounting head.
Transport the PCB board to the designated location,the platform has an adsorption function, which is conducive to adsorption of soft PCB boards.
Detect if there is a PCB on the track.
Parameter

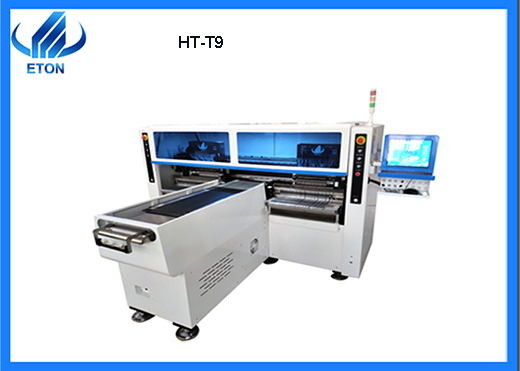

Product name | SMT high speed mounter |
Model | HT-T9 |
PCB size(mm) | Max:250*any length |
Mounting precision | ±0.05mm |
Mounting height | ≤5mm |
Mounting speed | 200000-250000CPH |
Components | LED3010/3020/5050/3525 resistors, capacitor, etc. |
Components space | 0.5mm |
No.of feeders station | 68 PCS |
No.of heads | 68 PCS |
Positioning way | Optical |
Feeding way | Electric feeder with double motor |
X,Y Axis drive way | High-end magnetic linear motor and servo motor |
