| Warranty: | 1 Year | Condition: | New |
|---|---|---|---|
| Name: | Semi-automatic Stencil Printer Machine | Brand: | ETON |
| PCB Size: | 1200×300 Mm | Power: | 220V Single Phase, 50/60 HZ |
| High Light: | SMT Solder Paste Printer Machine,Single Phase Solder Paste Printer Machine |
||
1.2m PCB solder paste printer machine ET-S1200 in SMT production line
Semi-automatic stencil printer machine introduction:
1.Semi-automatic printing machine is mainly used in SMT semi-automatic production line, located at the front end of SMT production line,which mainly Printing the solder paste on the PCB board in preparation for the next step.
2.It is suitable for the printing of soft and hard circuit printing and the liquid photosensitive solder resist green paint printing of multi-layer circuit boards, and can be used for printing fine circuits, etc. Can be customized for different structures and processes, low production cost, strong applicability.
Semi-automatic stencil printer machine features:
1.The governor motor drive scraper, combining precision linear guide, ensure the printing precision;
2.Printing scraper can rotate 45 degrees of fixed upwards, printing plate and scraper cleaning and replacement;
3.The scraper holder can adjust forward and backward, to select the suitable printing position;
4.Combined printing platen, has a fixed groove and positioning PIN, easy installation and adjustment, it is used for single and double panel printing;
5.Steel bar-mesh mobile school edition way, combined with the printing machine (PCB) XYZ calibration adjustment, convenient and quick.
6.Can be set unidirectional and bidirectional multiple printing methods
Machine Technical parameter:
| Model | ET-S1200 |
| PCB size | 1200×300 mm |
| Plate Area | 1250×320 mm |
| Stencil Frame Size | 470×370 mm～1300×550 mm (L×W) |
| Positioning way | positioning pin |
| Scraper Speed | 0-100 mm/sec |
| Power | 220V single phase, 50/60 HZ |
| Power Consumption | 120 W |
| PCB plate thickness | 0.2-2.0 mm |
| Plate Trimming | Front/back +/- 10mm Right/Left +/- 10mm |
| Printing Precision | +/- 0.05 mm |
| Air supply | 5-7 KGF/cm2 |
| Weight | 360 kg |
| Dimension | (L)1600 x(W)900 x(H)1650 mm |
Application:

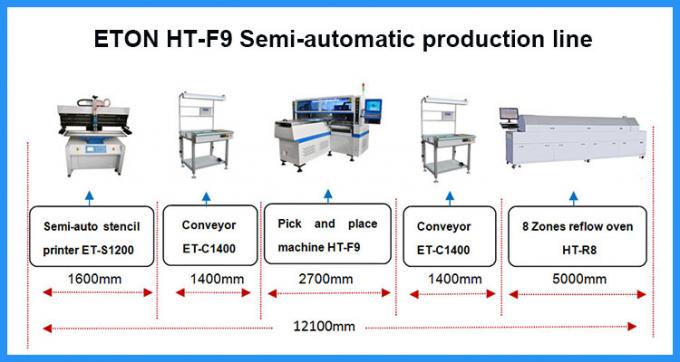

Semi-automatic printing machine is mainly used in SMT semi-automatic production line, located at the front end of SMT production line,which mainly Printing the solder paste on the PCB board in preparation for the next step.

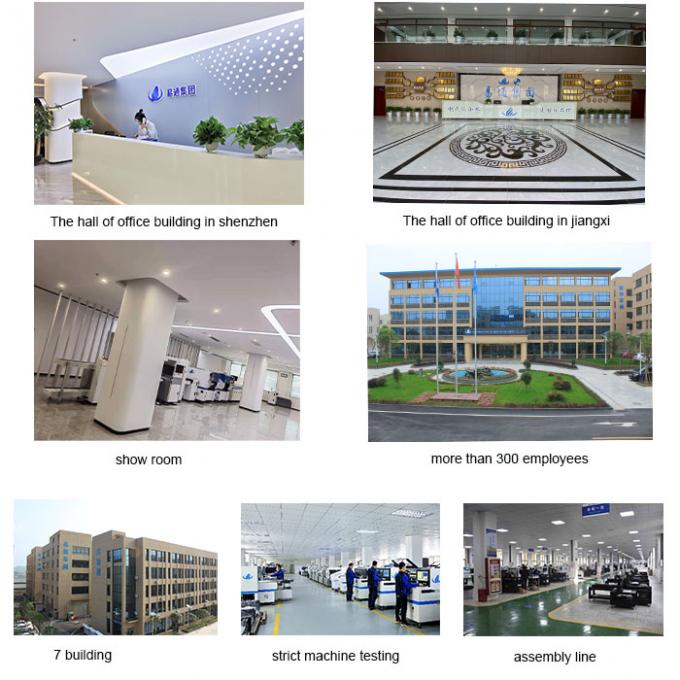

Company profile:
Shenzhen ETON Automation Equipment Co. LTD. is a leading manufacturer of automatic high-speed pick and place machine focusing on “High efficiency Low consumption” in the word, meanwhile ETON is also the largest high-tech manufacturer in China with strong capability of design, R&D, manufacturing, sales and service.
1.We have our own industrial park with an area of 50,000 square meters, which is specially used to develop and manufacture various SMT equipment.
2.More than 15 years LED lighting field experiences , provide the most suitable SMT program to every client.
3.Has own professional R&D team, has Indian engineer, Indian office,Egypt engineer, etc. Can provide support promptly.
