Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Application: | Power Driver、DOB Bulbs、 Lens 、electric Board |
|---|---|---|---|
| Dimension: | 3150*2250*1650mm | Weight: | 2500 KG |
| Mounting Speed: | 90000CPH | Feeders: | 48 PCS |
| Power Supply: | 380AC 50HZ | Condition: | 100% Original |
| High Light: | Double module SMT machine,24 Heads SMT machine,Street Light SMT machine |
||
NON-Stop material re-loading
Double-module Multifunctional pick and place machine

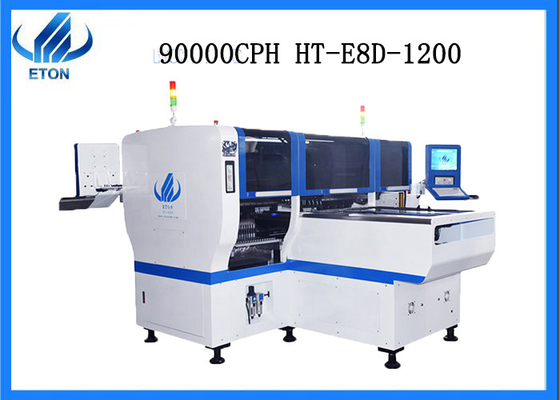

HT-E8D is Double module magnetic linear motor multifunctional pick and place machine.
Possess Electronic feeder feeding system,Vision alignment flight identification,MARK correction,Non-stop material re-loading function and Auto-optimization after coordinates generated.
Product Description

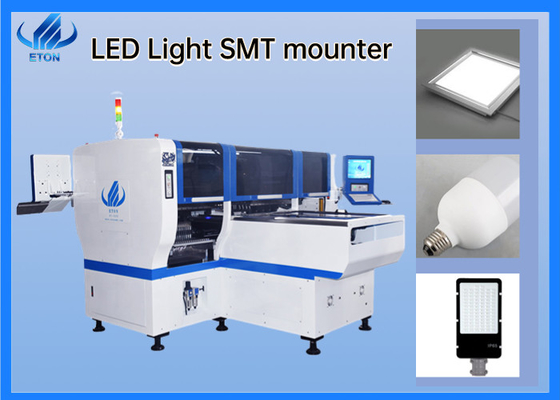

The HT-E8D-1200 is a dual module maglev multi-function high-speed SMT mounter. This model of dual module is controlled by two systems, and each module is controlled by a set of independent programs. The two modules are independent of each other, which means that two PCB can be produced simultaneously and two different products can be manufactured.
The details
About our machine outline dimension
| length | 3150mm |
| Width | 2250mm |
| Height | 1650mm |
| Total weight | 2500kg |
Our machine of HT-E8D is Double module
| Size |
Max size: 1200mm*300mm Min size: 100*100mm |
| Thickness | 0.5--5mm |
| Mounting Clamping | Adjustable pressure pneumatic |
| Mounting mode | Group picking and separately placing,Separately picking and separately placing |
| Mounting height | <15mm(Automatic Changing) |
| Mounting speed | 90000 CPH |
About the System
| O.S. | |
| System | Windows 7 |
| Display | Touch screen monitor |
| Input device | Keyboard, mouse |
| Feeding system | |
| No. Of feeders station | 48 PCS |
| No. of head | 24 PCS |
About Transmission
| Conveyor transmission | Max length:1200mm |
| Transmission speed | >1000mm/sec |
| Transmission direction | Both direction(option) |
| Transmission mode | Auto Online drive |
Suction nozzle type
|
3014
|
3014,4014,2020, small resistance, capacitance, etc |
| 3528 | 3528,5630,5730, small resistance, capacitance, etc |
| 5050 | 5050, IC, heterosexual components, large resistance, capacitance, etc |
AFTER SALES SERVICE
Global Service Office: India ·Turkey · Vietnam ·Egypt · Pakistan
Provide professional SMT Full line solutions.
One-year warranty factory service. All parts damaged within the warranty period shall be replaced free of charge.
