Product Details:
Payment & Shipping Terms:
|
| Length*width*height: | Length*width*height | PCB Size: | Max 1200*330mm Min 100*100 |
|---|---|---|---|
| PCB Clamping: | Adjustable Pressure Pneumic | Capacity: | 250000CPH |
| High Light: | High Speed Pick And Place Machine 380V,High Speed Pick And Place Machine Professional,25w CPH SMT Pick Place Machine |
||
一.Product Description

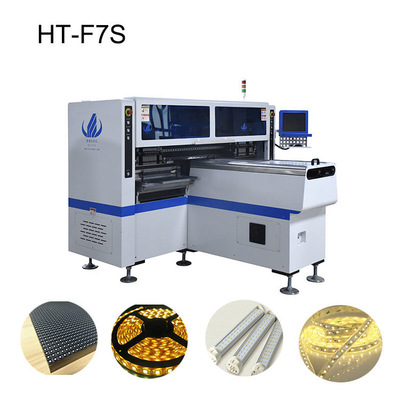

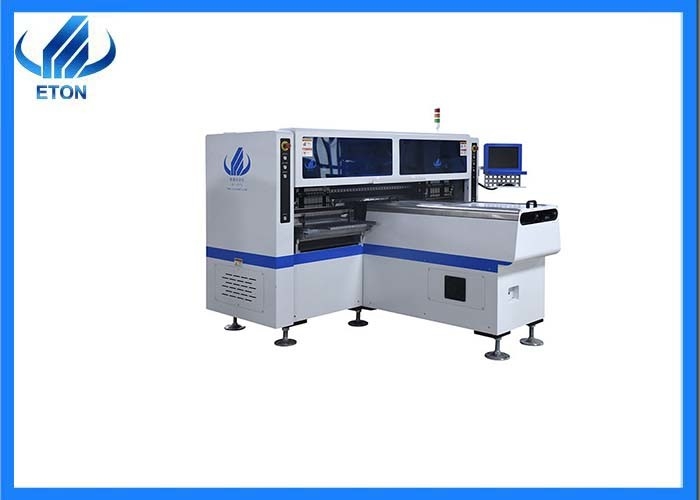

HT-F7S is a dual arm machine. It has wider mountable components than HT-T9 which is designed especially for flexible strip while HT-F7S can mount led tube, panel light as well as flexible strip. So if you have wider demands, just don't hesitate to contact for this model. [whatsapp: +86 13632793382]
二. Parameter table
| Brand | Eton |
| Model name | HT-F7S |
| Length*width*height | 2700*2300*1550 |
| weight | 1700 |
| PCB size | Max 1200*330mm Min 100*100 |
| PCB thickness | 0.5~5mm |
| PCB clamping | Adjustable pressure pneumic |
| Mounting mode | Group to take and group to mount |
| Mounting height | ≤5mm |
| Capacity | 250000CPH |
| Voltage | AC 380V 50Hz |
| Drive motor | High-end magnetic linear motor＋servo motor |
| No. of camera | 5 sets digital camera |
| Vision alighment ,Mark correction | |
| No. of head | 34PCS |
| No. of feeder station | 68PCS |
| Warranty | 1 year |
| Place of orgin | Guangdong, China |
三. Features
1. Apply to the 0.6 M, 0.9 M, 1.2 M rigid PCB and 0.5 M, 1 M LED flexible strip. Producing with 2~4 types of synchronously. ,
2. Calibration automatically, high precision, available for RGB. materials with high capacity. available for board with any proportion of LED chip and resistor.
3. Two mounting modules, 17 nozzles for each mounting part, part A and part B can be mounted separately or Exclusive patent technology: Group to pick and group to mount.
四. About us
1. Eton is not only in the leading position in the photoelectric high-speed smt machine, but also has made breakthrough progress in the field of high-speed placement machines, which are widely used in lighting, LED display, electronics field, power deriver, home appliance, new energy and other industries.
2. High-quality professional training. We provide door-to-door training for engineers, support online video training, share video training, and replace core components free of charge during the warranty period. We can also provide professional production line solutions
3. Eton aims to "build a world- class enterprise, and is committed to continuously providing the market with products and services that are "more intelligent, more professional, more efficient, and lower consumption. "
五. Exhibition
We have attented many exhibitions home and abroad like Guangya Exhibition, Shanghai Munich Exhibition , Eygpt exhibition and so on. Next month we are going to Eygpt and India. Wanna more information ,contact Regina for convenience. Whatsapp: +8613632793382 Or e-mail: Regina@eton-mounter.com
六. Patent
七. after-sale service
Global Service Office: India ·Turkey · Vietnam ·Egypt · Pakistan
Provide professional SMT Full line solutions.
One-year warranty factory service. All parts damaged within the warranty period shall be replaced free of charge.
