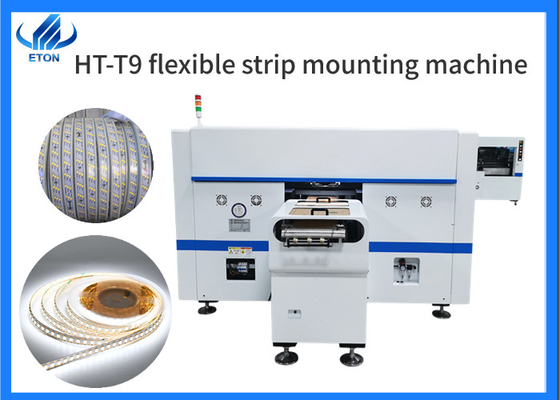

250000 CPH Dual arm magnetic linear high-speed mounter
HT-T9 is the professional high-speed mounter in our company.
Capacity reach 250000 CPH,
Realize Efficient production
THREE HIGH
Producing with Producing 4 types materials at the same time with high capacity.Capacity reach 250000CPH
It’s repeat precision is ±0.02mm(Repeat precision).
Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
Application
Available for 5M, 50M or any length of Flexible strip and Roll to roll.
Machine highlights
- Calibration automatically, available for RGB
- Adopt High-end magnetic linear motor and servo system
- The feeding way : Electric feeder with double motor
- Digital Camera 5 PCS : Vision for the flight identification,MARK correction
Exclusive patented technology
- R&D Independently Electronic control
- R&D Independently software
- R&D Independently Motion control card module 1 set
- Exclusive patent technology: Group to pick and group to mount.
The details
About our machine outline dimension
| length |
3100mm |
| Width |
2300mm |
| Height |
1550mm |
| Total weight |
1700kg |
Our machine of HT-T9 is Double arm
| PCB Size |
250* any length |
| PCB Thickness |
0.1--0.5mm |
| Mounting Clamping |
Vacuum adsorption,cylinder clamping,
track width adjustable
|
| Mounting height |
≤5mm |
About the System
| O.S. |
| System |
Windows 7 |
| Display |
Touch screen monitor |
| Feeding system |
| No. Of feeders station |
68 PCS |
| No. of head |
68 PCS |
About Transmission
| Conveyor transmission |
Max length:1000mm |
| Transmission speed |
>500 mm/sec |
| Transmission direction |
Single
(left→right/right→left)
|
| Transmission mode |
Online drive |
| Position way |
Optical |
Other
| Operating environment |
23℃±3℃ |
| Air supply |
0.4-0.6mpa (4-6kgf/cm²)150N/min |
AFTER SALES SERVICE
Global Service Office: India ·Turkey · Vietnam ·Egypt · Pakistan
Provide professional SMT Full line solutions.
One-year warranty factory service. All parts damaged within the warranty period shall be replaced free of charge.
- Free installation-On-site free installation to ensure smooth production.
- Free Technical Training: Professional training of operating and maintenance.
- Free Technical Support: 7 *24 technical online support.
- Free Software Upgrade: Offer free software upgrade whole lifetime
Packaging and transportation
- Standard production packaging or customized packaging
- Port of shipment:Shenzhen
- Production period:
- 30 days (≤50days) If it is more than 50, it will be discussed again
