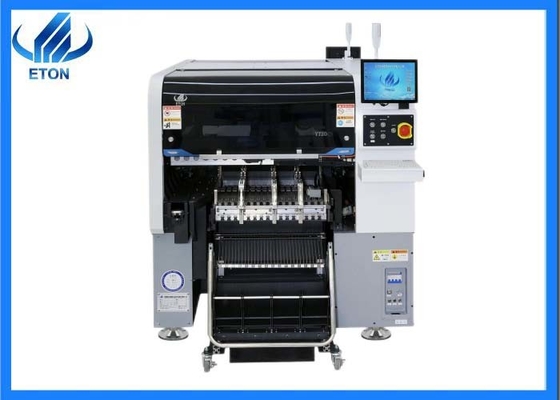

一. Product Description
1. With high-speed multi modular head and brand new flight vision camera, ETON is suitable for recognition performance, size up to 40*40mm, apply to BGA/CSP etc
2. FLEXIBLE PRODUCTION
Support Docking cart, smart double-head tape feeder and IC tray feeder,multi and flexible feeding way
3. Combine high accuracy Mark recognition camera with fixed flight vision camera, ensure placement accuracy.
二. parameters table
| Model |
YT20 |
| PCB Length Width |
Max size:500mm*450mm(single PCB) /500mm*300mm(double PCB)
Min size: 50mm*50mm
|
| PCB Thickness |
0.5-4.5mm |
| PCB Clamping |
Cylinder clamping, track width adjustable |
| Rail |
2 Rail,2 gantries(Rail 1,4 are fixed rail) |
| No. of Camera |
6 sets (Digital camera) |
| Bottom vision camera recognition/Fill identification camera |
| Vision alignment+Mark correction |
| Mounting Precision |
±0.02mm |
| Mounting Height |
≤15mm |
| Mounting Speed |
80000CPH(Optimum speed) |
| Components range |
Min 0201 ~40*40mm Tape reel packages and IC tray feeder etc. |
| No. of Feeder station |
Double side docking cart slot 32PCS,tape reel packages:64PCS(single side docking cart slot 16PCS,tape reel packages:32PCS),freely switching between docking cart and IC tray feeder IC tray feeder:Option) |
| No.of Heads |
Double side:20pcs(single side:10pcs) |
| Feeding way |
Intelligent Double head Feeder |
|
三.details of components
1. docking cart
The function of docking cart is the support of the smd components, it is the basement of feeders. Feeder install on the docking cart with the electrical and feeding the smd component nonstop.
So with docking cart spare part, there could be achieve the quickly change line to produce different product, also could connect the tape reel more convinent. Short the changing line time.
2. IC tray feeder
IC Tray feeder is using for feeding IC(QFP/BGA/etc). YT20 could be using feeder feeding and IC tray feeder at the same time. Suitable for electrical board, high precision board manufacturing.
四. company profile
Shenzhen ETON Automation Equipment Co.,Ltd. was founded in 2011. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation equipment. The company has SMT high-speed pick and place machine division, precision solder paste stencil printer division, high-speed precision dispensing equipment division, and SMT peripheral automation equipment division.
五. Clients
六. FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.what can you buy from us?
SMT Pick And Place Machine
3.why should you buy from us not from other suppliers?
Our advantage lies in: 1. Top quality: We have more than 10 years experience in SMT,we have the goods with best quality,just tell me what you need,then will do the best for you 2. Lowest price: give yo lowest price for long time cooperation
