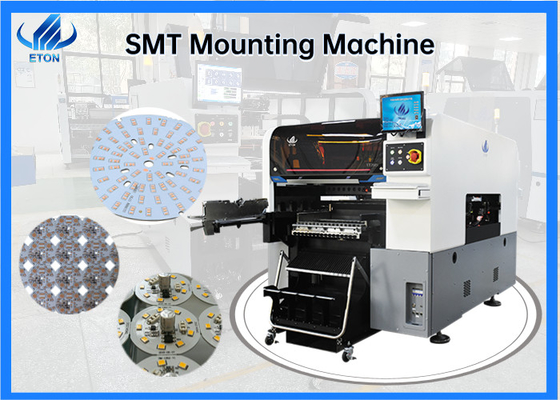

Multifunctional SMT Mounter Machine For LED Bulbs / Street Light / Downlight

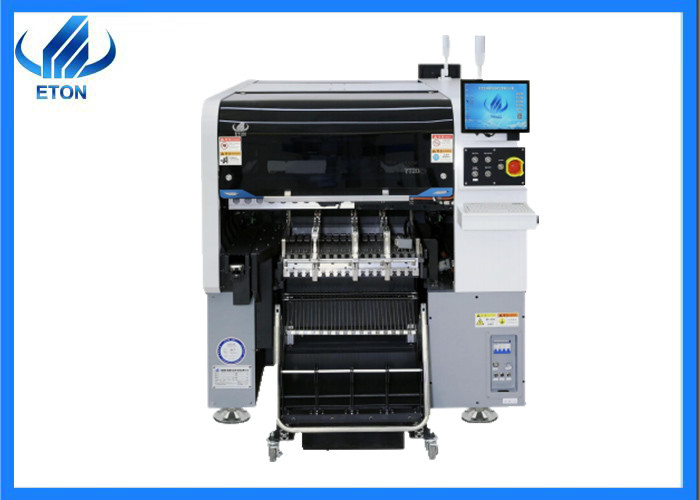

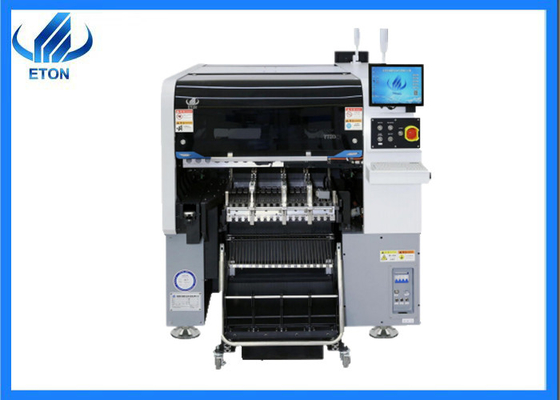

20 heads Magnetic linear motor multifunctional SMT mounter machine

YT-20 is the honor series in our company.

And it is the Multi-function machine.It has high-speed and intelligent,ultra performance.

THREE HIGH:

• High-Speed : It’s mounting speed reach 80000CPH
• High-precision : It’s repeat precision is ±0.02mm.
• High-intelligent : Non replace modular head,Apply to 0201-40*40mm tape reel package and IC tray feeder.

Machine highlights:

• High speed multi modular head:

Adopt High-speed multi modular head,apply to ultra small chip 0201~40*40mm large Chip,wider component range.

• Brand New Flight Vision Camera

Improve recognition performance,size up to 40mm*40mm,apply to BGA or CSP etc.

• Vacuum Sensing Device

Each placement head with independent detection function,which improves the stability of the equipment and the reliability of the product.

• Ultra-high-speed Capability

Flexible production:

• With corresponding component size
• Optical Recognition Camera 4 sets(MARK recognition and Fixed flight vision camera)

Adopt High-end magnetic linear motor,servo system and multi function modular head.

• Suitable for various feeders(freely switching between docking cart and IC tray feeder):

Including Docking Cart (Double side docking cart slot 32pcs,tape reel packages:64pcs; single side docking cart slot 16pcs,tape reel packages:32pcs), Smart Double-head Tape feeder and IC tray feeder

High reliability:

• The placement head adopt independent vacuum detection ,improve placement performance
• Off-Line programming,save time of changeover cycle.
• Software AI intelligent learning function and automatic optimization function.

Transmission system structure

• Two gantry,10 spindles *2 Gantry,total 20 spindles.
• Flexible PCB handing capabilities,double rail,both gantry can mount the same large PCB at the same time,realizing flexible production.
• Flexible wiring through modular placement heads and various production modes.

Exclusive patented technology

R&D Independently software

R&D Independently Electronic control

R&D Independently Motion control card module 1 set

The details

We can customize the production management MES system including your requirements.

About our machine outline dimension

Our machine of YT20 can carry single and double PCB.

About Transmission

Other

AFTER SALES SERVICE

Global Service Office: India ·Turkey · Vietnam ·Egypt · Pakistan

• Professional solutions :

Provide professional SMT Full line solutions.

• Free Warranty:

One-year warranty factory service. All parts damaged within the warranty period shall be replaced free of charge.

• Free installation-On-site free installation to ensure smooth production.
• Free Technical Training: Professional training of operating and maintenance.
• Free Technical Support: 7 *24 technical online support.
• Free Software Upgrade: Offer free software upgrade whole lifetime
