F9 PCB Pick And Place Machine 200000 CPH One Year Warranty For Panel Light

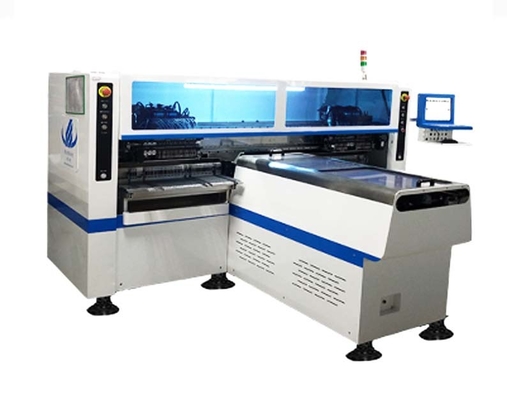

Large Image : F9 PCB Pick And Place Machine 200000 CPH One Year Warranty For Panel Light

Product Details:

Place of Origin:	Guangdong，China
Brand Name:	ETON
Certification:	CCC
Model Number:	HT-F9
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Delivery Time:	30 days
Payment Terms:	T/T

Contact Now

Detailed Product Description

Model Name:

HT-F9

Length*width*height:

2700*2300*1550

PCB Size:

Max 1200*330mm Min 100*100

PCB Clamping:

Adjustable Pressure Pneumic

Highlight:

PCB Pick And Place Machine 200000 CPH

One Year Warranty Pick And Place Machine

Pick Place Machine For Panel Light

一. Product Description

"HT-F9" ranks in high-speed series. Dual arm magnetic linear LED highspeed pick and place machine, Producing 4 types materials at the same time, capacity reach 250000 CPH.

Apply to the 0.6 M, 0.9 M, 1.2 M rigid PCB and 0.5 M, 1 M LED flexible strip.

Then products, led strip and tube, can be achieved

二. Parameter

Brand	Eton
Model name	HT-F9
Lengthwidthheight	270023001550
weight	1700
PCB size	Max 1200330mm Min 100100
PCB thickness	0.5~5mm
PCB clamping	Adjustable pressure pneumic
Mounting mode	Group to take and group to mount
Mounting height	≤5mm
Capacity	250000CPH
Voltage	AC 380V 50Hz
Drive motor	High-end magnetic linear motor＋servo motor
No. of camera	5 sets digital camera
	Vision alighment ,Mark correction
No. of head	68PCS
No. of feeder station	68PCS
Warranty	1 year
Place of orgin	Guangdong, China

三. feature

1. calibration automatically, high precision, available for RGB.

2. Exclusive patent technology :group to take and group to mount.

3. XYZ drive way High-end magnetic linear motor+servo motor.

4. electric feeder with doubler motor feeding way.

四. Delivery

step 1: deliver from factory by truck

step 2:parts packaged separately from to prevent from dust

step 3: film packaging to prevent from water and dust

step 4: vaccum packing to prevent oxidation

step 5: wooden case

五. Credentials

We got 9 invention Patents, 112 practical patents,12 software copyrights. Patent number: ZL 2011 2 0237740.9 ZL 20 11 2 0334606.0 ZL 2012 2 0178869.1 ZL 2012 2 0415505.0 ZL 2012 2 0415044.7 ZL 2012 2 0415356.8 ZL 2012 2 0415061.0

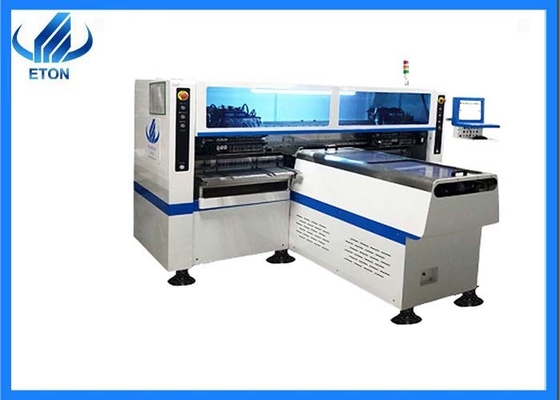

F9 PCB Pick And Place Machine 200000 CPH One Year Warranty For Panel Light 0
