Warranty: | 1 Year | Name: | SMT Pick And Place Machine |
---|---|---|---|
Power Supply: | 380AC 50HZ | Condition: | New |
Weight: | 1700kg | Mounting Speed: | 250000CPH |
Dimension: | 3100*2300*1550mm | Feeders: | 68 |
Pcb Thickness: | 0.5~1.5mm | ||
High Light: | CCC LED Bulbs SMT Mounter,High Precision Recognition SMT Mounter,68Head SMT Pick And Place Machine |
Product description
Mounting machine HT-T9 with dual arm magnetic linear,producing 4 types materials at the same time capacity reach 250000CPH. Able to produce flexible light belt products of any length at ultra high speed and roll to roll, such as 0.5m, 1m, 5m, 10m, 50m, 100m, 500m, etc.
Feature Description
1,Mounting machine is dual arm four module,17 nozzles for each mounting part,part A or part B can be mounted separately or synchronously.
2,Calibration automatically,high precision,available for RGB.
3,Unique design components leaking detection and individual component refill function.
4,Intelligent electric feeder,supporting high speed mounting machine series
5,Flight recognition camera,no pause to detect the presence and absence of component,component adsorption state,prevent placement errors.
6,The clamping rod is driven by the air cylinder to correct the material taken by mounting head.
Parameter
Product name | Mounting machine |

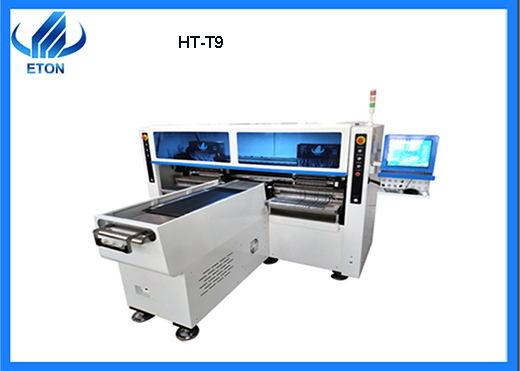

Model | HT-T9 |
PCB size(mm) | Max:250*any length |
PCB thickness | 0.5-1.5mm |
Mounting component height | <= 5 mm |
Mounting precision | ± 0.02 mm |
No.of camera | 5 PCS |
No.of nozzles | 68 PCS |
No.of feeders station | 68 PCS |
Components | LED 3014/3020/3528/5050 and resistor, capacitors,bridge rectifiers. |
Feeding way | Electric feeder with double motor |
More details
1,ETON tech adjustable mounting machine placement head,can be mounting a variety of different materials.
2,Flexibly adjust the distance between feeder station.
Cooperative customers
As a leading brand of global high-speed mounting machine manufacturer, ETON has an absolute leading market share in the LED industry. Its products are exported to more than 20 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt, Türkiye, etc.
SMT production line
The whole SMT production line machine mainly include Loader machine, full automatic stencil printer, pick and place machine, conveyor , reflow oven, unloader machine
Stencil printer:Put the solder paste on the PCB board
Conveyor: transmission the PCB board to pick and place machine
Pick and place machine:mounting the components on the PCB board
reflow oven:heating the PCB board
Our advantages
Rich experience in SMT Industry Line. ETON set up more than 10 years, we are leading manufacturer of SMT machine in China.
Our machines are of better quality, more accurate and faster to mount. We also have our own exclusive patented technology such as dual motor electronic Feeder feeding system, flight identification visual alignment, group picking and group placing and so on.
