| Warranty: | 1 Year | Application: | 0.5 M,1m Strip Light ,panel Light,LED Tube |
|---|---|---|---|
| Dimension: | 2700*2300*1550mm | Weight: | 1700KG |
| Feeders: | 68PCS | Condition: | 100% Original |
| Power Supply: | 380AC 50HZ | Mounting Speed: | 180000CPH |
| High Light: | High Capacity SMT Chip Mounting Machine,SMT Chip Mounter for LED Tube,Panel Light SMT Chip Mounter |
||

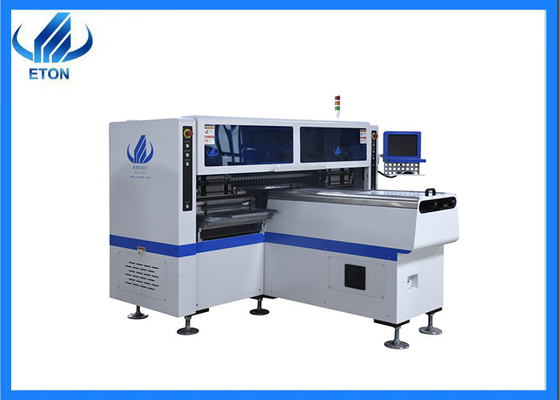

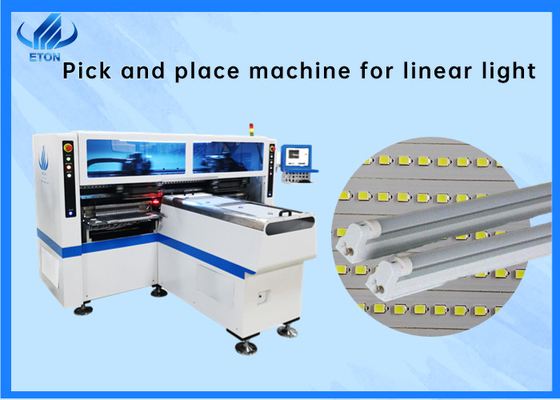

High capacity mounting machine LED tube panel light
Product description
1. This mounting machine is equipped with 34 suction nozzles and 68 feeders station. The feeding mode is double motor electronic feeder. Motor controlled winding, feeder carry out feeding, independent control, more accurate, reducing failure rate.
2.The maximum size of PCB board is 1200 * 330mm and the minimum is 100 * 100mm. The thickness of PCB board is 0.5-5mm. Can be used to make rigid boards, such as panel lamps and lamp tubes, In addition to hard boards, one of the biggest features of this machine is that it can also make soft boards, such as flexible light strips, which are used for outdoor decoration.
3.Each screw rod is controlled by a servo motor, which converts the rotary motion of the servo motor into linear motion, thereby driving the mounting machine placement head to repeatedly move on the linear guide rail to mount components. Multiple screw rods work together, and servo motor and angle motor ensure accuracy.
4,Under the optimal operating environment, the mounting machine achievable capacity of F7S is 180000 CPH, and the components that can be installed are led3014 / 3020 / 3528 / 5050 resistors, capacitors, bridges rectifiers, etc.
Parameter
| Product name | mounting machine |
| Model | HT-F7S |
| PCB clamping | Adjustable pressure pneumatic |
| Camera feature | Vision alignment,MARK correction |
| NO.of camera | 5 sets |
| display | LED touch screen monitor |
| software | R&D independently |
| Input device | keyboard & mouse |
| MAX PCB size | 1200*330mm |
| MIN PCB size | 100*100mm |
| Mounting mode | Group to pick and group to place |
| Mounting speed | 150000-180000 CPH |
| No.of heads | 34 PCS |
| No.of feeders station | 68 PCS |
| Feeding way | Electric feeder with two motor |
Machine highlights
Vision alignment , MARK correction
Exclusive patented technology
