500000 CPH Magnetic linear high-speed SMT mounter machine
Product Description

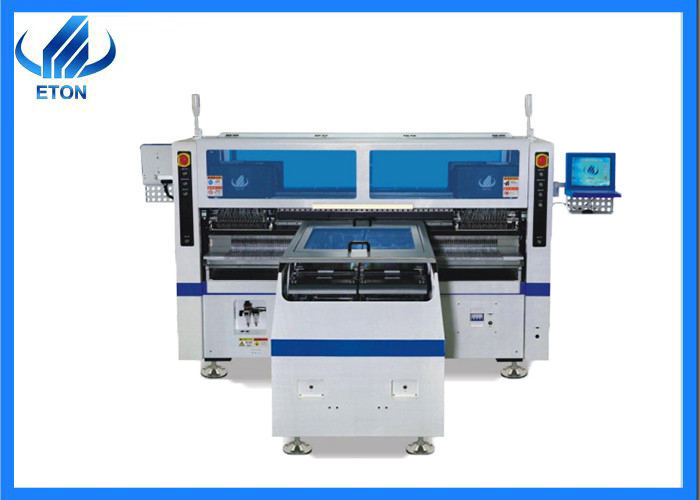

The T9-2S is ETON latest dual track, dual system, ultra high-speed mounting machine for producing LED lead-free soft lamps. It is equipped with a high-speed integrated adjustable mounting head independently developed by ETON, and supports belt mounted LED, 3014, 3020, 2835, 5050, or resistors, capacitors, bridges, etc. Under optimal conditions, the production capacity can reach 500000 CPH.
Main parameter
| Product name |
Mounting machine |
| Model |
T9-2S |
| PCB size(mm) |
Max:250(±10)*any length |
| PCB thickness |
0.5-1.5mm |
| Mounting component height |
＜＝ 5 mm |
| Mounting precision |
± 0.05 mm |
| No.of camera |
10PCS |
| No.of nozzles |
136 PCS |
| No.of feeders station |
136 PCS |
| Components |
LED 3014/3020/3528/5050 and resistor, capacitors,bridge rectifiers. |
| Feeding way |
Intelligent electric feeder with double motor |
| X,Y,Z Axis drive way |
High-end magnetic linear motor ＋ servo motor |
Main process flow of SMT
What are the elements of the SMT placement machine placing process?
Printing solder paste: Use wire mesh to leak solder paste onto PCB pads in preparation for component welding. The equipment required for this process is a solder paste printing machine, which is divided into fully automatic and semi-automatic.
Mounting: The equipment required for accurately installing surface mounted components to their corresponding fixed positions on the PCB is a placement machine.
Furnace welding:The purpose is to melt the solder paste so that the components on its surface can be combined with the PCB board. The required equipment is a reflow oven.
SMT line
Our company provides a complete mounting machine SMT wiring scheme, which can be adjusted according to your actual needs.
T9-2S semi-automatic line
T9-2S automatically line
FQA
What are the terms of payment?
A: FOB Shenzhen is OK.
How to pay after buying the product?
A:For payment, we only support T/T at present. If you choose T/T, you will have to pay 30% deposit, and the remaining amount will be paid before shipment.
How long is the product warranty period?
A:Effective within one year after installation.
EXHIBOTION
Foreign exhibition:India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition,Pakistan Exhibition, etc.
Domestic exhibition:Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED Light Exhibition,etc.
AFTER SALES SERVICE
Global Service Office: India ·Turkey · Vietnam ·Egypt · Pakistan
Provide professional SMT Full line solutions.
One-year warranty factory service. All parts damaged within the warranty period shall be replaced free of charge.
- Free installation-On-site free installation to ensure smooth production.
- Free Technical Training: Professional training of operating and maintenance.
- Free Technical Support: 7 *24 technical online support.
- Free Software Upgrade: Offer free software upgrade whole lifetime
