Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Power Supply: | 380AC 50HZ |
| Condition: | New | Weight: | 2500KG |
| Mounting Speed: | 90000cph | Feeders: | 24 |
| Pcb Thickness: | 0.5~5mm | ||
| High Light: | separate placing LED Bulb Making Machine,MARK camera LED Bulb Making Machine,LED Light Pick And Place Machine SIRA |
||

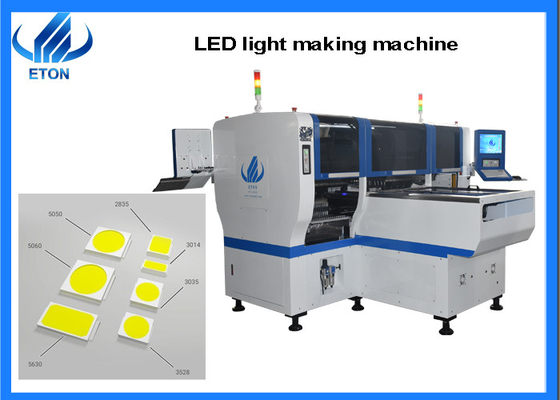

24 heads 90000 CPH LED Bulb Making Machine With Multifunctional
Product Description

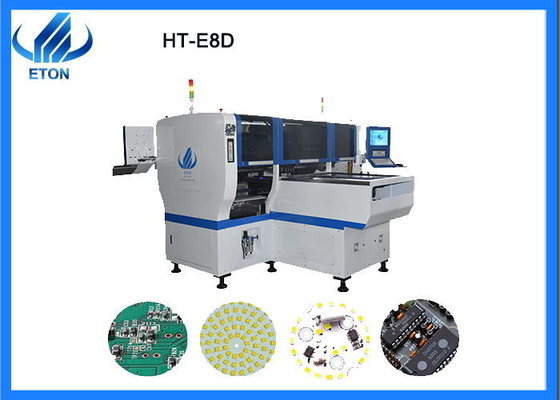

l HT-E8D-1200 is a dual-mode magnetic multifunctional high-speed LED SMT mounter.
l The dual-mode group of this model is controlled by two systems, which means that two PCB boards can be produced at the same time.
l Magnetic levitation linear motor is adopted. Compared with the servo motor used in most products on the market, this one has longer service life, higher precision and better mounting effect.

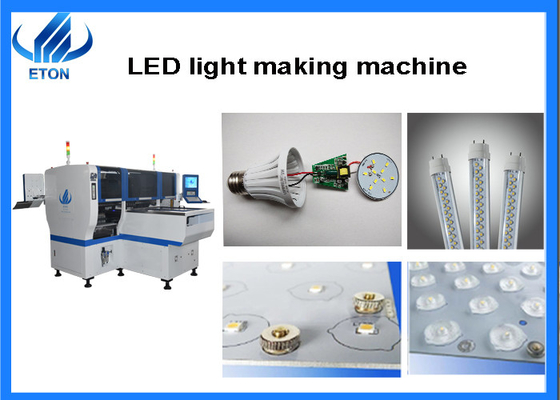

l Multi function LED SMT mounter means that this machine is a universal machine, which can be applied to a variety of different LED lamps, such as LED bulb, DOB bulb, street lamp, down lamp, ceiling lamp, panel lamp, lamp tube, lamp strip, lamp strip, etc. it can also produce LED lens, LED display screen and driver.
Parameter
| Product name | LED SMT mounter |
| Product model | HT-E8D-1200 |
| Length | 3150mm |
| Width | 2250mm |
| Height | 1650mm |
| Total weight | 2500kg |
| PCB size |
Max:1200*300mm Min: 100*100mm |
| PCB thickness | 0.5-5mm |
| PCB clamping | Adjustable pressure pneumatic |
| Mounting mode | Group picking and separate placing ,separate to pick and separate to stick |
| Feeding way | Electric feeder with double motor |
Details
Ø MARK camera:Perform the installation procedure for the PCB board by scanning the mark point as a benchmark.
Ø Flight identification camera: Take photos of components taken by the mounting head of the LED SMT mounter, compare the mounting procedures made by the previous mark camera, and calculate whether compensation is needed to mount positive components
Ø Linear magnetic levitation motor: The rotor generates a magnetic field through external power connection. The stator itself is a permanent magnet. The interaction between the rotor and the magnetic poles causes the mounting head to repeatedly move.
Our Service
Global Service Office: India·Turkey·Vietnam·Egypt·Pakistan
Professional solutions: Provide professional SMT Full line solutions
Free Warranty: One-year warranty factory service. All parts damaged within the warranty period shall be replaced free of charge
Free Installation: On-site free installation to ensure smooth production.
Free Technical Training: Professional training of operating and maintenance.
Free Technical Support: 7 * 24 technical online support.
Free Software Upgrade: Offer free software upgrade whole lifetime
Related machine
We not only provide the pick and place machine, also provide the smt peripleral equipment, such as Loader machine, Conveyor machine, Stencil printer machine, Reflow oven machine, Unloader machine, Solder paste mixer, Roll to roll led strip light assembly machine ,AOI, SPI, etc
FAQ
Q1: Why should I choose to buy from you instead of from other suppliers?
A:Choosing us has the advantages of products, R & D and technical consultants. We will try our best to help you solve your problems.
Q2: How do you guarantee product quality?
A:We have special departments for the purchase of parts and the control of product quality. Of course, your technical consultant will follow up in the whole process of production to ensure product quality.
