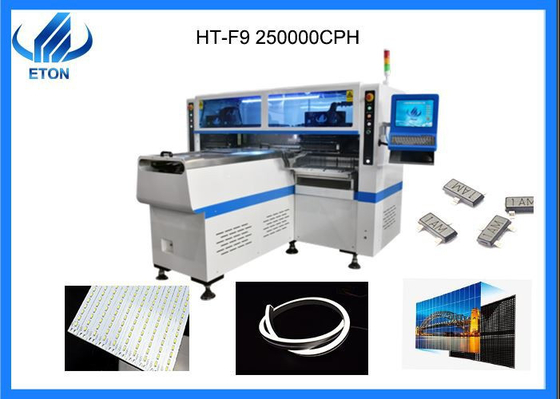

Dual Arm Magnetic Linear Motor SMT Mounter Machine For Strip Light / Panel Light / Tube

Dual Arm Magnetic Linear Motor SMT Mounter Machine For Strip Light / Panel Light / Tube
Dual Arm Magnetic Linear Motor SMT Mounter Machine For Strip Light / Panel Light / Tube Dual Arm Magnetic Linear Motor SMT Mounter Machine For Strip Light / Panel Light / Tube

Large Image :  Dual Arm Magnetic Linear Motor SMT Mounter Machine For Strip Light / Panel Light / Tube

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CCC CE SIRA
Model Number: HT-F9
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: vacuum package,wooden case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 50 sets/month
Contact Now
Detailed Product Description
Warranty: 1 Year Application: 0.5M,1M,strip Light,tube,panel Light
Dimension: 2700*2300*1550mm Weight: 1700KG
Feeders: 68PCS Condition: 100% Original
Power Supply: 380AC 50HZ Mounting Speed: 250000CPH
Highlight:

SMT Mounter For Strip Light

,

SMT Mounter for Panel Light

,

SMT Mounter machine For Tube



250000CPH 68 Heads Dual Arm Magnetic Linear LED High speed SMT Mounter Machine for strip light,panel light,tube

Dual Arm Magnetic Linear LED

High-speed Pick and Place Machine





HT-F9 is the professional high-speed mounter in our company.



HT-F9 has Dual arm magnetic linear LED high speed pick and place machine,

Producing 4 types materials at the same time,

capacity reach 250000 CPH,

realize Efficient production







THREE HIGH:

  • High-Productivity:
  • Producing with 4 types of materials at the same time
  • Capacity reach 250000 CPH
  • High-intelligence:
  • Dual arm four module,17 nozzles for each mounting part,part A/B/C/D can be mounted separately or synchronously.
  • High-precision :
  • Repeat Mounting precision :±0.02 mm (Repeat precision)



Application



Dual Arm Magnetic Linear Motor SMT Mounter Machine For Strip Light / Panel Light / Tube 0



0.6 m, 0.9 m, 1.2 m rigid PCB and

0.5 M, 1 M LED flexible strip.





Dual Arm Magnetic Linear Motor SMT Mounter Machine For Strip Light / Panel Light / Tube 1



Any proportion of LED chip and resistor.





Machine highlights:

  • Calibration automatically,high precision,available for RGB
  • Digital Camera 10 sets :
  • Vision alignment , MARK correction
  • Adopt High-end magnetic linear motor,servo motor



Exclusive patented technology



  • R&D Independently Electronic control
  • R&D Independently software
  • R&D Independently Motion control card module 1 set
  • R&D Independently Group to take and group to mount







The details

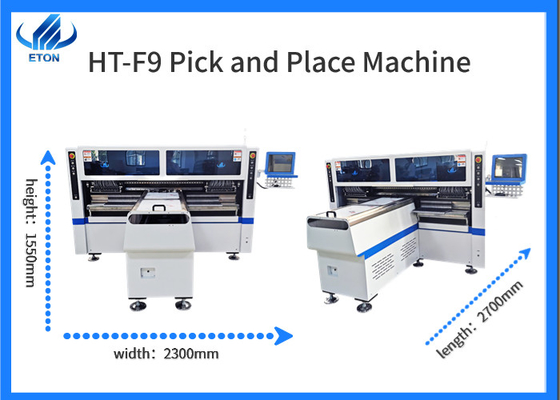

About our machine outline dimension



length 2700mm
Width 2300mm
Height 1550mm
Total weight 1700kg



Our machine of HT-F9 is

group picking and group placing



Size

Max size: 1200mm*330mm

Min size: 100*100mmh
Thickness 0.5--5mm
Mounting Clamping Adjustable pressure pneumatic
Mounting height ≤5mm



About the System



O.S.
System Windows 7
Display Touch screen monitor
Feeding system
No. Of feeders station 68 PCS
No. of head 68 PCS
Feeding way Electric feeder with double motor



About Transmission



Conveyor transmission Max length:1200mm
Transmission speed >500 mm/sec
Transmission direction

Single

(left→right/right→left)
Transmission mode Online drive
Position way Optical





Other



Operating environment 23℃±3℃
Air supply 0.4-0.6mpa (4-6kgf/cm²)150N/min









Packaging and transportation

  • Packaging method:
  • Standard production packaging or customized packaging
  • Port of shipment:Shenzhen
  • Production period:
  • 30 days (≤50days) If it is more than 50, it will be discussed again

Dual Arm Magnetic Linear Motor SMT Mounter Machine For Strip Light / Panel Light / Tube 2





AFTER SALES SERVICE



Global Service Office: India ·Turkey · Vietnam ·Egypt · Pakistan

  • Professional solutions :

Provide professional SMT Full line solutions.

  • Free Warranty:

One-year warranty factory service. All parts damaged within the warranty period shall be replaced free of charge.

  • Free installation-On-site free installation to ensure smooth production.
  • Free Technical Training: Professional training of operating and maintenance.
  • Free Technical Support: 7 *24 technical online support.
  • Free Software Upgrade: Offer free software upgrade whole lifetime
