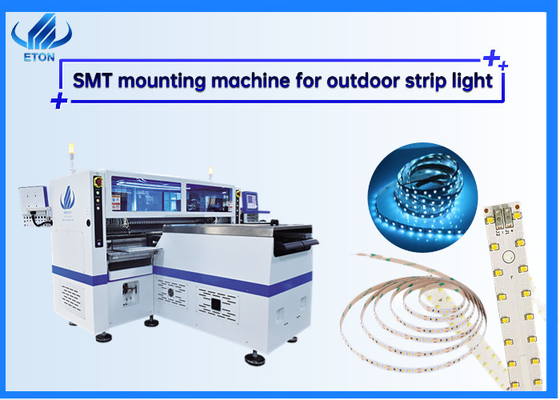

50w CPH SMT Pick And Place Machine For LED Flexible Strip Light

50w CPH SMT Pick And Place Machine For LED Flexible Strip Light
50w CPH SMT Pick And Place Machine For LED Flexible Strip Light 50w CPH SMT Pick And Place Machine For LED Flexible Strip Light

Large Image :  50w CPH SMT Pick And Place Machine For LED Flexible Strip Light

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CCC CE SIRA
Model Number: T9-2S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: vacuum package,wooden case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 50 sets/month
Contact Now
Detailed Product Description
Warranty: 1 Year Application: 0.5M ,1M,5M,10M,50M,100M,500Mstrip Light
Dimension: 3454*3035*1770mm Weight: 3100KG
Mounting Speed: 500000CPH Feeders: 136PCS
Condition: 100% Original Power Supply: 380AC 50HZ
High Light:

50w CPH SMT Pick And Place Machine

,

Flexible Strips SMT Chip Mounting Machine

,

Strip Light SMT Chip Mounting Machine

SMT Pick And Place Machine For LED Flexible Strip Light



product-433-309





The details



We can customize the production management MES system including your requirements.



About our machine outline dimension

length 3454mm
Width 3035mm
Height 1777mm
Total weight 3100kg

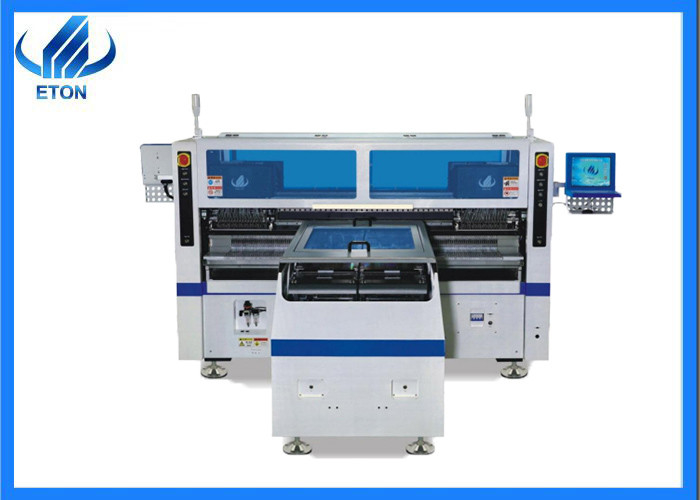

Our machine of T9-2S is

group picking and group placing



Size 250(±10)mm * any length
Thickness 0.1--0.5mm
Mounting Clamping

Vacuum adsorption,cylinder clamping,

track width adjustable
Mounting mode Double rail+Four groups of placement heads
Mounting height ≤5mm



About the System



O.S.
System Windows 7
Display LED display
Feeding system
No. Of feeders station

Double side:136 PCS

Single side:68 PCS
No. of head

Double side:136 PCS

Single side:68 PCS
Feed way Intelligent electric feeder with double motor



About Transmission



Conveyor transmission Max length:1000mm
Transmission speed >500 mm/sec
Transmission direction

Single

(left→right/right→left)
Transmission mode Online drive
Position way Optical



Other



Operating environment 23℃±3℃
Air supply 0.4-0.6mpa (4-6kgf/cm²)150N/min







Main process flow of SMT



  • What are the elements of the SMT placement machine placing process?
  • Printing solder paste: Use wire mesh to leak solder paste onto PCB pads in preparation for component welding. The equipment required for this process is a solder paste printing machine, which is divided into fully automatic and semi-automatic.



  • Mounting: The equipment required for accurately installing surface mounted components to their corresponding fixed positions on the PCB is a placement machine.



  • Furnace welding:The purpose is to melt the solder paste so that the components on its surface can be combined with the PCB board. The required equipment is a reflow oven.







AFTER SALES SERVICE



Global Service Office: India ·Turkey · Vietnam ·Egypt · Pakistan

  • Professional solutions :

Provide professional SMT Full line solutions.

  • Free Warranty:

One-year warranty factory service. All parts damaged within the warranty period shall be replaced free of charge.

  • Free installation-On-site free installation to ensure smooth production.
  • Free Technical Training: Professional training of operating and maintenance.
  • Free Technical Support: 7 *24 technical online support.
  • Free Software Upgrade: Offer free software upgrade whole lifetime









PAYMENT



  • Standard payment terms: 100% T/T before shipping



  • Online trade assurance order, all is up to you.



  • More payment terms could be provided (T/T, PAYPAL, western UNION)





SHIPPING



It takes about 3 working days to arrive your address by DHL, TNT, FEDEX. And it take about 25-35 workdays to arrive your address by sea.

Professional goods shipping forwarder.





EXHIBOTION



Foreign exhibition:India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition,Pakistan Exhibition, etc.

Domestic exhibition:Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED Light Exhibition,etc.

product-554-152
