Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | SMT Pick And Place Machine |
|---|---|---|---|
| Application: | SMT Production Line | Power Supply: | 380AC 50HZ |
| Condition: | New | Mounting Speed: | 250000CPH |
| Dimension: | 3100*2300*1550mm | Feeders: | 68 |
| Pcb Thickness: | 0.5~1.5mm | ||
| High Light: | 68 Head LED Pick And Place Machine,250000CPH LED Strip Mounter,SMT Line LED Strip Mounter |
||
Product description

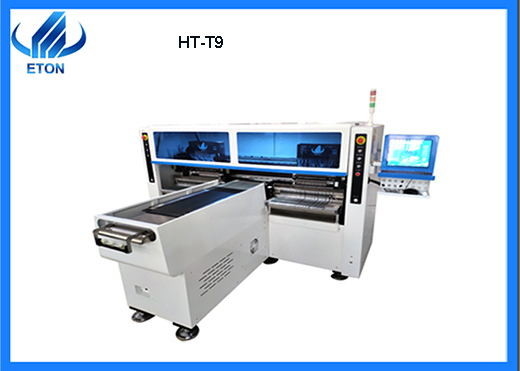

Mounting machine HT-T9 with dual arm magnetic linear,producing 4 types materials at the same time capacity reach 250000CPH. Able to produce flexible light belt products of any length at ultra high speed and roll to roll, such as 0.5m, 1m, 5m, 10m, 50m, 100m, 500m, etc.
Feature Description
1,Mounting machine is dual arm four module,17 nozzles for each mounting part,part A or part B can be mounted separately or synchronously.
2,Calibration automatically,high precision,available for RGB.
3,Unique design components leaking detection and individual component refill function.
4,Intelligent electric feeder,supporting high speed mounting machine series
5,Flight recognition camera,no pause to detect the presence and absence of component,component adsorption state,prevent placement errors.
6,The clamping rod is driven by the air cylinder to correct the material taken by mounting head.
Parameter
| Product name | Mounting machine |
| Model | HT-T9 |
| PCB size(mm) | Max:250*any length |
| PCB thickness | 0.5-1.5mm |
| Mounting component height | ＜＝ 5 mm |
| Mounting precision | ± 0.02 mm |
| No.of camera | 5 PCS |
| No.of nozzles | 68 PCS |
| No.of feeders station | 68 PCS |
| Components | LED 3014/3020/3528/5050 and resistor, capacitors,bridge rectifiers. |
| Feeding way | Electric feeder with double motor |
Our Service
Global Service Office: India·Turkey·Vietnam·Egypt·Pakistan
Professional solutions: Provide professional SMT Full line solutions
Free Warranty: One-year warranty factory service. All parts damaged within the warranty period shall be replaced free of charge
Free Installation: On-site free installation to ensure smooth production.
Free Technical Training: Professional training of operating and maintenance.
Free Technical Support: 7 * 24 technical online support.
Free Software Upgrade: Offer free software upgrade whole lifetime
Exhibition
Our company go to many places to participate in the exhibition.
Foreign exhibition: India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc.
Domestic exhibition:Guangzhou international lighting Exhibition, Shanghai electronica Exhibition, Chongqing LED Light Exhibition,etc.
FAQ
1. do you provide engineers service?
Yes, of course. We have local engineers and office in India, Egypt etc, Who can provide free training, debug and installation door to door timely.
2. How long is the warranty period ?
Provide one year warranty period shall be replaced free of charge when All parts damaged
3. Is the cost of feeders being included the machine cost?
Feeders need to be purchased separately according to the size of the components, which is not included in the price of the machine.
4. Do you provide personal customization?
Yes, of course. contact the sales specialist to customize the equipment for you.
5. How about the software ?
Our software is R&D independently by ourselves.
