Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Application: | LED Bulbs ,downlight, Street Light,driver |
|---|---|---|---|
| Dimension: | 2550*1650*1550mm | Weight: | 1700KG |
| Power Supply: | 380AC 50HZ | Mounting Speed: | 45000CPH |
| Condition: | 100% Original | Feeders: | 28 PCS |
| High Light: | Mark Correction LED Pick And Place Machine,Mark Correction SMT mounter machine,Flight Identification Camera SMT mounter |
||
Mark correction LED pick and place machine Flight identification camera high speed
The details
About our machine outline dimension
| length | 2550mm |
| Width | 1650mm |
| Height | 1550mm |
| Total weight | 1700kg |
Our machine of HT-E8S is Single module
| Size |
Max size: 1200mm*500mm Min size: 100*100mm |
| Thickness | 0.5--5mm |
| Mounting Clamping | Adjustable pressure pneumatic |
| Mounting mode | Group picking and separately placing,Separately picking and separately placing |
| Mounting height | <15mm(Automatic Changing) |
| Mounting speed | 45000 CPH |
About the System
| O.S. | |
| System | Windows 7 |
| Display | Touch screen monitor |
| Input device | Keyboard, mouse |
| Feeding system | |
| No. Of feeders station | 28 PCS single module |
| No. of head | 12 PCS single module |
About Transmission
| Conveyor transmission | Max length:1200mm |
| Transmission speed | ≤1000mm/sec |
| Transmission direction | Standard:Both direction(option) |
| Transmission mode | Auto Online drive |
Product introduce

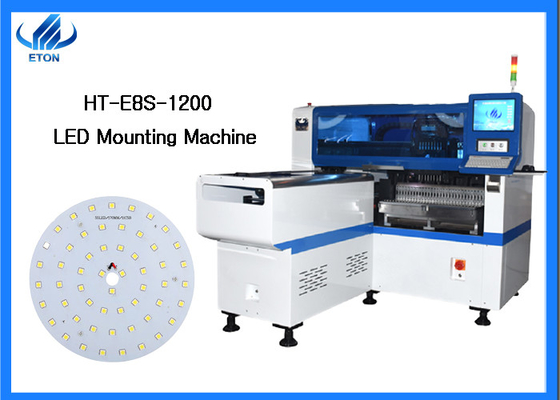

HT-E8S-1200 is a machine designed and produced by ETON with an optimum production capacity of 45000 CPH. This machine can mount large special-shaped components, such as lens, equipped with flight identification camera and Mark camera. It is suitable for mounting linear bulb, electric board ,driving, etc.
Feature
1,The x-axis enters and exits the PCB board and is pasted while entering and leaving. It adopts linear motor, servo motor and stepping motor, which has higher precision and longer service life.
2,Mark camera identification, scan the reference point of PCB board to prepare for the preparation of mounting program, and flight identification camera identifies whether there is material leakage, so as to ensure the high accuracy of mounting.
3,The single-mode group has 12 suction nozzles and 28 feeders, each head is controlled by a servo motor, The two work together. PCB boards with different angles can be mounted, such as the circular state of bulbs
Exclusive patented technology
Electronic feeder feeding system
Vision alignment flight identification,Mark correction
Non-stop material re-loading function
Auto-optimization after coordinates generated,etc
EXHIBOTION
Foreign exhibition:India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition,Pakistan Exhibition, etc.
Domestic exhibition:Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED Light Exhibition,etc.
After sales service
maintenance period:1 year
Visit customers regularly and gather information
Provide latest information about technology and equipment
