Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Application: | LED Bulbs ,downlight, Street Light,driver |
|---|---|---|---|
| Dimension: | 3150*2250*1650mm | Weight: | 2500 KG |
| Feeders: | 48 PCS | Condition: | 100% Original |
| Mounting Speed: | 90000CPH | Power Supply: | 380AC 50HZ |
| High Light: | LED Street Light SMT Mounter,90000 CPH LED SMT Mounter,SMT Street Light Assembly Machine |
||

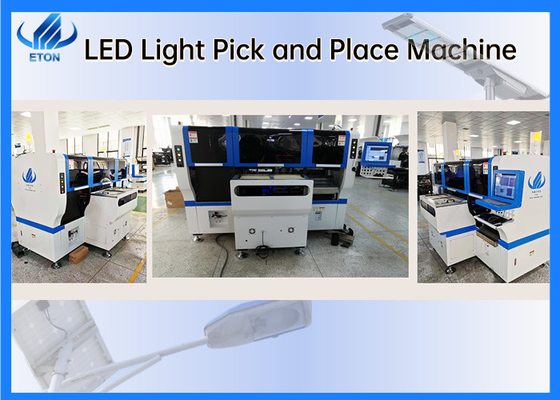

LED SMT mounter street light assembly machine
Product Description

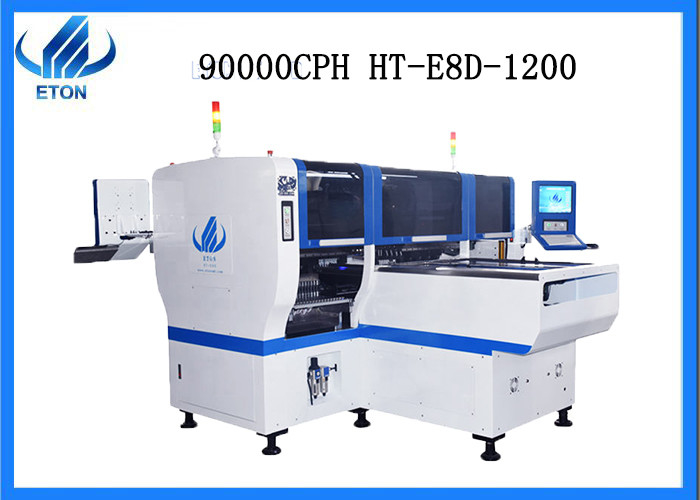

HT-E8D-1200 is a dual-mode magnetic multifunctional high-speed LED SMT mounter.
The dual-mode group of this model is controlled by two systems, which means that two PCB boards can be produced at the same time.
Magnetic levitation linear motor is adopted. Compared with the servo motor used in most products on the market, this one has longer service life, higher precision and better mounting effect.
Multi function LED SMT mounter means that this machine is a universal machine, which can be applied to a variety of different LED lamps, such as LED bulb, DOB bulb, street lamp, down lamp, ceiling lamp, panel lamp, lamp tube, lamp strip, lamp strip, etc. it can also produce LED lens, LED display screen and driver.
The details
About our machine outline dimension
| length | 3150mm |
| Width | 2250mm |
| Height | 1650mm |
| Total weight | 2500kg |
Our machine of HT-E8D is Double module
| Size |
Max size: 1200mm*300mm Min size: 100*100mm |
| Thickness | 0.5--5mm |
| Mounting Clamping | Adjustable pressure pneumatic |
| Mounting mode | Group picking and separately placing,Separately picking and separately placing |
| Mounting height | <15mm(Automatic Changing) |
| Mounting speed | 90000 CPH |
About the System
| O.S. | |
| System | Windows 7 |
| Display | Touch screen monitor |
| Input device | Keyboard, mouse |
| Feeding system | |
| No. Of feeders station | 48 PCS |
| No. of head | 24 PCS |
About Transmission
| Conveyor transmission | Max length:1200mm |
| Transmission speed | >1000mm/sec |
| Transmission direction | Both direction(option) |
| Transmission mode | Auto Online drive |
Mounting appliance
SMT surface placement machine mounting components: LED chips, capacitors, resistors , IC, shaped components, etc.
Appliance: power driver, electric board, lens, DOB, bulb linear bulb, household appliance, etc.
Feature Description
The pick and place machine visual recognition system is equipped with four sets of imported cameras, one for mark correction and the other for flight visual recognition alignment. The four cameras cooperate with each other, which can not only make the program of mounting PCB on this basis, but also automatically identify and replenish materials.
While producing a variety of PCBA, it can also mount lenses, IC and various special-shaped components.The minimum mounting components range is 0402, the maximum mounting components range is 15mm, and the maximum width span of the components is 17mm,The production capacity can reach 45000 CPH (The optimum conditions).
Easy maintenance
Before the installation of the linear guide rail, the slider should be oiled. The oiling method of the brand linear guide rail slider we use is very simple: after the linear guide rail is installed, use the oil gun to inject through the nozzle of the linear guide rail slider for at least three times. After the first injection, move the slider of the linear guide rail for a short distance, and then inject oil for the second time, and so on.
EXHIBOTION
Foreign exhibition:India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition,Pakistan Exhibition, etc.
Domestic exhibition:Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED Light Exhibition,etc.
