Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | SMT Pick And Place Machine |
|---|---|---|---|
| Weight: | 2500KG | Power Supply: | 380AC 50HZ |
| Applicable Components: | 0402 | Dimension: | 3150*2250*1650mm |
| Speed: | 90000CPH | Feeder: | 48PCS |
| Condition: | New | Usage: | LED |
| High Light: | DOB Making LED Mounting Machine,LED Mounting Machine Multifunctional,24 Head LED Bulb Making Machine |
||
Product Description

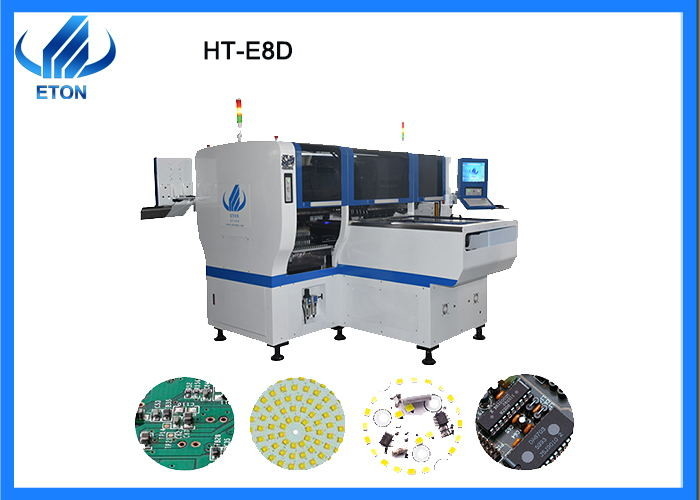

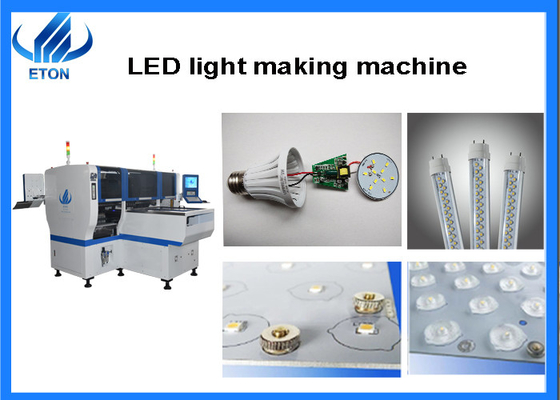

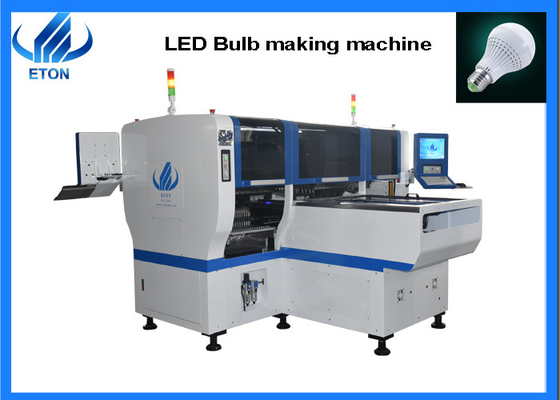

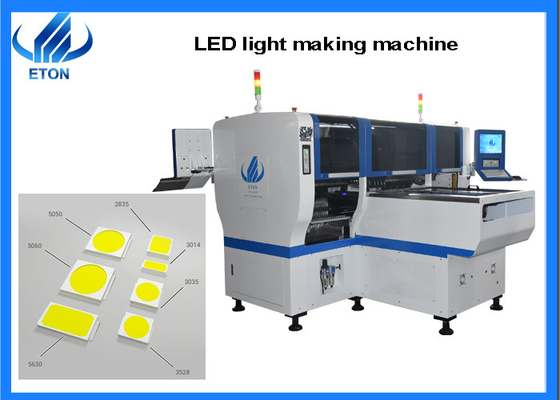

The HT-E8D-1200 is a dual module maglev multi-function high-speed SMT mounter. This model of dual module is controlled by two systems, and each module is controlled by a set of independent programs. The two modules are independent of each other, which means that two PCB can be produced simultaneously and two different products can be manufactured.
Parameter
| Product name | SMT mounter |
| Product model | HT-E8D-1200 |
| Length | 3150mm |
| Width | 2250mm |
| Height | 1650mm |
| Total weight | 2500kg |
| PCB thickness | 0.5-5mm |
| PCB clamping | Adjustable pressure pneumatic |
| PCB size |
Max:1200*300mm Min:100*100mm |
| NO.of camera | 4 sets |
| NO.of nozzles | 24 PCS |
| NO.of feeder station | 48 PCS |
Certificates
Our company has obtained 9 invention patents, 12 software Copyrights and 112 practical patents
Patent number: ZL 2011 2 0237740.9 ZL 20 11 2 0334606.0
ZL 2012 2 0178869.1 ZL 2012 2 0415505.0
ZL 2012 2 0415044.7 ZL 2012 2 0415356.8
ZL 2012 2 0415061.0
Company

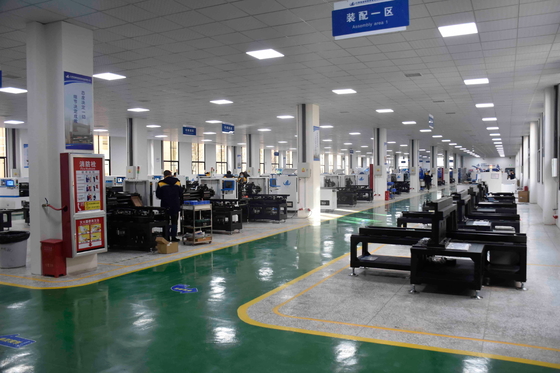

Shenzhen Eton Automation Equipment co., LTD.is a professional manufacturer of pick and place machine.Our company independently research, development, design and manufacturer a set of high -speed good quality SMT pick and place machine.Eton also has its own industrial park in Jiangxi. We are a powerful company with our own R & D production and sales.And we received a number of patents issued by the state certificate and support. Nowadays, we have served many factories and enjoyed good reputation.
Our advantages
Rich experience in SMT Industry Line. ETON set up more than 10 years, we are leading manufacturer of SMT machine in China.
Our machines are of better quality, more accurate and faster to mount. We also have our own exclusive patented technology such as dual motor electronic Feeder feeding system, flight identification visual alignment, group picking and group placing and so on.
SMT production line
The whole SMT production line machine mainly include Loader machine, full automatic stencil printer, pick and place machine, conveyor , reflow oven, unloader machine
Stencil printer:Put the solder paste on the PCB board
Conveyor: transmission the PCB board to pick and place machine
Pick and place machine:mounting the components on the PCB board
reflow oven:heating the PCB board
FAQ
1. do you provide engineers service?
Yes, of course. We have local engineers and office in India, Egypt etc, Who can provide free training, debug and installation door to door timely.
2. How long is the warranty period ?
Provide one year warranty period shall be replaced free of charge when All parts damaged
3. Is the cost of feeders being included the machine cost?
Feeders need to be purchased separately according to the size of the components, which is not included in the price of the machine.
4. Do you provide personal customization?
Yes, of course. contact the sales specialist to customize the equipment for you.
5. How about the software ?
Our software is R&D independently by ourselves.
